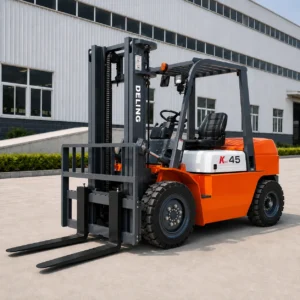

K-45 4.5 Ton Diesel Forklift
The K-45 is a 4.5 ton diesel forklift for factory transfer, warehouse loading, logistics yards and medium-to-heavy industrial materials.
Capacity: 4.5 Ton / 4500 kg
View Details
Diesel Forklifts
Diesel
H Series 4.5–5 Ton Diesel Forklift
Series: CPC45 / CPC50 H Series
Heavy-duty H Series diesel forklifts in 4.5 and 5 ton capacities with hydraulic steering, robust chassis and configurable transmission and engine options.
Rated Capacity
4.5–5.0 Ton
Lift Height
Custom mast heights available; confirm the required lift height
Fork Length
1070 mm
Mast Type
Duplex Mast, Triplex Mast, Full Free Mast
Tire Type
Pneumatic Tire, Solid Tire
Quanchai 4C6-85U32 diesel engine reference configuration. Hydraulic or mechanical transmission options may be available subject to final quotation.
Application Scenarios
Construction Site Material Handling
Container Loading & Unloading
Factory Material Transfer
Warehouse Pallet Handling
Factory Direct
Export Support
Spare Parts Support
Reply Within 12h
Product Overview

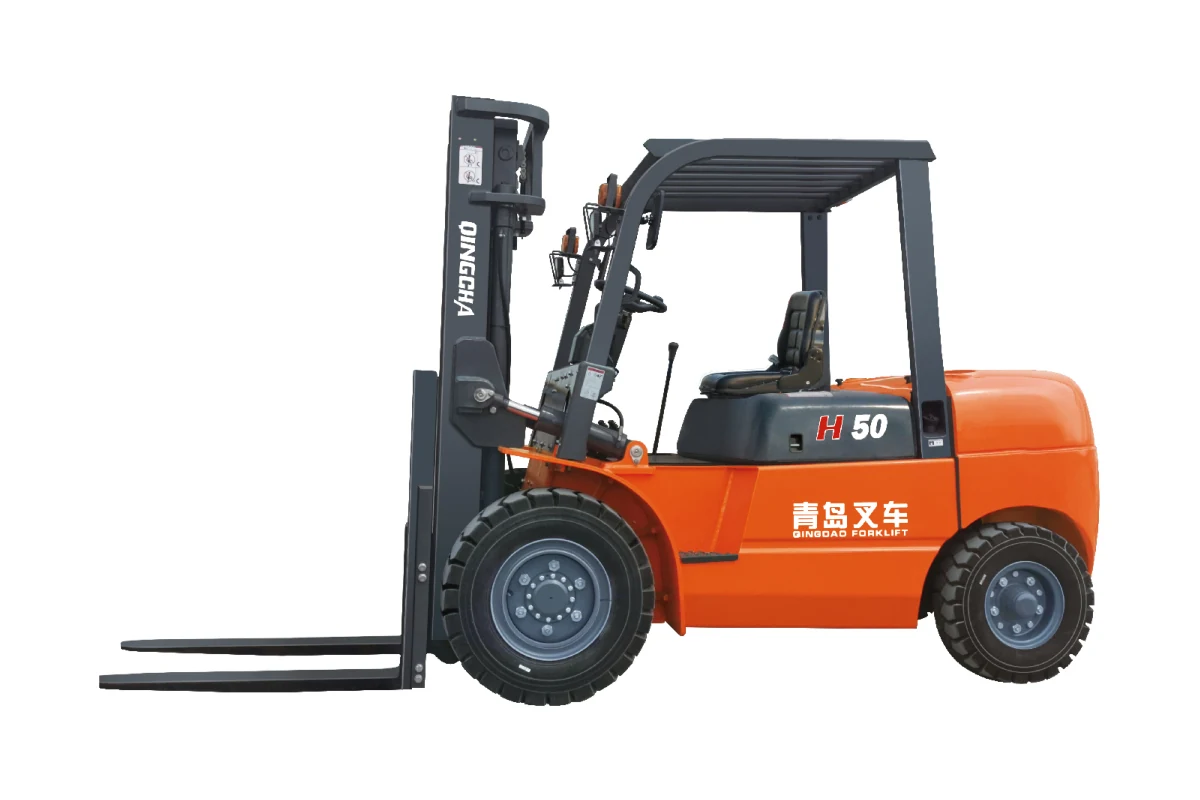

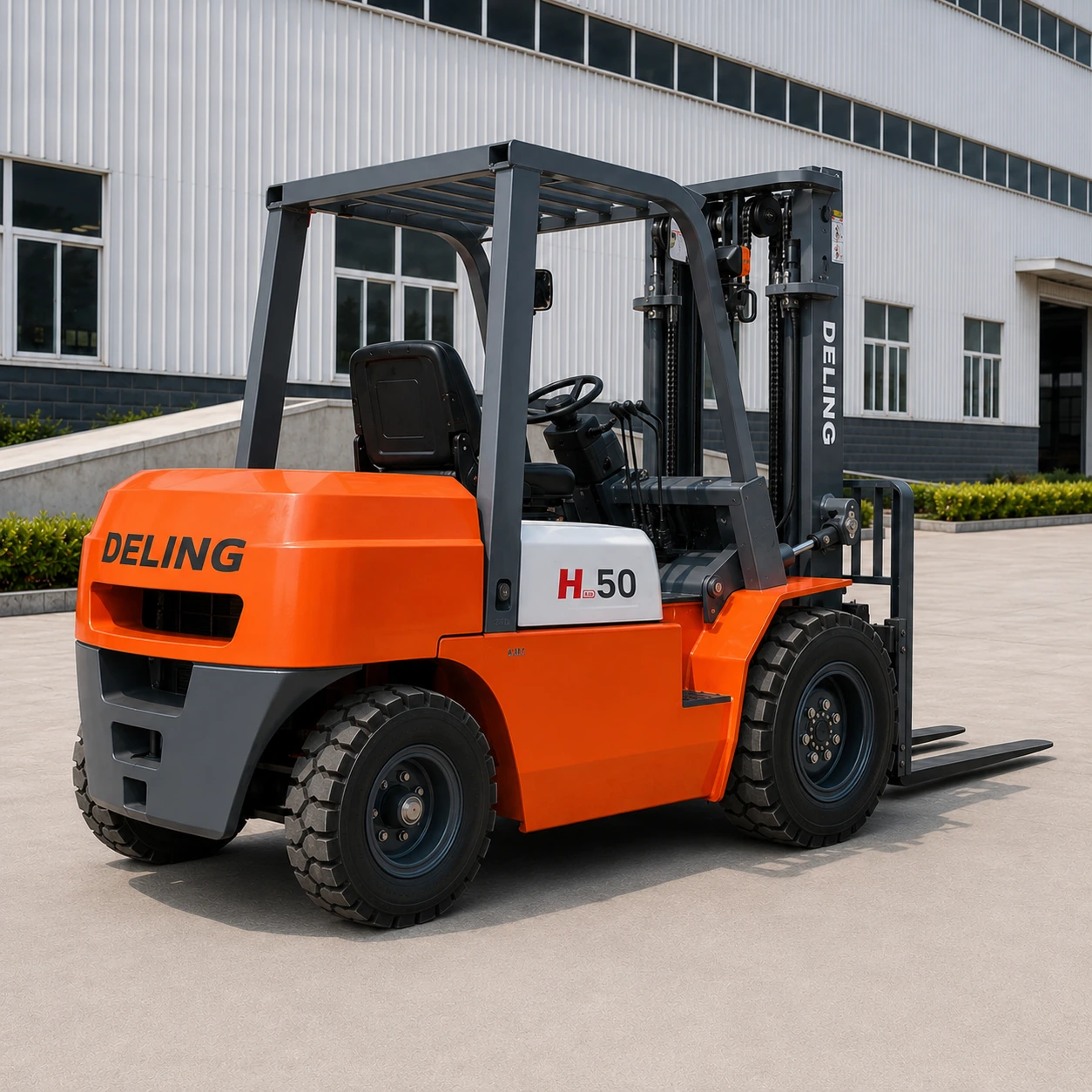

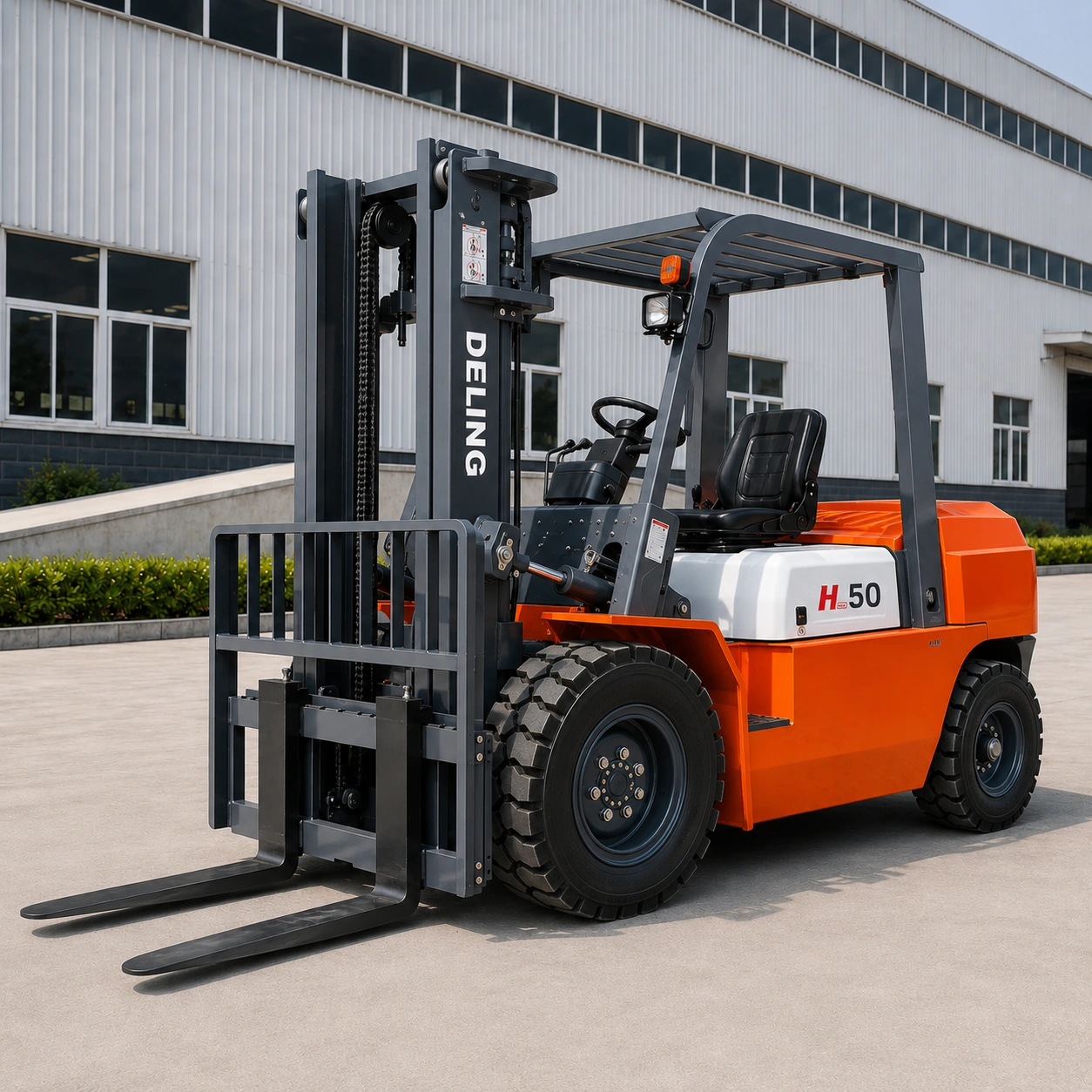

H Series 4.5–5 Ton Diesel Forklift
H Series 4.5–5 Ton Diesel Forklift
The H Series 4.5–5 Ton Diesel Forklift range uses a heavier chassis platform for demanding industrial work. Full hydraulic steering, a wide-view mast and strong engine and transmission options support stable handling in factories, logistics yards and building-material operations.Available Models
This product page covers CPC45, CPC50. Select the required model according to the load capacity, load center, working aisle, fork size and engine requirements.Key Features
- Full Hydraulic Steering: The steering system supports a practical turning radius, responsive control and reliable operation.
- High-Position Air Intake: The intake system helps keep the engine away from dust and supports service life.
- Low Instrument Panel and Wide-View Mast: The operator layout is designed to improve forward visibility and awareness.
- Digital Instrument Interface: A clear display supports accurate monitoring of forklift condition.
- Transmission Choice: Hydraulic and mechanical transmission configurations can be selected according to the working requirement.
- Multiple Engine Options: Engine and emission configurations can be matched to the destination market.
- Heavy-Duty Components: The manufacturing process and component selection are intended for demanding daily duty.
- Reduced Front Overhang: The chassis layout helps reduce front-axle load under working conditions and supports component life.
Typical Applications
- Factory material transfer and production-line support
- Warehouse pallet handling and loading-bay work
- Truck and container loading or unloading

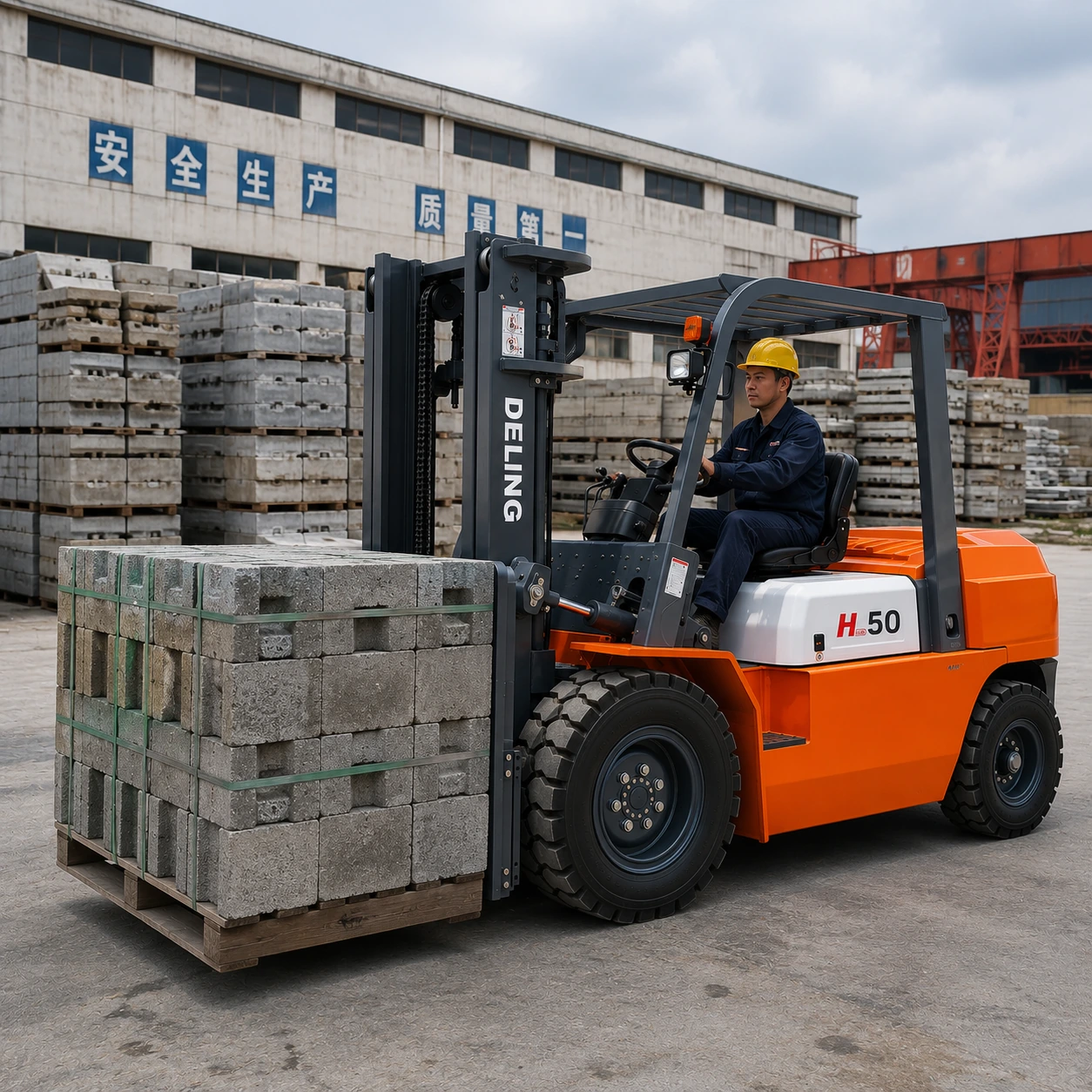

- Industrial yards, distribution centers and building-material handling
Optional Configurations
- Side Shifter: Hydraulic side-shift attachment for faster and more accurate pallet positioning.
- Fork Positioner: Hydraulic fork-spacing adjustment for different pallet and load widths.
- Duplex, Triplex or Full-Free Mast: Mast configuration and lifting height can be selected according to the warehouse, container and stacking requirements.
- Solid Tires: Puncture-resistant tire option for intensive industrial yards and sites with sharp debris.
- Semi-Enclosed or Fully Enclosed Cab: Weather-protection options for rain, dust, cold and outdoor operation.
- Custom Fork Length: Fork length and section can be configured according to the load dimensions and working conditions.
- Engine and Emission Configuration: Engine model and emission configuration are confirmed according to the destination market and quotation.
- Hydraulic or Mechanical Transmission: Transmission type can be selected according to operating preference and destination-market requirements.
Quotation Information
Please specify the required model, rated load, lifting height, fork length, tire type, attachment, engine or emission requirement and destination country. Final dimensions and configuration should be confirmed in the formal quotation. Technical values on this page are based on the supplied product catalog. Final specifications may vary with the selected mast, attachment, tire, engine and destination-market configuration.Quick Info
- Model Series
- CPC45 / CPC50 H Series
- Rated Capacity
- 4.5–5.0 Ton
- Lift Height
- Custom mast heights available; confirm the required lift height
- Fork Length
- 1070 mm
- Mast Type
- Duplex Mast, Triplex Mast, Full Free Mast
- Tire Type
- Pneumatic Tire, Solid Tire
Technical Data
Technical Specifications
| Specification | Value | Unit |
|---|---|---|
| Rated Capacity | CPC45: 4500; CPC50: 5000 | kg |
| Load Center Distance | CPC45: 500; CPC50: 500 | mm |
| Free Lift Height | CPC45: 160; CPC50: 160 | mm |
| Overall Length (With Fork / Without Fork) | CPC45: 4190 / 3120; CPC50: 4190 / 3120 | mm |
| Width | CPC45: 1480; CPC50: 1480 | mm |
| Overhead Guard Height | CPC45: 2240; CPC50: 2240 | mm |
| Wheelbase | CPC45: 2000; CPC50: 2000 | mm |
| Minimum Ground Clearance | CPC45: 175; CPC50: 175 | mm |
| Mast Tilt (Front / Rear) | CPC45: 6 / 12; CPC50: 6 / 12 | degree |
| Front Tire | CPC45: 300-15-20PR; CPC50: 300-15-20PR | |
| Rear Tire | CPC45: 7.00-12-12PR; CPC50: 7.00-12-12PR | |
| Minimum Turning Radius | CPC45: 2900; CPC50: 2900 | mm |
| Minimum Right-Angle Aisle Width | CPC45: 4960; CPC50: 4960 | mm |
| Fork Size | CPC45: 1070×150×55; CPC50: 1070×150×55 | mm |
| Maximum Working Speed (Full Load / No Load) | CPC45: 18 / 19; CPC50: 18 / 19 | km/h |
| Maximum Lifting Speed (Full Load / No Load) | CPC45: 400 / 380; CPC50: 400 / 380 | mm/s |
| Maximum Gradeability (Full Load / No Load) | CPC45: 15 / 20; CPC50: 15 / 20 | % |
| Forklift Weight | CPC45: 6500; CPC50: 6700 | kg |
| Engine Model | CPC45: Quanchai 4C6-85U32; CPC50: Quanchai 4C6-85U32 |
* Specifications may vary. Contact us for customized configurations.
Why Choose This Model
Key Features
01
Full Hydraulic Steering
The steering system supports a practical turning radius, responsive control and reliable operation.
02
High-Position Air Intake
The intake system helps keep the engine away from dust and supports service life.
03
Low Instrument Panel and Wide-View Mast
The operator layout is designed to improve forward visibility and awareness.
04
Digital Instrument Interface
A clear display supports accurate monitoring of forklift condition.
05
Transmission Choice
Hydraulic and mechanical transmission configurations can be selected according to the working requirement.
06
Multiple Engine Options
Engine and emission configurations can be matched to the destination market.
07
Heavy-Duty Components
The manufacturing process and component selection are intended for demanding daily duty.
08
Reduced Front Overhang
The chassis layout helps reduce front-axle load under working conditions and supports component life.
Customization
Optional Configurations
Customize this model to fit your specific working conditions and requirements.
Side Shifter
Hydraulic side-shift attachment for faster and more accurate pallet positioning.
Fork Positioner
Hydraulic fork-spacing adjustment for different pallet and load widths.
Duplex, Triplex or Full-Free Mast
Mast configuration and lifting height can be selected according to the warehouse, container and stacking requirements.
Solid Tires
Puncture-resistant tire option for intensive industrial yards and sites with sharp debris.
Semi-Enclosed or Fully Enclosed Cab
Weather-protection options for rain, dust, cold and outdoor operation.
Custom Fork Length
Fork length and section can be configured according to the load dimensions and working conditions.
Engine and Emission Configuration
Engine model and emission configuration are confirmed according to the destination market and quotation.
Hydraulic or Mechanical Transmission
Transmission type can be selected according to operating preference and destination-market requirements.
Common Questions
Frequently Asked Questions
How do I choose the right diesel forklift capacity?
Select a rated capacity above the actual load weight and confirm the load-center distance. Mast height, attachments and long loads can reduce residual capacity, so the final configuration should be checked before ordering.
What mast heights and attachments are available for diesel forklifts?
Common options include duplex, triplex and full-free masts, side shifters, fork positioners, longer forks and enclosed cabs. Availability depends on the selected model and required residual capacity.
Which engine options are available for diesel forklifts?
Engine model and emission configuration depend on the forklift series, destination market and local requirements. The exact engine is confirmed in the formal quotation.
Can diesel forklifts be used indoors?
Diesel forklifts are mainly suited to outdoor or well-ventilated industrial areas. For indoor work, confirm ventilation, emission rules, noise limits, aisle width and mast-clearance requirements.
What information is needed for a diesel forklift quotation?
Please provide the required load capacity, load center, lifting height, fork length, tire type, attachment, engine or emission requirement, operating environment and destination country.
Get a Fast Quote for
H Series 4.5–5 Ton Diesel Forklift
Tell us your working conditions and quantity requirements. Our team will respond within 12 hours with a competitive price and full specification sheet.
Fast Response
We typically reply within 12 hours on business days.
No Obligation
Free quote with full specification and pricing details.
Direct Contact
sales@delingequipment.com · WhatsApp +86 186 3292 9428
Request a Quote
Fill in your requirements and we'll get back to you promptly.
You May Also Like
Related Products
CPCD50 / CPCD60 / CPCD70

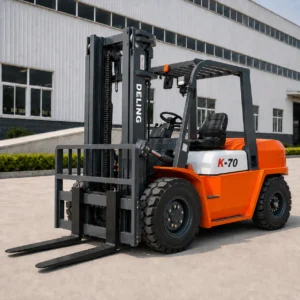

K Series 5–7 Ton Heavy Duty Diesel Forklift
Heavy-duty K Series diesel forklifts in 5, 6 and 7 ton capacities for industrial yards, machinery handling, building materials and demanding logistics operations.
Capacity: 5–7 Ton
View Details
CPC40 / K-40
K-40 4 Ton Diesel Forklift
The Deling K-40 is a 4 ton diesel forklift for factories, warehouses, logistics yards and outdoor loading operations, with configurable mast, tires and attachments.
Capacity: 4.0 Ton / 4000 kg
View Details
CPCD80 / CPCD100

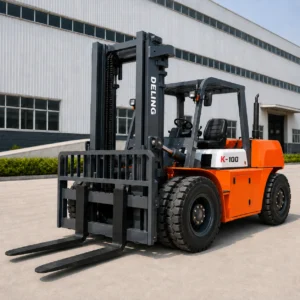

K Series 8–10 Ton Heavy Duty Diesel Forklift
