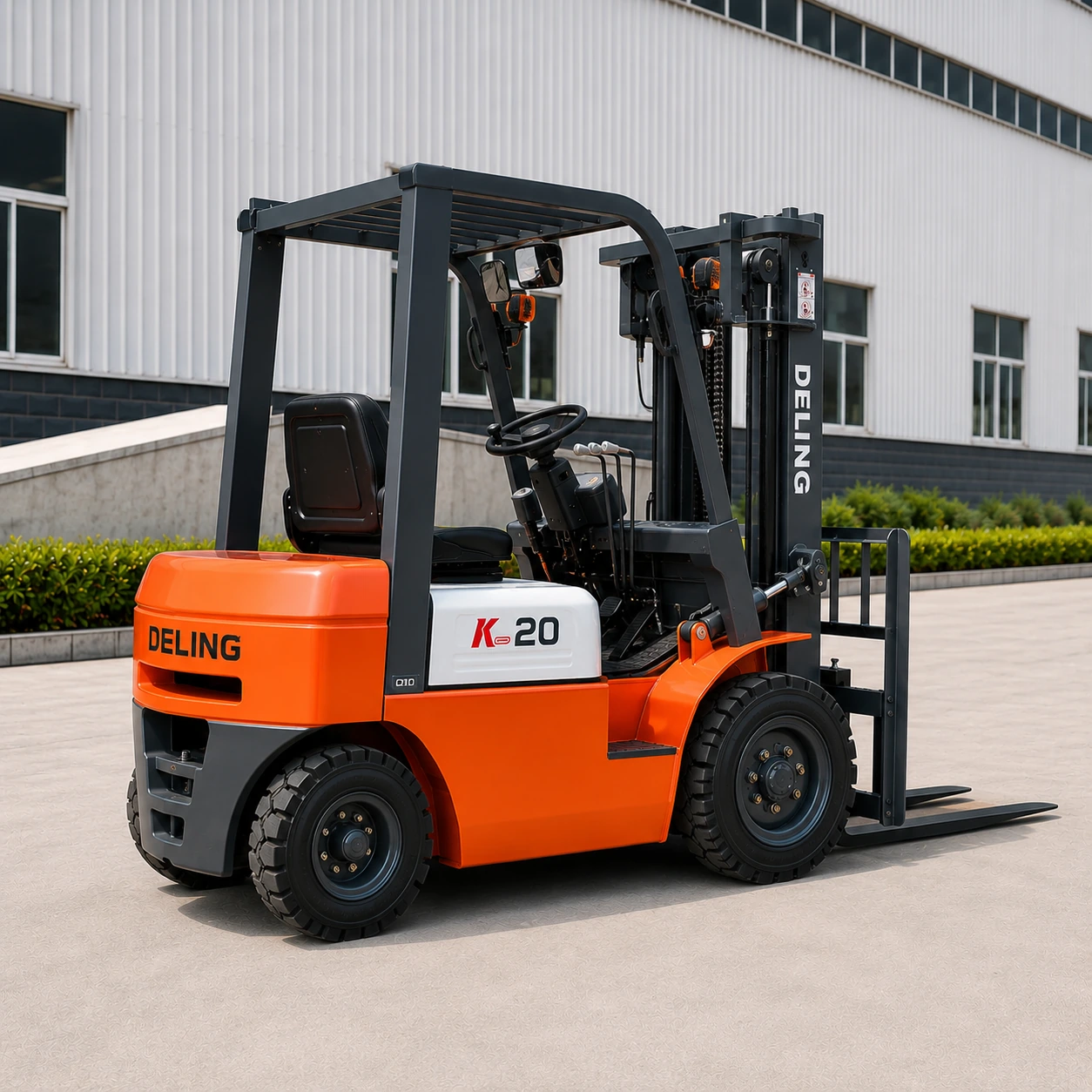

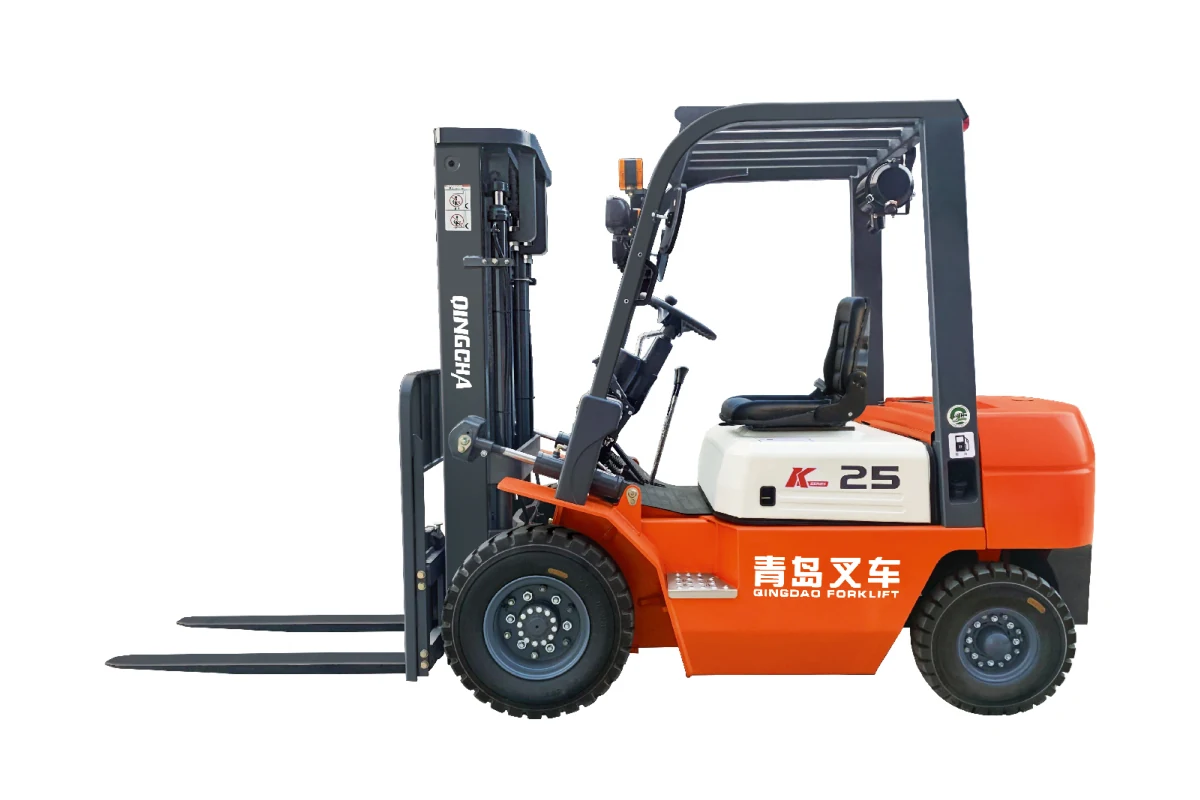

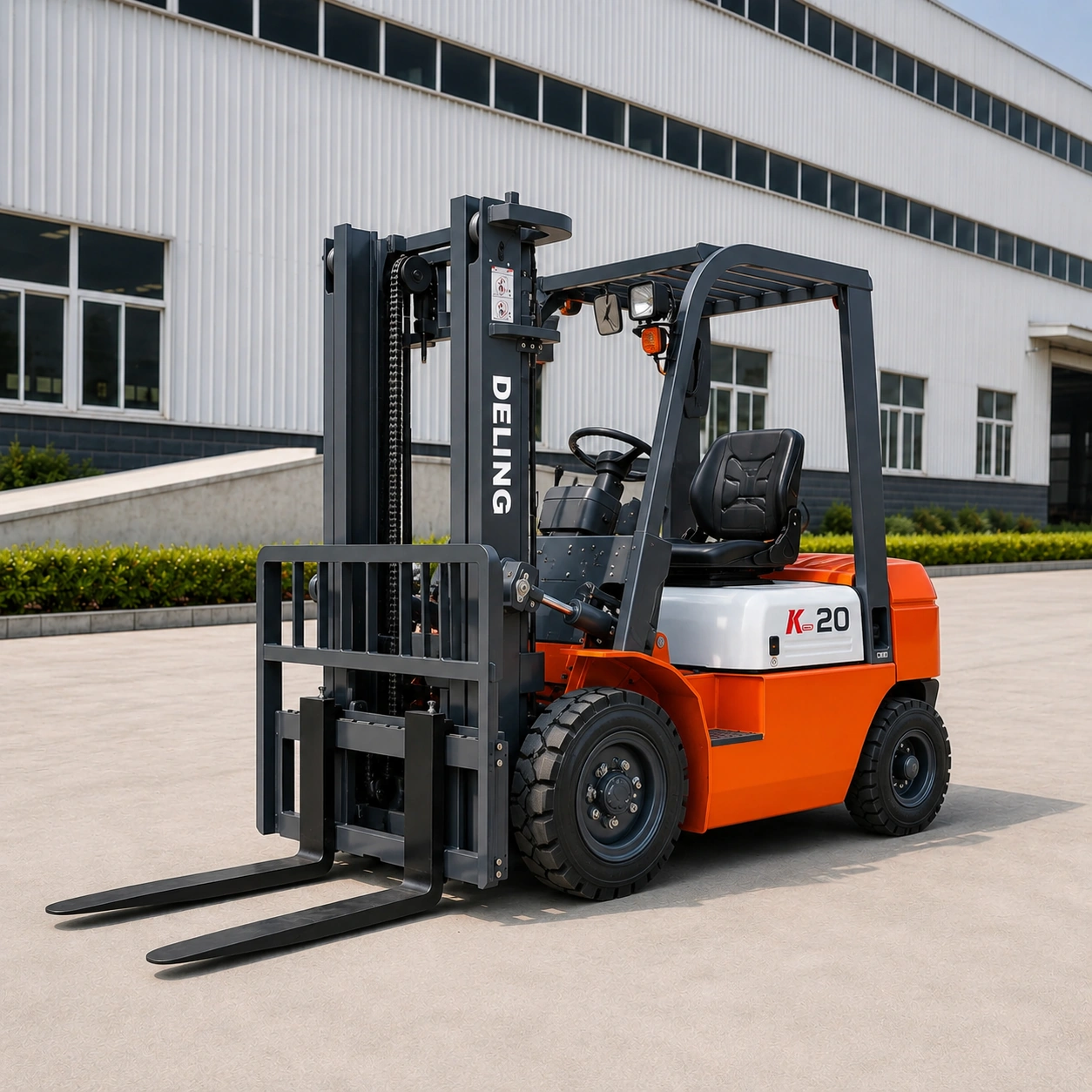

K Series 1.5–2.5 Ton Diesel Forklift

Product Overview

The K Series 1.5–2.5 Ton Diesel Forklift range combines compact dimensions with dependable internal-combustion power. It is suited to factories, warehouses, logistics yards and truck-loading areas where operators need a practical forklift with straightforward maintenance.

Available Models

This product page covers CPC15, CPC20, CPC25. Select the required model according to the load capacity, load center, working aisle, fork size and engine requirements.

Key Features

Compact and Practical Design: A simple, durable body layout supports everyday industrial material handling and easy service access.
Adjustable Steering Column: The steering-wheel adjustment mechanism improves operating comfort and control reliability.
Top-Mounted Air Intake: The large-diameter intake helps keep the engine away from dust and supports engine performance and service life.
Wide-View Mast: The mast structure is designed to give the operator a clearer forward view during pallet engagement and stacking.
Digital Instrument Display: A clear LCD-style instrument interface helps the operator monitor forklift status.
Low-Maintenance Steering Axle Option: A cast steering-axle configuration can be supplied according to the selected model and market.

Typical Applications

Factory material transfer and production-line support

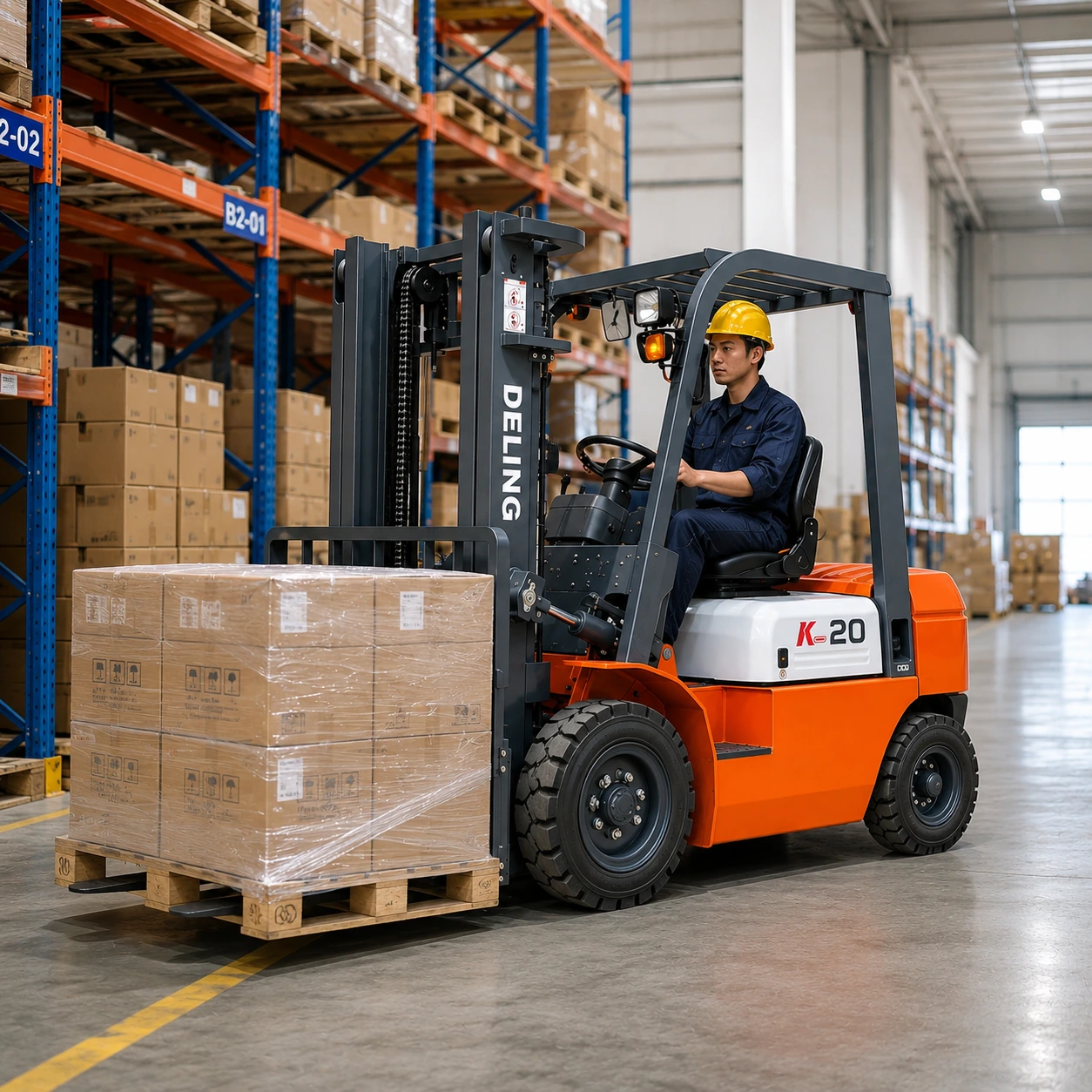

Warehouse pallet handling and loading-bay work
Truck and container loading or unloading
Industrial yards, distribution centers and building-material handling

Optional Configurations

Side Shifter: Hydraulic side-shift attachment for faster and more accurate pallet positioning.
Fork Positioner: Hydraulic fork-spacing adjustment for different pallet and load widths.
Duplex, Triplex or Full-Free Mast: Mast configuration and lifting height can be selected according to the warehouse, container and stacking requirements.
Solid Tires: Puncture-resistant tire option for intensive industrial yards and sites with sharp debris.
Semi-Enclosed or Fully Enclosed Cab: Weather-protection options for rain, dust, cold and outdoor operation.
Custom Fork Length: Fork length and section can be configured according to the load dimensions and working conditions.
Engine and Emission Configuration: Engine model and emission configuration are confirmed according to the destination market and quotation.

Quotation Information

Please specify the required model, rated load, lifting height, fork length, tire type, attachment, engine or emission requirement and destination country. Final dimensions and configuration should be confirmed in the formal quotation. Technical values on this page are based on the supplied product catalog. Final specifications may vary with the selected mast, attachment, tire, engine and destination-market configuration.

Quick Info

Model Series: CPC15 / CPC20 / CPC25
Rated Capacity: 1.5–2.5 Ton
Lift Height: Custom mast heights available; confirm the required lift height
Fork Length: 920–1070 mm
Mast Type: Duplex Mast, Triplex Mast, Full Free Mast
Tire Type: Pneumatic Tire, Solid Tire

Get a Quote

Technical Data

Technical Specifications

Specification	Value	Unit
Rated Capacity	CPC15: 1500; CPC20: 2000; CPC25: 2500	kg
Load Center Distance	CPC15: 500; CPC20: 500; CPC25: 500	mm
Free Lift Height	CPC15: 100; CPC20: 150; CPC25: 150	mm
Overall Length (With Fork / Without Fork)	CPC15: 3180 / 2260; CPC20: 3422 / 2502; CPC25: 3646 / 2576	mm
Width	CPC15: 1090; CPC20: 1170; CPC25: 1170	mm
Overhead Guard Height	CPC15: 2050; CPC20: 2070; CPC25: 2070	mm
Wheelbase	CPC15: 1400; CPC20: 1600; CPC25: 1600	mm
Minimum Ground Clearance	CPC15: 110; CPC20: 110; CPC25: 110	mm
Mast Tilt (Front / Rear)	CPC15: 6 / 12; CPC20: 6 / 12; CPC25: 6 / 12	degree
Front Tire	CPC15: 6.5-10-10PR; CPC20: 7.00×12-12PR; CPC25: 7.00×12-12PR
Rear Tire	CPC15: 5.00-8-10PR; CPC20: 6.00×9-10PR; CPC25: 6.00×9-10PR
Minimum Turning Radius	CPC15: 1950; CPC20: 2170; CPC25: 2240	mm
Minimum Right-Angle Aisle Width	CPC15: 3630; CPC20: 3900; CPC25: 3970	mm
Fork Size	CPC15: 920×100×35; CPC20: 1070×100×45; CPC25: 1070×100×45	mm
Maximum Working Speed (Full Load / No Load)	CPC15: 14 / 15; CPC20: 17 / 19; CPC25: 17 / 19	km/h
Maximum Lifting Speed (Full Load / No Load)	CPC15: 500 / 480; CPC20: 530 / 550; CPC25: 530 / 550	mm/s
Maximum Gradeability (Full Load / No Load)	CPC15: 20 / 21; CPC20: 20 / 21; CPC25: 20 / 21	%
Forklift Weight	CPC15: 2900; CPC20: 3320; CPC25: 3680	kg
Engine Model	CPC15: Quanchai B02-082; CPC20: Quanchai 4C2-50V32 / 4C2-50C41; CPC25: Quanchai 4C2-50V32 / 4C2-50C41

* Specifications may vary. Contact us for customized configurations.

Why Choose This Model

Key Features

01

Compact and Practical Design

A simple, durable body layout supports everyday industrial material handling and easy service access.

02

Adjustable Steering Column

The steering-wheel adjustment mechanism improves operating comfort and control reliability.

03

Top-Mounted Air Intake

The large-diameter intake helps keep the engine away from dust and supports engine performance and service life.

04

Wide-View Mast

The mast structure is designed to give the operator a clearer forward view during pallet engagement and stacking.

05

Digital Instrument Display

A clear LCD-style instrument interface helps the operator monitor forklift status.

06

Low-Maintenance Steering Axle Option

A cast steering-axle configuration can be supplied according to the selected model and market.

Customization

Optional Configurations

Customize this model to fit your specific working conditions and requirements.

Side Shifter

Hydraulic side-shift attachment for faster and more accurate pallet positioning.

Fork Positioner

Hydraulic fork-spacing adjustment for different pallet and load widths.

Duplex, Triplex or Full-Free Mast

Mast configuration and lifting height can be selected according to the warehouse, container and stacking requirements.

Solid Tires

Puncture-resistant tire option for intensive industrial yards and sites with sharp debris.

Semi-Enclosed or Fully Enclosed Cab

Weather-protection options for rain, dust, cold and outdoor operation.

Custom Fork Length

Fork length and section can be configured according to the load dimensions and working conditions.

Engine and Emission Configuration

Engine model and emission configuration are confirmed according to the destination market and quotation.

Ask About Custom Configurations

Common Questions

Frequently Asked Questions

How do I choose the right diesel forklift capacity?

Select a rated capacity above the actual load weight and confirm the load-center distance. Mast height, attachments and long loads can reduce residual capacity, so the final configuration should be checked before ordering.

What mast heights and attachments are available for diesel forklifts?

Common options include duplex, triplex and full-free masts, side shifters, fork positioners, longer forks and enclosed cabs. Availability depends on the selected model and required residual capacity.

Which engine options are available for diesel forklifts?

Engine model and emission configuration depend on the forklift series, destination market and local requirements. The exact engine is confirmed in the formal quotation.

Can diesel forklifts be used indoors?

Diesel forklifts are mainly suited to outdoor or well-ventilated industrial areas. For indoor work, confirm ventilation, emission rules, noise limits, aisle width and mast-clearance requirements.

What information is needed for a diesel forklift quotation?

Please provide the required load capacity, load center, lifting height, fork length, tire type, attachment, engine or emission requirement, operating environment and destination country.
