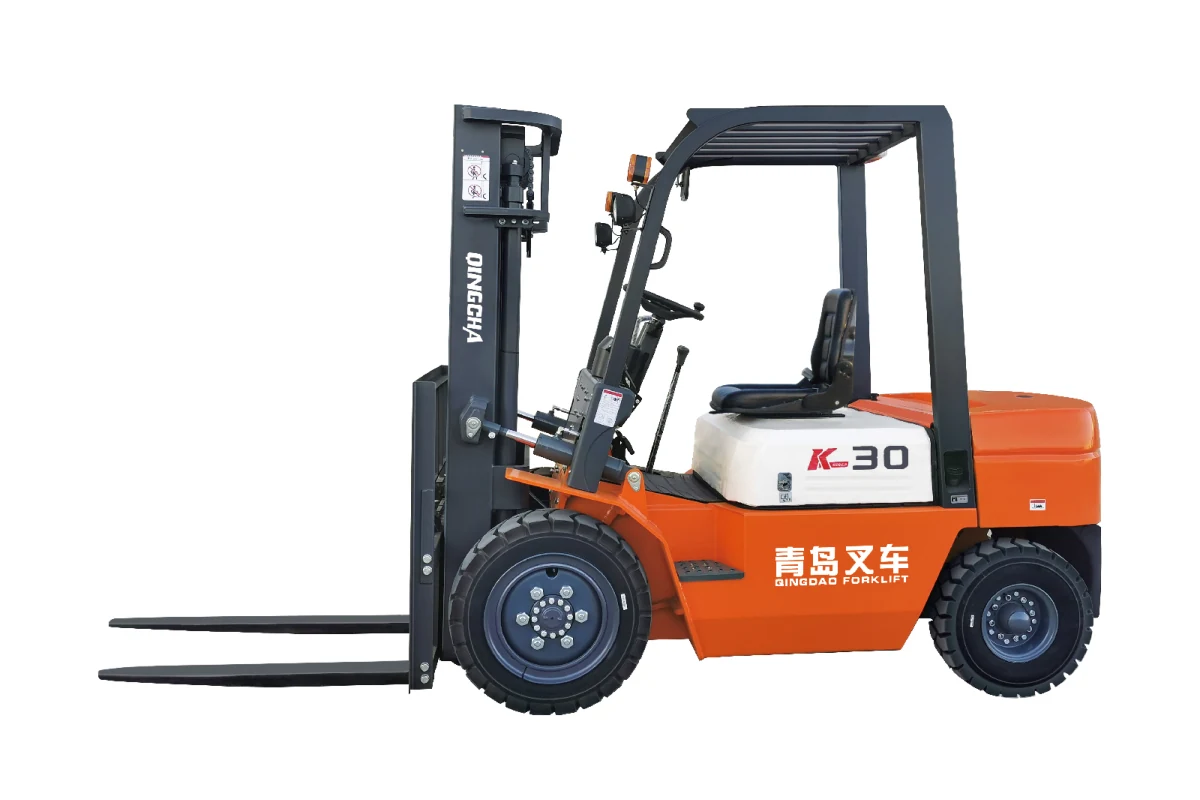

K Series 3.0–3.8 Ton Diesel Forklift

Product Overview

The K Series 3.0–3.8 Ton Diesel Forklift range is designed for medium-duty pallet handling and industrial transfer. The series uses a wide-view mast, practical control layout and durable powertrain configuration for daily work in factories, warehouses and loading yards.

Available Models

This product page covers CPC30, CPC35, CPC38. Select the required model according to the load capacity, load center, working aisle, fork size and engine requirements.

Key Features

Durable Industrial Body: A practical counterbalanced layout supports stable operation and straightforward maintenance.

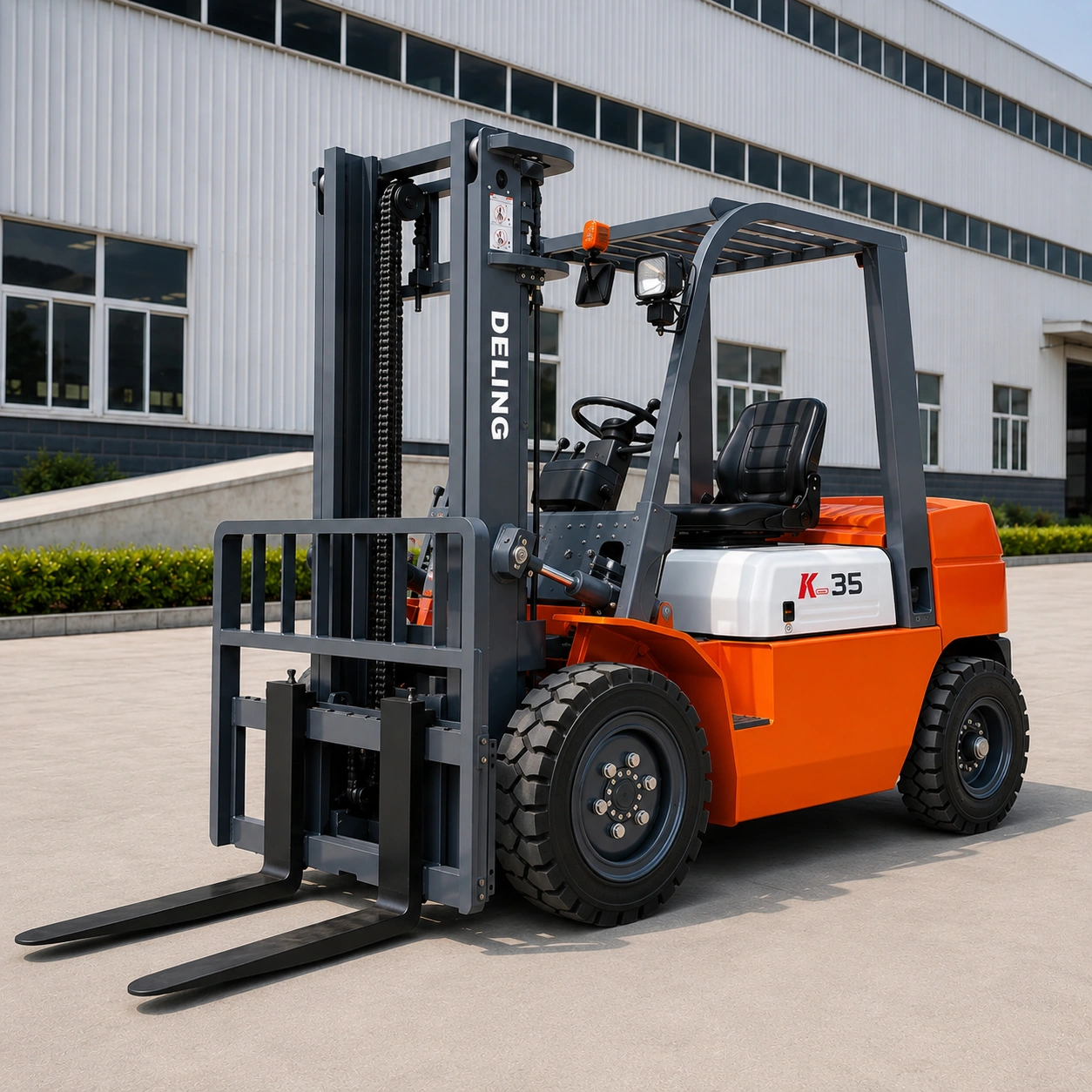

Wide-View Mast: The mast structure helps improve visibility when approaching, lifting and placing loads.
Clear Digital Instrument Panel: A user-friendly display supports accurate monitoring of the forklift operating condition.
Adjustable Steering Column: The steering-column mechanism improves operator comfort and driving-position adjustment.
High-Position Air Intake: The intake layout helps reduce dust exposure around the engine and supports service life.
Optional Cast Steering Axle: A durable steering-axle option can reduce later maintenance requirements.

Typical Applications

Factory material transfer and production-line support
Warehouse pallet handling and loading-bay work

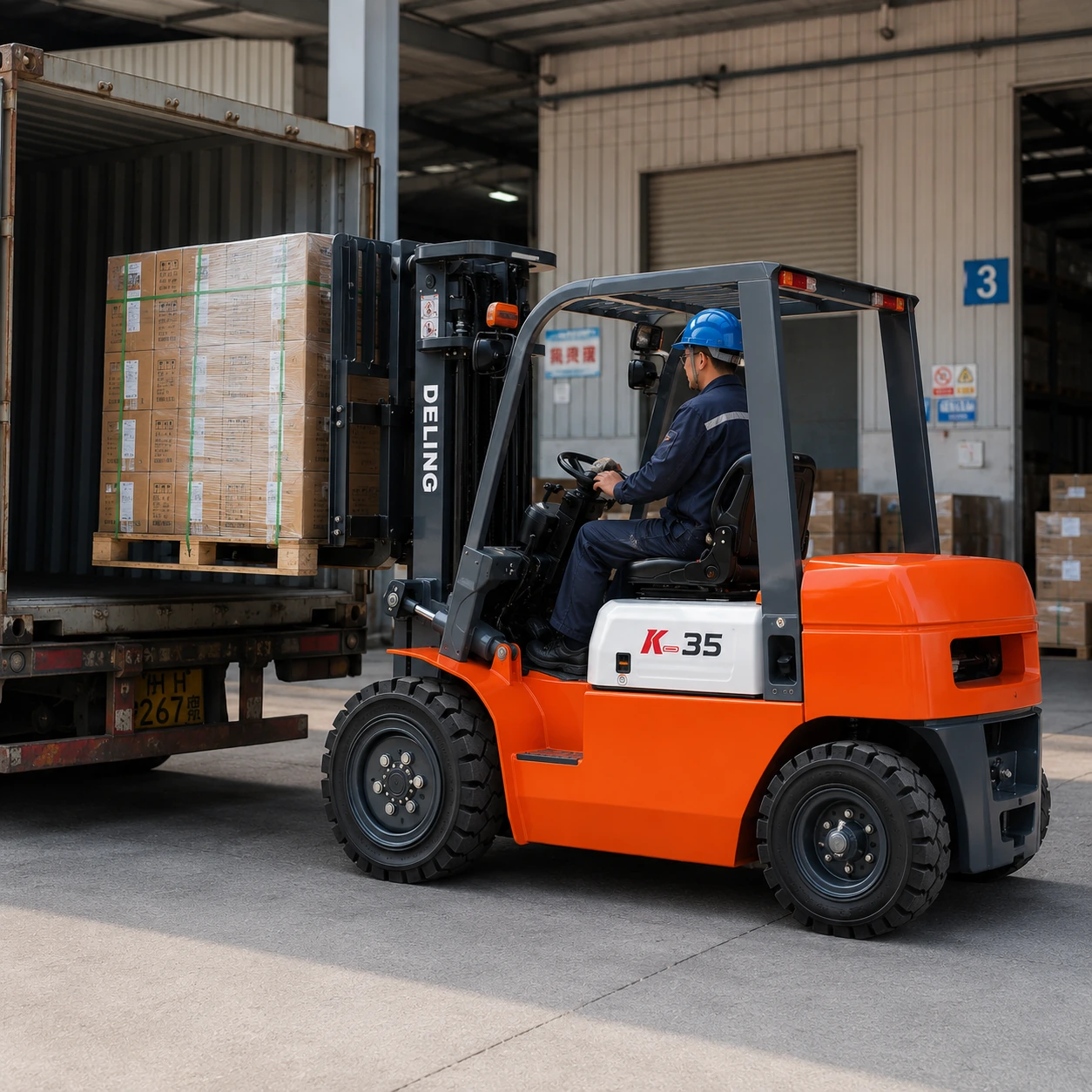

Truck and container loading or unloading
Industrial yards, distribution centers and building-material handling

Optional Configurations

Side Shifter: Hydraulic side-shift attachment for faster and more accurate pallet positioning.
Fork Positioner: Hydraulic fork-spacing adjustment for different pallet and load widths.
Duplex, Triplex or Full-Free Mast: Mast configuration and lifting height can be selected according to the warehouse, container and stacking requirements.
Solid Tires: Puncture-resistant tire option for intensive industrial yards and sites with sharp debris.
Semi-Enclosed or Fully Enclosed Cab: Weather-protection options for rain, dust, cold and outdoor operation.
Custom Fork Length: Fork length and section can be configured according to the load dimensions and working conditions.
Engine and Emission Configuration: Engine model and emission configuration are confirmed according to the destination market and quotation.

Quotation Information

Please specify the required model, rated load, lifting height, fork length, tire type, attachment, engine or emission requirement and destination country. Final dimensions and configuration should be confirmed in the formal quotation. Technical values on this page are based on the supplied product catalog. Final specifications may vary with the selected mast, attachment, tire, engine and destination-market configuration.

Quick Info

Model Series: CPC30 / CPC35 / CPC38
Rated Capacity: 3.0–3.8 Ton
Lift Height: Custom mast heights available; confirm the required lift height
Fork Length: 1070 mm
Mast Type: Duplex Mast, Triplex Mast, Full Free Mast
Tire Type: Pneumatic Tire, Solid Tire

Get a Quote

Technical Data

Technical Specifications

Specification	Value	Unit
Rated Capacity	CPC30: 3000; CPC35: 3500; CPC38: 3800	kg
Load Center Distance	CPC30: 500; CPC35: 500; CPC38: 500	mm
Free Lift Height	CPC30: 160; CPC35: 160; CPC38: 160	mm
Overall Length (With Fork / Without Fork)	CPC30: 3752 / 2682; CPC35: 3763 / 2693; CPC38: 3963 / 2893	mm
Width	CPC30: 1225; CPC35: 1225; CPC38: 1225	mm
Overhead Guard Height	CPC30: 2090; CPC35: 2090; CPC38: 2090	mm
Wheelbase	CPC30: 1700; CPC35: 1700; CPC38: 1700	mm
Minimum Ground Clearance	CPC30: 135; CPC35: 135; CPC38: 135	mm
Mast Tilt (Front / Rear)	CPC30: 6 / 12; CPC35: 6 / 12; CPC38: 6 / 12	degree
Front Tire	CPC30: 28×9-15-14PR; CPC35: 28×9-15-14PR; CPC38: 28×9-15-14PR
Rear Tire	CPC30: 6.5-10-10PR; CPC35: 6.5-10-10PR; CPC38: 6.5-10-10PR
Minimum Turning Radius	CPC30: 2400; CPC35: 2420; CPC38: 2710	mm
Minimum Right-Angle Aisle Width	CPC30: 4260; CPC35: 4260; CPC38: 4720	mm
Fork Size	CPC30: 1070×125×45; CPC35: 1070×125×50; CPC38: 1070×150×50	mm
Maximum Working Speed (Full Load / No Load)	CPC30: 18 / 19; CPC35: 19 / 19; CPC38: 19 / 19	km/h
Maximum Lifting Speed (Full Load / No Load)	CPC30: 440 / 480; CPC35: 330 / 370; CPC38: 340 / 380	mm/s
Maximum Gradeability (Full Load / No Load)	CPC30: 15 / 20; CPC35: 15 / 20; CPC38: 15 / 20	%
Forklift Weight	CPC30: 4250; CPC35: 4500; CPC38: 4800	kg
Engine Model	CPC30: Quanchai 4C2-50V32 / 4C2-50C41; CPC35: Quanchai 4C2-50V32 / 4C2-50C41; CPC38: Quanchai 4C2-50V32 / 4C2-50C41

* Specifications may vary. Contact us for customized configurations.

Why Choose This Model

Key Features

01

Durable Industrial Body

A practical counterbalanced layout supports stable operation and straightforward maintenance.

02

Wide-View Mast

The mast structure helps improve visibility when approaching, lifting and placing loads.

03

Clear Digital Instrument Panel

A user-friendly display supports accurate monitoring of the forklift operating condition.

04

Adjustable Steering Column

The steering-column mechanism improves operator comfort and driving-position adjustment.

05

High-Position Air Intake

The intake layout helps reduce dust exposure around the engine and supports service life.

06

Optional Cast Steering Axle

A durable steering-axle option can reduce later maintenance requirements.

Customization

Optional Configurations

Customize this model to fit your specific working conditions and requirements.

Side Shifter

Hydraulic side-shift attachment for faster and more accurate pallet positioning.

Fork Positioner

Hydraulic fork-spacing adjustment for different pallet and load widths.

Duplex, Triplex or Full-Free Mast

Mast configuration and lifting height can be selected according to the warehouse, container and stacking requirements.

Solid Tires

Puncture-resistant tire option for intensive industrial yards and sites with sharp debris.

Semi-Enclosed or Fully Enclosed Cab

Weather-protection options for rain, dust, cold and outdoor operation.

Custom Fork Length

Fork length and section can be configured according to the load dimensions and working conditions.

Engine and Emission Configuration

Engine model and emission configuration are confirmed according to the destination market and quotation.

Ask About Custom Configurations

Common Questions

Frequently Asked Questions

How do I choose the right diesel forklift capacity?

Select a rated capacity above the actual load weight and confirm the load-center distance. Mast height, attachments and long loads can reduce residual capacity, so the final configuration should be checked before ordering.

What mast heights and attachments are available for diesel forklifts?

Common options include duplex, triplex and full-free masts, side shifters, fork positioners, longer forks and enclosed cabs. Availability depends on the selected model and required residual capacity.

Which engine options are available for diesel forklifts?

Engine model and emission configuration depend on the forklift series, destination market and local requirements. The exact engine is confirmed in the formal quotation.

Can diesel forklifts be used indoors?

Diesel forklifts are mainly suited to outdoor or well-ventilated industrial areas. For indoor work, confirm ventilation, emission rules, noise limits, aisle width and mast-clearance requirements.

What information is needed for a diesel forklift quotation?

Please provide the required load capacity, load center, lifting height, fork length, tire type, attachment, engine or emission requirement, operating environment and destination country.
