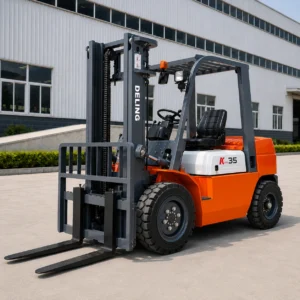

CPC30 / CPC35 / CPC38
K Series 3.0–3.8 Ton Diesel Forklift
K Series diesel forklifts in 3.0, 3.5 and 3.8 ton capacities for factory logistics, warehouse loading and medium-duty industrial handling.
Capacity: 3.0–3.8 Ton
View Details
Diesel Forklifts
Diesel
K-40 4 Ton Diesel Forklift
Series: CPC40 / K-40
The Deling K-40 is a 4 ton diesel forklift for factories, warehouses, logistics yards and outdoor loading operations, with configurable mast, tires and attachments.
Rated Capacity
4.0 Ton / 4000 kg
Lift Height
Custom mast heights available; confirm the required lift height
Fork Length
1070 mm standard; custom length available
Mast Type
Duplex Mast, Triplex Mast, Full Free Mast
Tire Type
Pneumatic Tire, Solid Tire
Quanchai 4C4-50V31 diesel engine reference configuration. Final engine and emission specification should be confirmed for the destination market.
Application Scenarios
Construction Site Material Handling
Container Loading & Unloading
Factory Material Transfer
Warehouse Pallet Handling
Factory Direct
Export Support
Spare Parts Support
Reply Within 12h
Product Overview
K-40 4 Ton Diesel Forklift
K-40 4 Ton Diesel Forklift
The K-40 4 Ton Diesel Forklift is a durable counterbalanced forklift for medium-to-heavy industrial loads. It combines a reinforced mast, stable chassis, wide-base tires and a practical operator layout for factory transfer, warehouse loading and logistics-yard work.Available Models
This product page covers CPC40. Select the required model according to the load capacity, load center, working aisle, fork size and engine requirements.Key Features
- 4 Ton Rated Capacity: The CPC40 / K-40 reference configuration is rated for 4,000 kg at a 500 mm load center.
- Reinforced Wide-View Mast: The strengthened mast structure supports durability while helping the operator maintain a clearer forward view.
- High-Position Air Intake: The intake layout helps keep the engine away from dust and supports dependable performance.
- Heavy-Duty Transmission: A strengthened transmission configuration supports strong power delivery and stable operating performance.
- Stamped Engine Hood: The integral hood design provides a strong, clean exterior and convenient service access.
- Wide-Base Industrial Tires: The tire configuration supports durability and stable handling in industrial yards.
- Digital Instrument Display: The operator interface helps monitor forklift condition and daily operation.
- Adjustable Steering Column: The steering-column adjustment improves operator comfort and driving-position setup.
Typical Applications
- Factory material transfer and production-line support
- Warehouse pallet handling and loading-bay work
- Truck and container loading or unloading
- Industrial yards, distribution centers and building-material handling
Optional Configurations
- Side Shifter: Hydraulic side-shift attachment for faster and more accurate pallet positioning.
- Fork Positioner: Hydraulic fork-spacing adjustment for different pallet and load widths.
- Duplex, Triplex or Full-Free Mast: Mast configuration and lifting height can be selected according to the warehouse, container and stacking requirements.
- Solid Tires: Puncture-resistant tire option for intensive industrial yards and sites with sharp debris.
- Semi-Enclosed or Fully Enclosed Cab: Weather-protection options for rain, dust, cold and outdoor operation.
- Custom Fork Length: Fork length and section can be configured according to the load dimensions and working conditions.
- Engine and Emission Configuration: Engine model and emission configuration are confirmed according to the destination market and quotation.
Quotation Information
Please specify the required model, rated load, lifting height, fork length, tire type, attachment, engine or emission requirement and destination country. Final dimensions and configuration should be confirmed in the formal quotation. Technical values on this page are based on the supplied product catalog. Final specifications may vary with the selected mast, attachment, tire, engine and destination-market configuration.Quick Info
- Model Series
- CPC40 / K-40
- Rated Capacity
- 4.0 Ton / 4000 kg
- Lift Height
- Custom mast heights available; confirm the required lift height
- Fork Length
- 1070 mm standard; custom length available
- Mast Type
- Duplex Mast, Triplex Mast, Full Free Mast
- Tire Type
- Pneumatic Tire, Solid Tire
Technical Data
Technical Specifications
| Specification | Value | Unit |
|---|---|---|
| Rated Capacity | CPC40: 4000 | kg |
| Load Center Distance | CPC40: 500 | mm |
| Free Lift Height | CPC40: 150 | mm |
| Overall Length (With Fork / Without Fork) | CPC40: 4000 / 2930 | mm |
| Width | CPC40: 1290 | mm |
| Overhead Guard Height | CPC40: 2180 | mm |
| Wheelbase | CPC40: 1900 | mm |
| Minimum Ground Clearance | CPC40: 140 | mm |
| Mast Tilt (Front / Rear) | CPC40: 6 / 12 | degree |
| Front Tire | CPC40: 250-15-16PR | |
| Rear Tire | CPC40: 7.00-12-12PR | |
| Minimum Turning Radius | CPC40: 2710 | mm |
| Minimum Right-Angle Aisle Width | CPC40: 4750 | mm |
| Fork Size | CPC40: 1070×150×50 | mm |
| Maximum Working Speed (Full Load / No Load) | CPC40: 19 / 19 | km/h |
| Maximum Lifting Speed (Full Load / No Load) | CPC40: 340 / 380 | mm/s |
| Maximum Gradeability (Full Load / No Load) | CPC40: 15 / 20 | % |
| Forklift Weight | CPC40: 4950 | kg |
| Engine Model | CPC40: Quanchai 4C4-50V31 |
* Specifications may vary. Contact us for customized configurations.
Why Choose This Model
Key Features
01
4 Ton Rated Capacity
The CPC40 / K-40 reference configuration is rated for 4,000 kg at a 500 mm load center.
02
Reinforced Wide-View Mast
The strengthened mast structure supports durability while helping the operator maintain a clearer forward view.
03
High-Position Air Intake
The intake layout helps keep the engine away from dust and supports dependable performance.
04
Heavy-Duty Transmission
A strengthened transmission configuration supports strong power delivery and stable operating performance.
05
Stamped Engine Hood
The integral hood design provides a strong, clean exterior and convenient service access.
06
Wide-Base Industrial Tires
The tire configuration supports durability and stable handling in industrial yards.
07
Digital Instrument Display
The operator interface helps monitor forklift condition and daily operation.
08
Adjustable Steering Column
The steering-column adjustment improves operator comfort and driving-position setup.
Customization
Optional Configurations
Customize this model to fit your specific working conditions and requirements.
Side Shifter
Hydraulic side-shift attachment for faster and more accurate pallet positioning.
Fork Positioner
Hydraulic fork-spacing adjustment for different pallet and load widths.
Duplex, Triplex or Full-Free Mast
Mast configuration and lifting height can be selected according to the warehouse, container and stacking requirements.
Solid Tires
Puncture-resistant tire option for intensive industrial yards and sites with sharp debris.
Semi-Enclosed or Fully Enclosed Cab
Weather-protection options for rain, dust, cold and outdoor operation.
Custom Fork Length
Fork length and section can be configured according to the load dimensions and working conditions.
Engine and Emission Configuration
Engine model and emission configuration are confirmed according to the destination market and quotation.
Common Questions
Frequently Asked Questions
How do I choose the right diesel forklift capacity?
Select a rated capacity above the actual load weight and confirm the load-center distance. Mast height, attachments and long loads can reduce residual capacity, so the final configuration should be checked before ordering.
What mast heights and attachments are available for diesel forklifts?
Common options include duplex, triplex and full-free masts, side shifters, fork positioners, longer forks and enclosed cabs. Availability depends on the selected model and required residual capacity.
Which engine options are available for diesel forklifts?
Engine model and emission configuration depend on the forklift series, destination market and local requirements. The exact engine is confirmed in the formal quotation.
Can diesel forklifts be used indoors?
Diesel forklifts are mainly suited to outdoor or well-ventilated industrial areas. For indoor work, confirm ventilation, emission rules, noise limits, aisle width and mast-clearance requirements.
What information is needed for a diesel forklift quotation?
Please provide the required load capacity, load center, lifting height, fork length, tire type, attachment, engine or emission requirement, operating environment and destination country.
Get a Fast Quote for
K-40 4 Ton Diesel Forklift
Tell us your working conditions and quantity requirements. Our team will respond within 12 hours with a competitive price and full specification sheet.
Fast Response
We typically reply within 12 hours on business days.
No Obligation
Free quote with full specification and pricing details.
Direct Contact
sales@delingequipment.com · WhatsApp +86 186 3292 9428
Request a Quote
Fill in your requirements and we'll get back to you promptly.
You May Also Like
Related Products
CPC45 / K-45
K-45 4.5 Ton Diesel Forklift
The K-45 is a 4.5 ton diesel forklift for factory transfer, warehouse loading, logistics yards and medium-to-heavy industrial materials.
Capacity: 4.5 Ton / 4500 kg
View Details

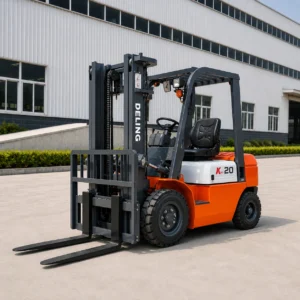

CPC15 / CPC20 / CPC25
K Series 1.5–2.5 Ton Diesel Forklift
Compact K Series diesel forklifts covering 1.5, 2.0 and 2.5 ton capacities for factories, warehouses, loading bays and daily pallet handling.
Capacity: 1.5–2.5 Ton
View Details

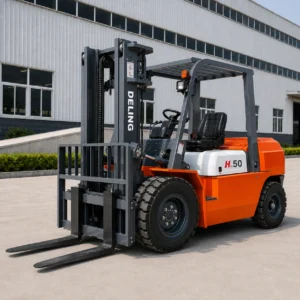

CPC45 / CPC50 H Series
