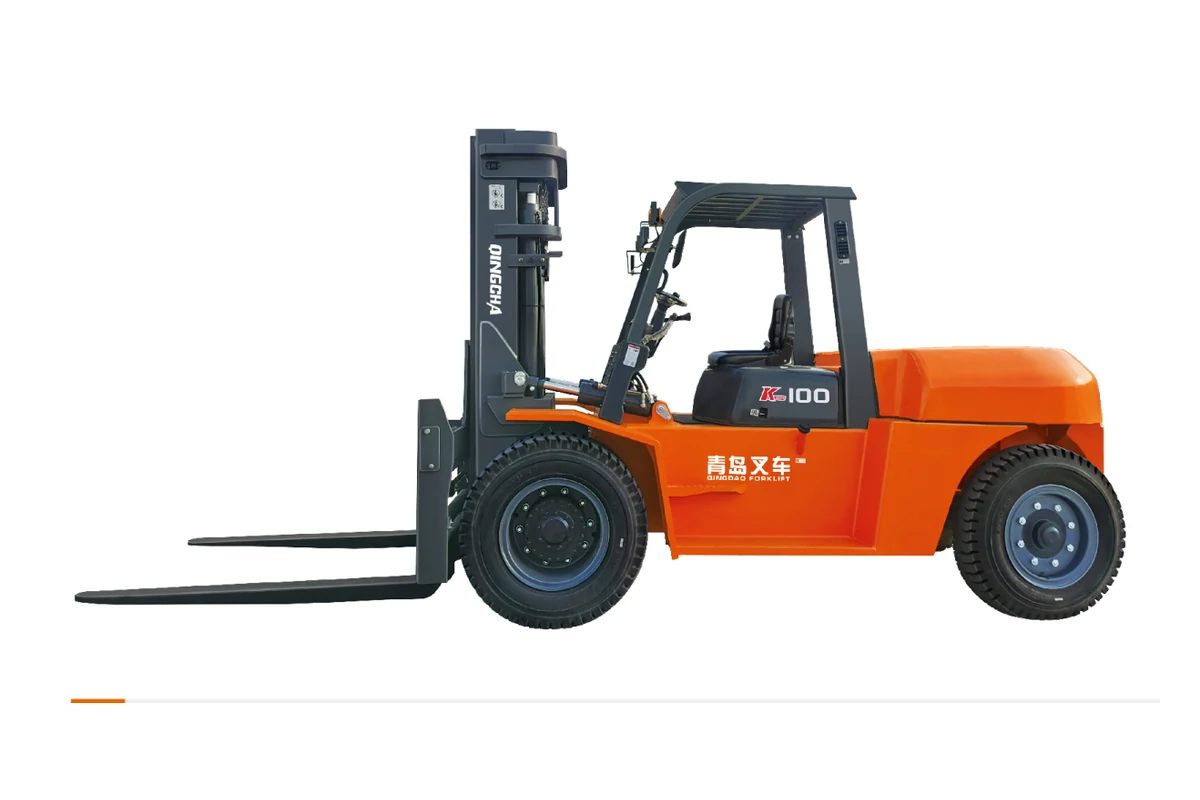

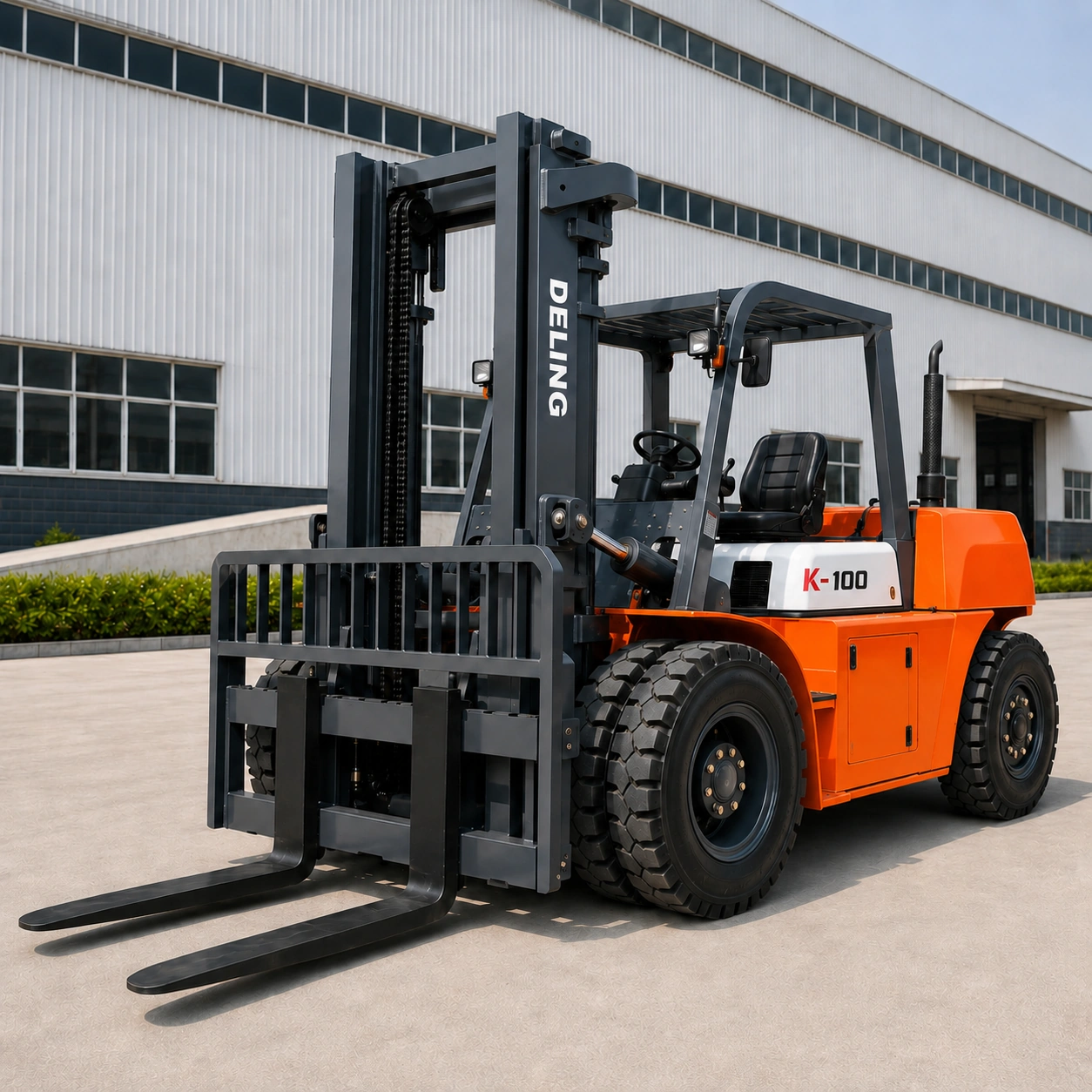

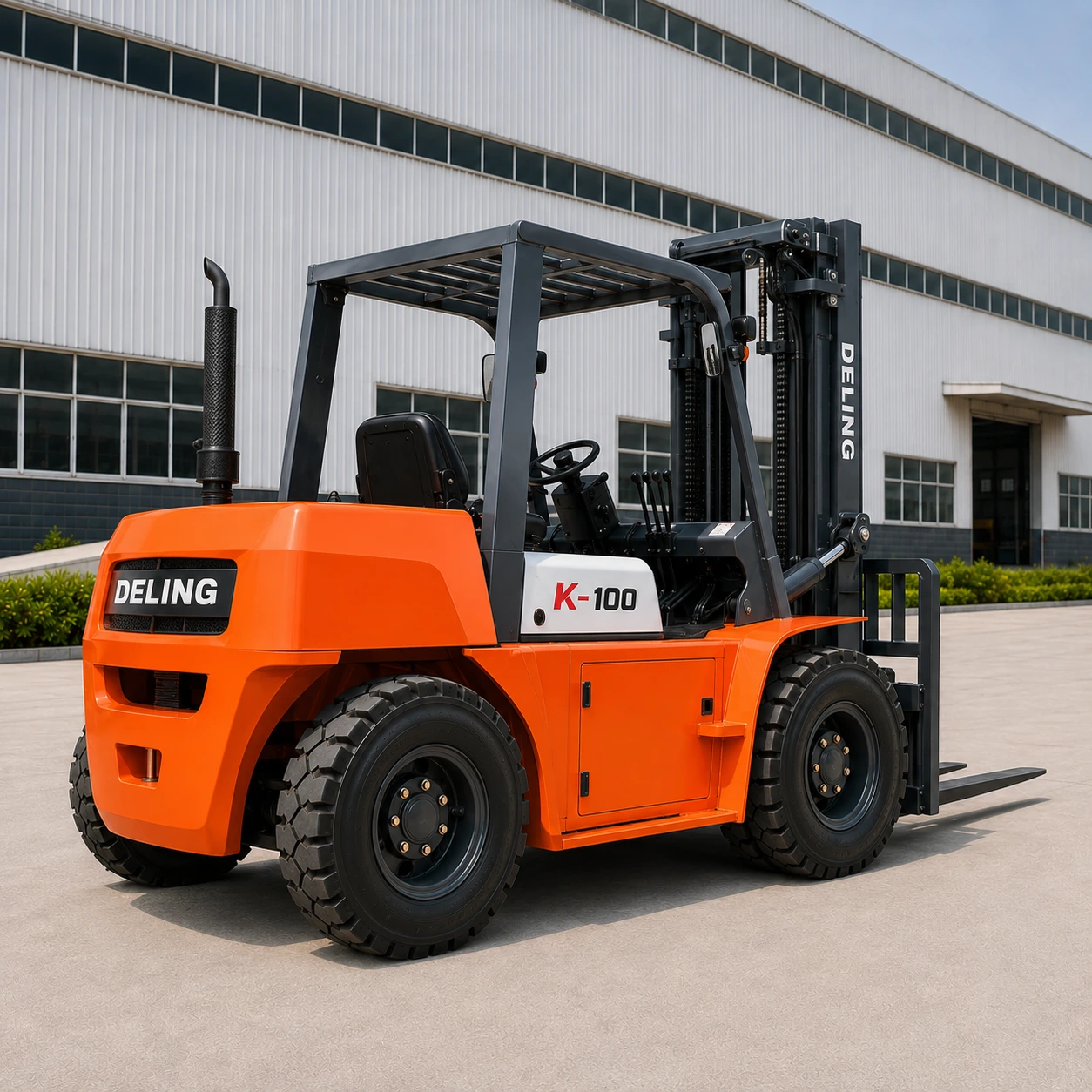

Series: CPCD80 / CPCD100
High-capacity K Series diesel forklifts in 8 and 10 ton capacities for machinery, steel, building materials and other demanding industrial loads.
Rated Capacity
8–10 Ton
Lift Height
Custom mast heights available; confirm the required lift height
Fork Length
1520 mm
Mast Type
Duplex Mast, Triplex Mast, Full Free Mast
Tire Type
Pneumatic Tire, Solid Tire
Quanchai 4J1-115C32 diesel engine reference configuration for CPCD80 and CPCD100.

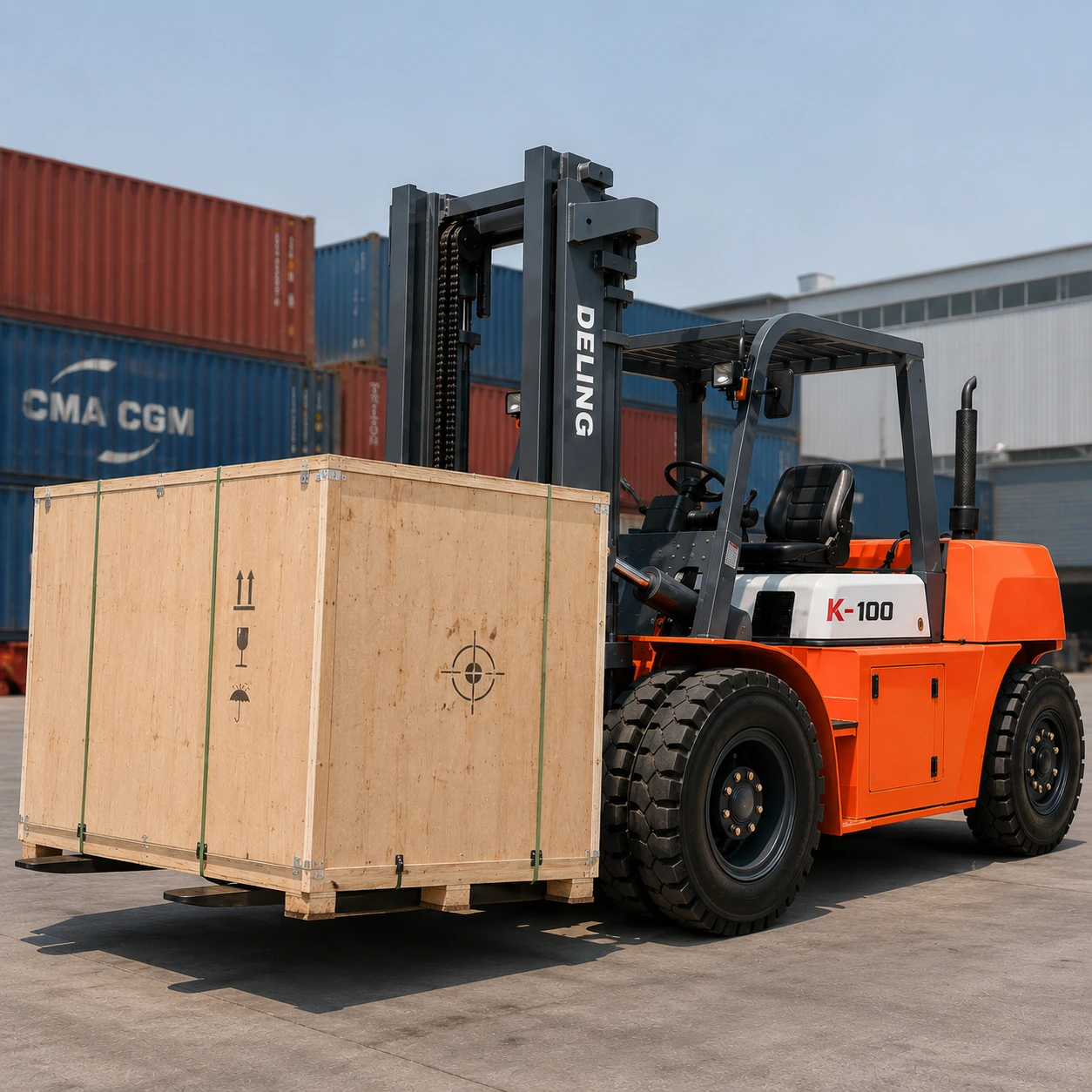

Application Scenarios
| Specification | Value | Unit |
|---|---|---|
| Rated Capacity | CPCD80: 8000; CPCD100: 10000 | kg |
| Load Center Distance | CPCD80: 600; CPCD100: 600 | mm |
| Free Lift Height | CPCD80: 200; CPCD100: 200 | mm |
| Overall Length (With Fork / Without Fork) | CPCD80: 5175 / 3955; CPCD100: 5497 / 4277 | mm |
| Width | CPCD80: 2245; CPCD100: 2245 | mm |
| Overhead Guard Height | CPCD80: 2570; CPCD100: 2570 | mm |
| Wheelbase | CPCD80: 2800; CPCD100: 2800 | mm |
| Minimum Ground Clearance | CPCD80: 250; CPCD100: 250 | mm |
| Mast Tilt (Front / Rear) | CPCD80: 10 / 12; CPCD100: 10 / 12 | degree |
| Front Tire | CPCD80: 9.00-20NHS; CPCD100: 9.00-20NHS | |
| Rear Tire | CPCD80: 9.00-20NHS; CPCD100: 9.00-20NHS | |
| Minimum Turning Radius | CPCD80: 3755; CPCD100: 4150 | mm |
| Minimum Right-Angle Aisle Width | CPCD80: 5755; CPCD100: 6010 | mm |
| Fork Size | CPCD80: 1520×170×70; CPCD100: 1520×175×85 | mm |
| Maximum Working Speed (Full Load / No Load) | CPCD80: 20 / 26; CPCD100: 20 / 26 | km/h |
| Maximum Lifting Speed (Full Load / No Load) | CPCD80: 330 / 350; CPCD100: 330 / 350 | mm/s |
| Maximum Gradeability (Full Load / No Load) | CPCD80: 15 / 20; CPCD100: 15 / 20 | % |
| Forklift Weight | CPCD80: 11800; CPCD100: 12410 | kg |
| Engine Model | CPCD80: Quanchai 4J1-115C32; CPCD100: Quanchai 4J1-115C32 |
* Specifications may vary. Contact us for customized configurations.
The control arrangement is designed to support operator comfort during demanding working shifts.
The intake, exhaust and cooling system layout supports engine life and operating reliability.
A durable power and transmission system supports high-capacity load handling.
The steering-column adjustment helps the operator set a comfortable driving position.
A clear instrument interface supports accurate monitoring of machine status.
The braking system is designed for light control effort, comfort and dependable performance.
The mast design supports a clearer field of view around large loads.
The large, clearly defined body structure matches demanding heavy-duty work.
Advanced manufacturing and durable components support long-term industrial use.
Customize this model to fit your specific working conditions and requirements.
Hydraulic side-shift attachment for faster and more accurate pallet positioning.
Hydraulic fork-spacing adjustment for different pallet and load widths.
Mast configuration and lifting height can be selected according to the warehouse, container and stacking requirements.
Puncture-resistant tire option for intensive industrial yards and sites with sharp debris.
Weather-protection options for rain, dust, cold and outdoor operation.
Fork length and section can be configured according to the load dimensions and working conditions.
Engine model and emission configuration are confirmed according to the destination market and quotation.
Select a rated capacity above the actual load weight and confirm the load-center distance. Mast height, attachments and long loads can reduce residual capacity, so the final configuration should be checked before ordering.
Common options include duplex, triplex and full-free masts, side shifters, fork positioners, longer forks and enclosed cabs. Availability depends on the selected model and required residual capacity.
Engine model and emission configuration depend on the forklift series, destination market and local requirements. The exact engine is confirmed in the formal quotation.
Diesel forklifts are mainly suited to outdoor or well-ventilated industrial areas. For indoor work, confirm ventilation, emission rules, noise limits, aisle width and mast-clearance requirements.
Please provide the required load capacity, load center, lifting height, fork length, tire type, attachment, engine or emission requirement, operating environment and destination country.
