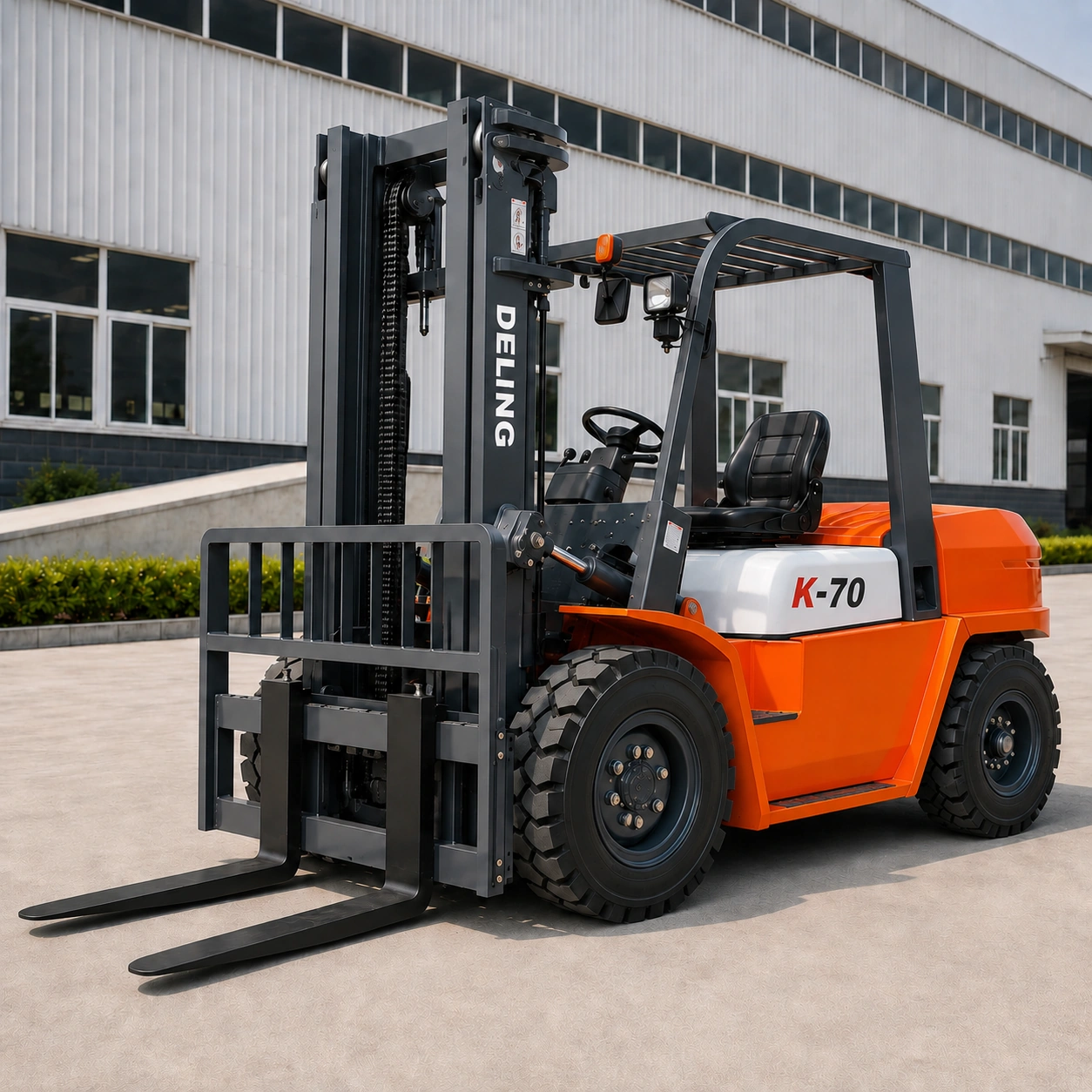

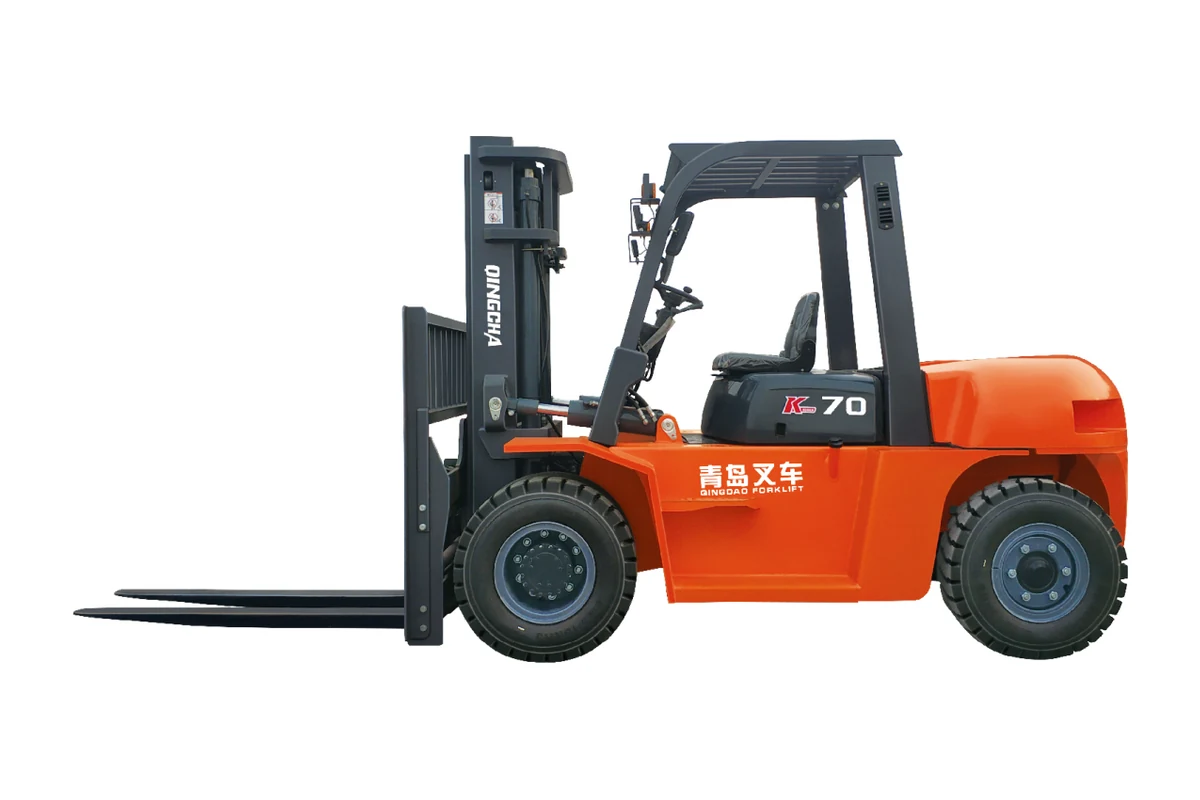

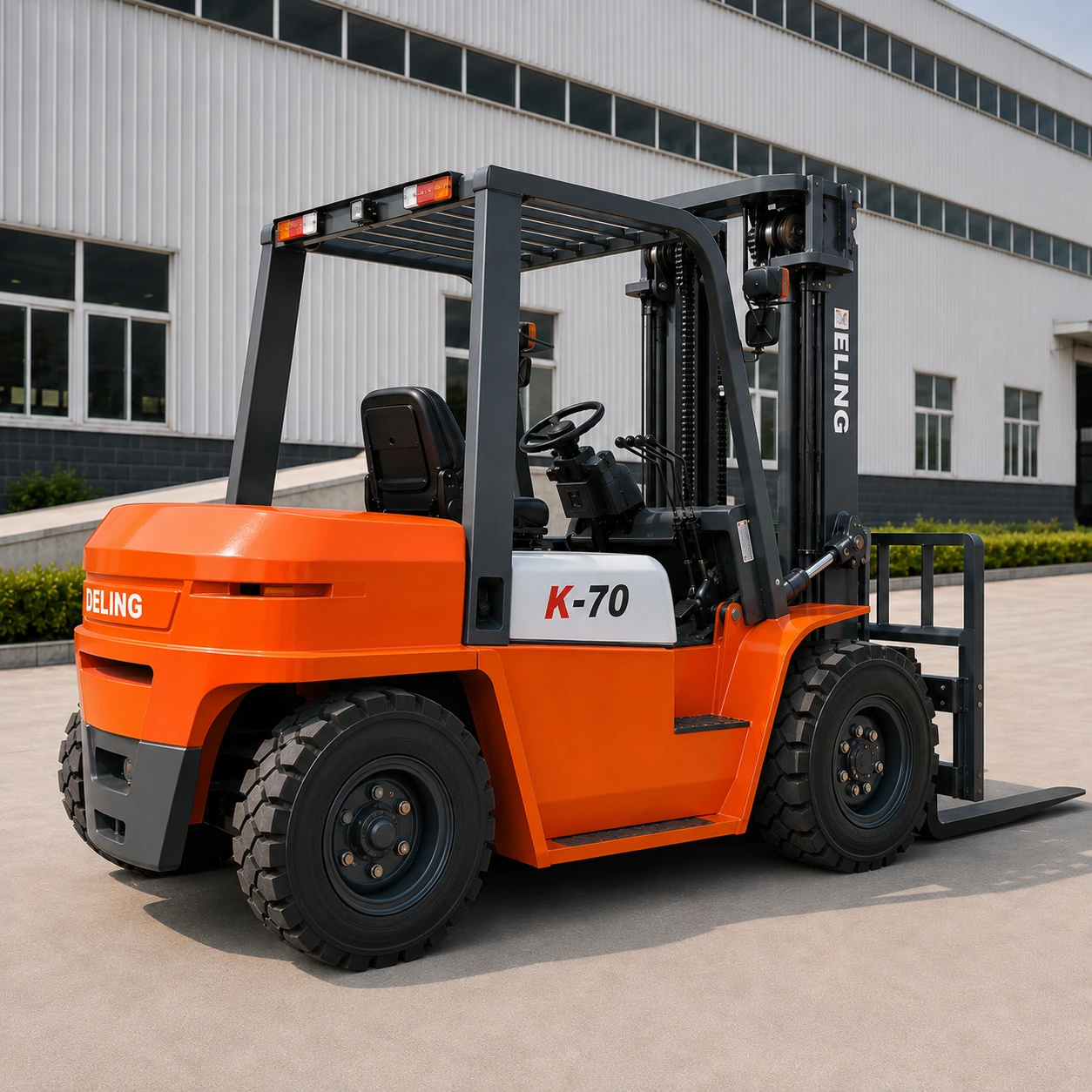

K Series 5–7 Ton Heavy Duty Diesel Forklift

Product Overview

The K Series 5–7 Ton Heavy Duty Diesel Forklift range is intended for heavier industrial loads, machinery components, building materials and yard logistics. A strong chassis, large tires and heavy-duty powertrain support demanding daily work.

Available Models

This product page covers CPCD50, CPCD60, CPCD70. Select the required model according to the load capacity, load center, working aisle, fork size and engine requirements.

Key Features

Wide-View Mast: The mast design supports better operator visibility around large loads.
High-Position Air Intake: The intake system helps reduce dust exposure around the engine and supports service life.
Clear Digital Instrument Display: The operator interface provides practical monitoring of forklift status.
Heavy-Duty Manufacturing: Advanced manufacturing processes and durable components support demanding operating conditions.
Reduced Front Overhang: The chassis layout helps manage loaded front-axle stress and supports tire and drive-axle life.
Low Noise and Vibration Design: The powertrain and body layout are designed to support smoother and more efficient operation.
Strong Industrial Styling: The robust exterior and large tires match the heavy-duty working requirement.

Typical Applications

Factory material transfer and production-line support
Warehouse pallet handling and loading-bay work
Truck and container loading or unloading

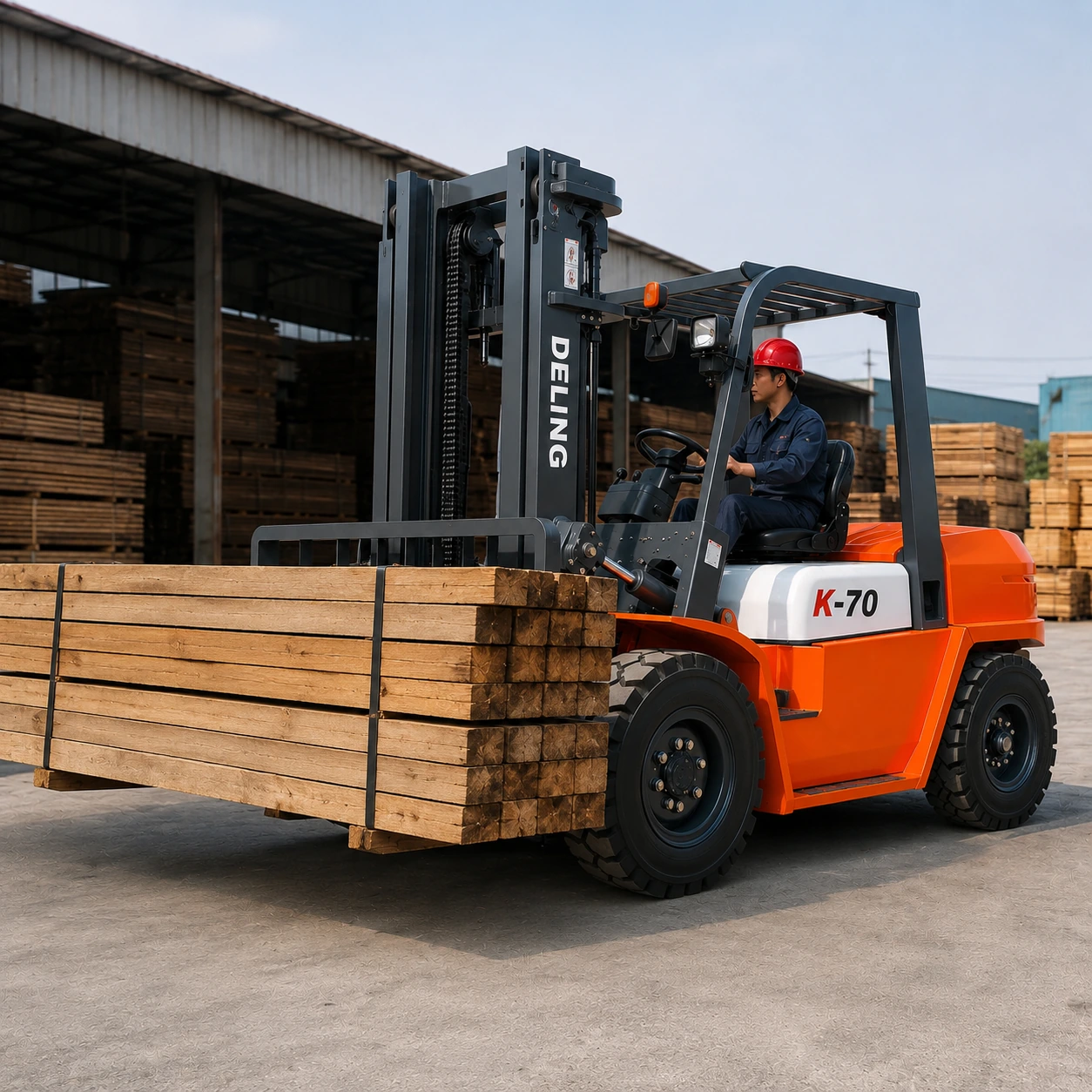

Industrial yards, distribution centers and building-material handling

Optional Configurations

Side Shifter: Hydraulic side-shift attachment for faster and more accurate pallet positioning.
Fork Positioner: Hydraulic fork-spacing adjustment for different pallet and load widths.
Duplex, Triplex or Full-Free Mast: Mast configuration and lifting height can be selected according to the warehouse, container and stacking requirements.
Solid Tires: Puncture-resistant tire option for intensive industrial yards and sites with sharp debris.
Semi-Enclosed or Fully Enclosed Cab: Weather-protection options for rain, dust, cold and outdoor operation.
Custom Fork Length: Fork length and section can be configured according to the load dimensions and working conditions.
Engine and Emission Configuration: Engine model and emission configuration are confirmed according to the destination market and quotation.

Quotation Information

Please specify the required model, rated load, lifting height, fork length, tire type, attachment, engine or emission requirement and destination country. Final dimensions and configuration should be confirmed in the formal quotation. Technical values on this page are based on the supplied product catalog. Final specifications may vary with the selected mast, attachment, tire, engine and destination-market configuration.

Quick Info

Model Series: CPCD50 / CPCD60 / CPCD70
Rated Capacity: 5–7 Ton
Lift Height: Custom mast heights available; confirm the required lift height
Fork Length: 1220 mm
Mast Type: Duplex Mast, Triplex Mast, Full Free Mast
Tire Type: Pneumatic Tire, Solid Tire

Get a Quote

Technical Data

Technical Specifications

Specification	Value	Unit
Rated Capacity	CPCD50: 5000; CPCD60: 6000; CPCD70: 7000	kg
Load Center Distance	CPCD50: 600; CPCD60: 600; CPCD70: 600	mm
Free Lift Height	CPCD50: 210; CPCD60: 210; CPCD70: 210	mm
Overall Length (With Fork / Without Fork)	CPCD50: 4690 / 3510; CPCD60: 4720 / 3590; CPCD70: 4810 / 3680	mm
Width	CPCD50: 1970; CPCD60: 1970; CPCD70: 1970	mm
Overhead Guard Height	CPCD50: 2500; CPCD60: 2500; CPCD70: 2500	mm
Wheelbase	CPCD50: 2250; CPCD60: 2250; CPCD70: 2250	mm
Minimum Ground Clearance	CPCD50: 230; CPCD60: 230; CPCD70: 230	mm
Mast Tilt (Front / Rear)	CPCD50: 6 / 12; CPCD60: 6 / 12; CPCD70: 6 / 12	degree
Front Tire	CPCD50: 8.25-15-14PR; CPCD60: 8.25-15-14PR; CPCD70: 8.25-15-14PR
Rear Tire	CPCD50: 8.25-15-14PR; CPCD60: 8.25-15-14PR; CPCD70: 8.25-15-14PR
Minimum Turning Radius	CPCD50: 4080; CPCD60: 4120; CPCD70: 4180	mm
Minimum Right-Angle Aisle Width	CPCD50: 5230; CPCD60: 5290; CPCD70: 5360	mm
Fork Size	CPCD50: 1220×150×60; CPCD60: 1220×150×60; CPCD70: 1220×150×65	mm
Maximum Working Speed (Full Load / No Load)	CPCD50: 24 / 29; CPCD60: 23 / 29; CPCD70: 22 / 29	km/h
Maximum Lifting Speed (Full Load / No Load)	CPCD50: 510 / 530; CPCD60: 500 / 530; CPCD70: 500 / 480	mm/s
Maximum Gradeability (Full Load / No Load)	CPCD50: 15 / 20; CPCD60: 15 / 20; CPCD70: 15 / 20	%
Forklift Weight	CPCD50: 8400; CPCD60: 8900; CPCD70: 9600	kg
Engine Model	CPCD50: Quanchai 4J1-115C32; CPCD60: Quanchai 4J1-115C32; CPCD70: Quanchai 4J1-115C32

* Specifications may vary. Contact us for customized configurations.

Why Choose This Model

Key Features

01

Wide-View Mast

The mast design supports better operator visibility around large loads.

02

High-Position Air Intake

The intake system helps reduce dust exposure around the engine and supports service life.

03

Clear Digital Instrument Display

The operator interface provides practical monitoring of forklift status.

04

Heavy-Duty Manufacturing

Advanced manufacturing processes and durable components support demanding operating conditions.

05

Reduced Front Overhang

The chassis layout helps manage loaded front-axle stress and supports tire and drive-axle life.

06

Low Noise and Vibration Design

The powertrain and body layout are designed to support smoother and more efficient operation.

07

Strong Industrial Styling

The robust exterior and large tires match the heavy-duty working requirement.

Customization

Optional Configurations

Customize this model to fit your specific working conditions and requirements.

Side Shifter

Hydraulic side-shift attachment for faster and more accurate pallet positioning.

Fork Positioner

Hydraulic fork-spacing adjustment for different pallet and load widths.

Duplex, Triplex or Full-Free Mast

Mast configuration and lifting height can be selected according to the warehouse, container and stacking requirements.

Solid Tires

Puncture-resistant tire option for intensive industrial yards and sites with sharp debris.

Semi-Enclosed or Fully Enclosed Cab

Weather-protection options for rain, dust, cold and outdoor operation.

Custom Fork Length

Fork length and section can be configured according to the load dimensions and working conditions.

Engine and Emission Configuration

Engine model and emission configuration are confirmed according to the destination market and quotation.

Ask About Custom Configurations

Common Questions

Frequently Asked Questions

How do I choose the right diesel forklift capacity?

Select a rated capacity above the actual load weight and confirm the load-center distance. Mast height, attachments and long loads can reduce residual capacity, so the final configuration should be checked before ordering.

What mast heights and attachments are available for diesel forklifts?

Common options include duplex, triplex and full-free masts, side shifters, fork positioners, longer forks and enclosed cabs. Availability depends on the selected model and required residual capacity.

Which engine options are available for diesel forklifts?

Engine model and emission configuration depend on the forklift series, destination market and local requirements. The exact engine is confirmed in the formal quotation.

Can diesel forklifts be used indoors?

Diesel forklifts are mainly suited to outdoor or well-ventilated industrial areas. For indoor work, confirm ventilation, emission rules, noise limits, aisle width and mast-clearance requirements.

What information is needed for a diesel forklift quotation?

Please provide the required load capacity, load center, lifting height, fork length, tire type, attachment, engine or emission requirement, operating environment and destination country.
