Series: CPDS20

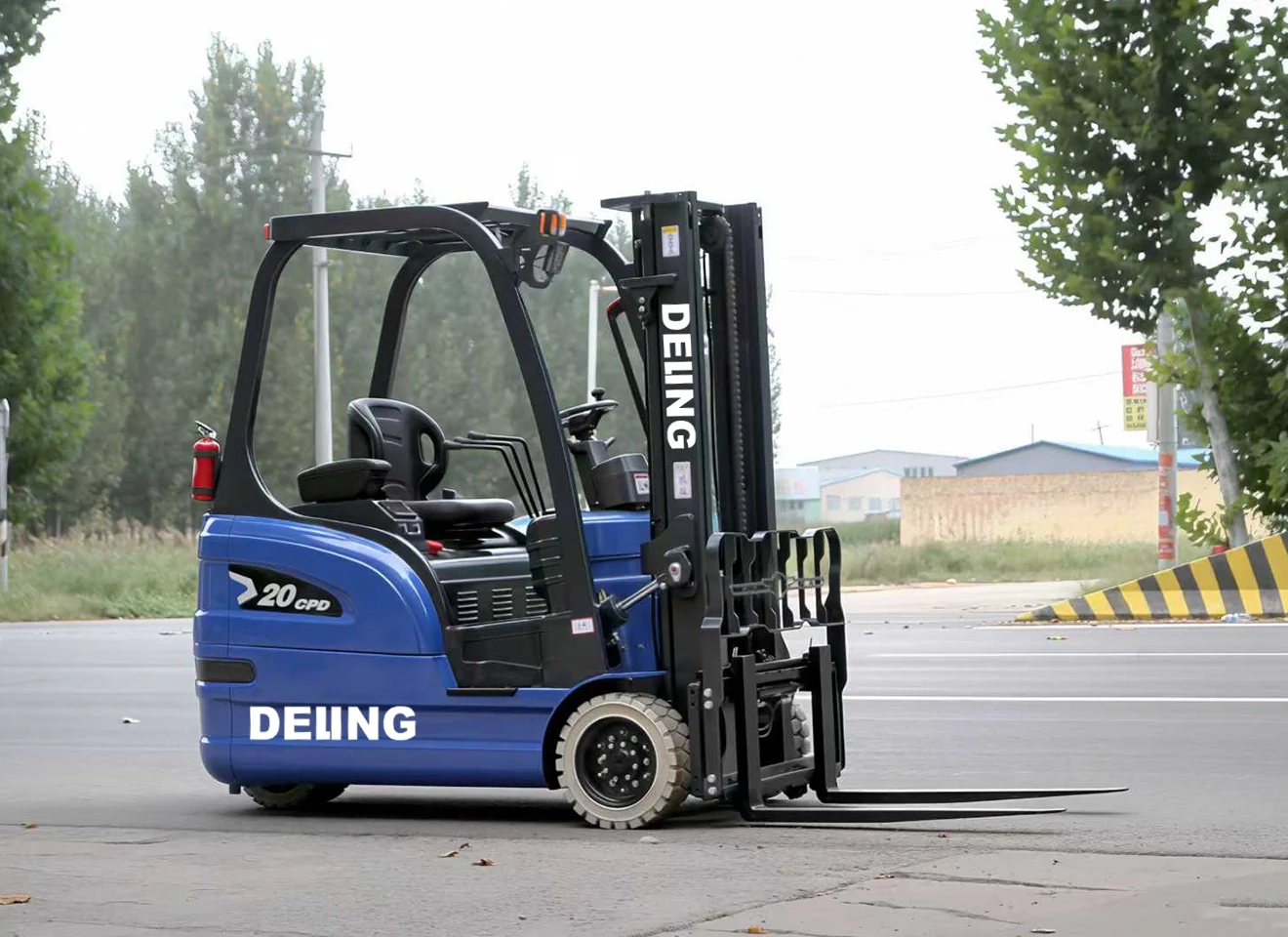

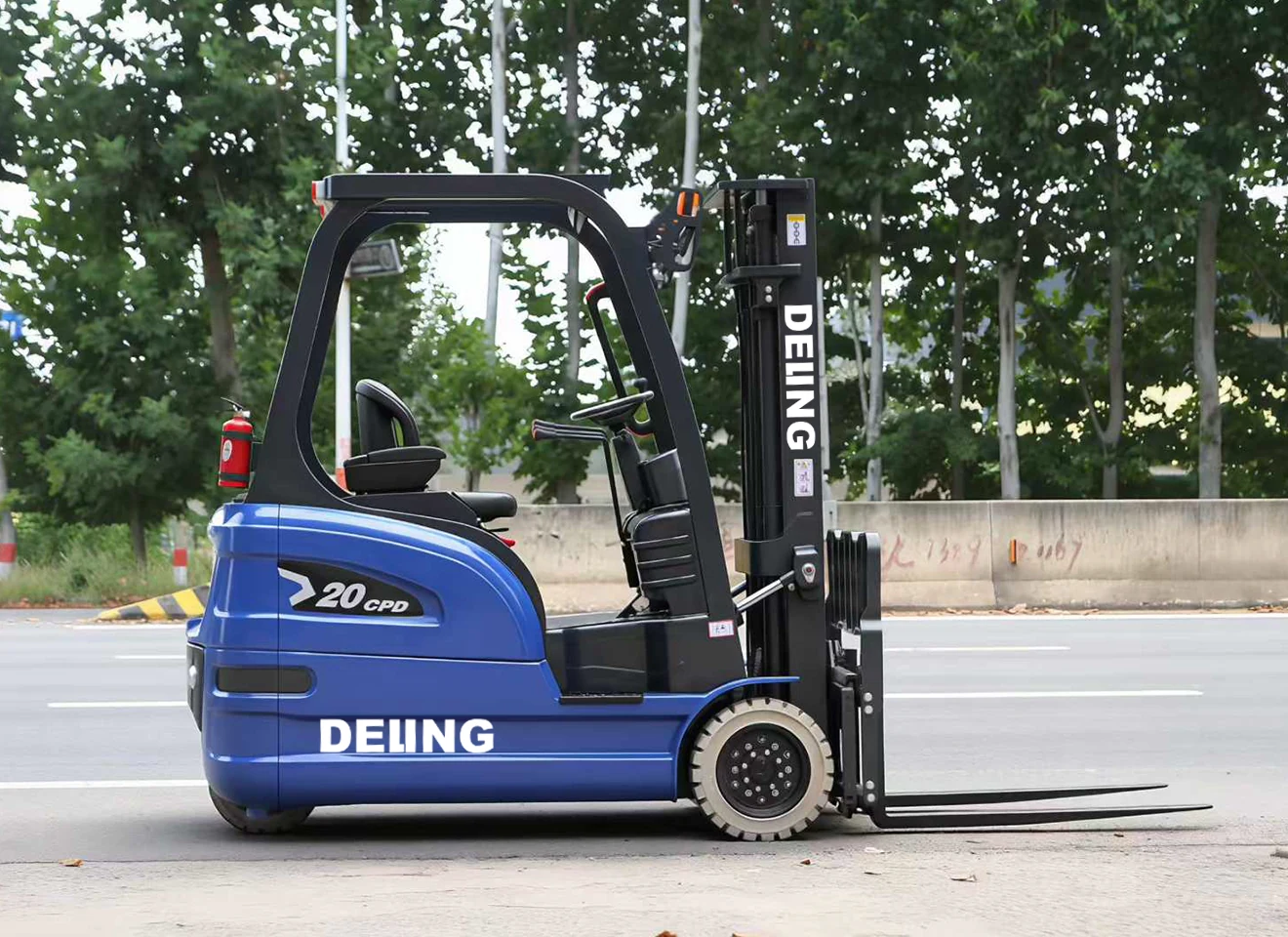

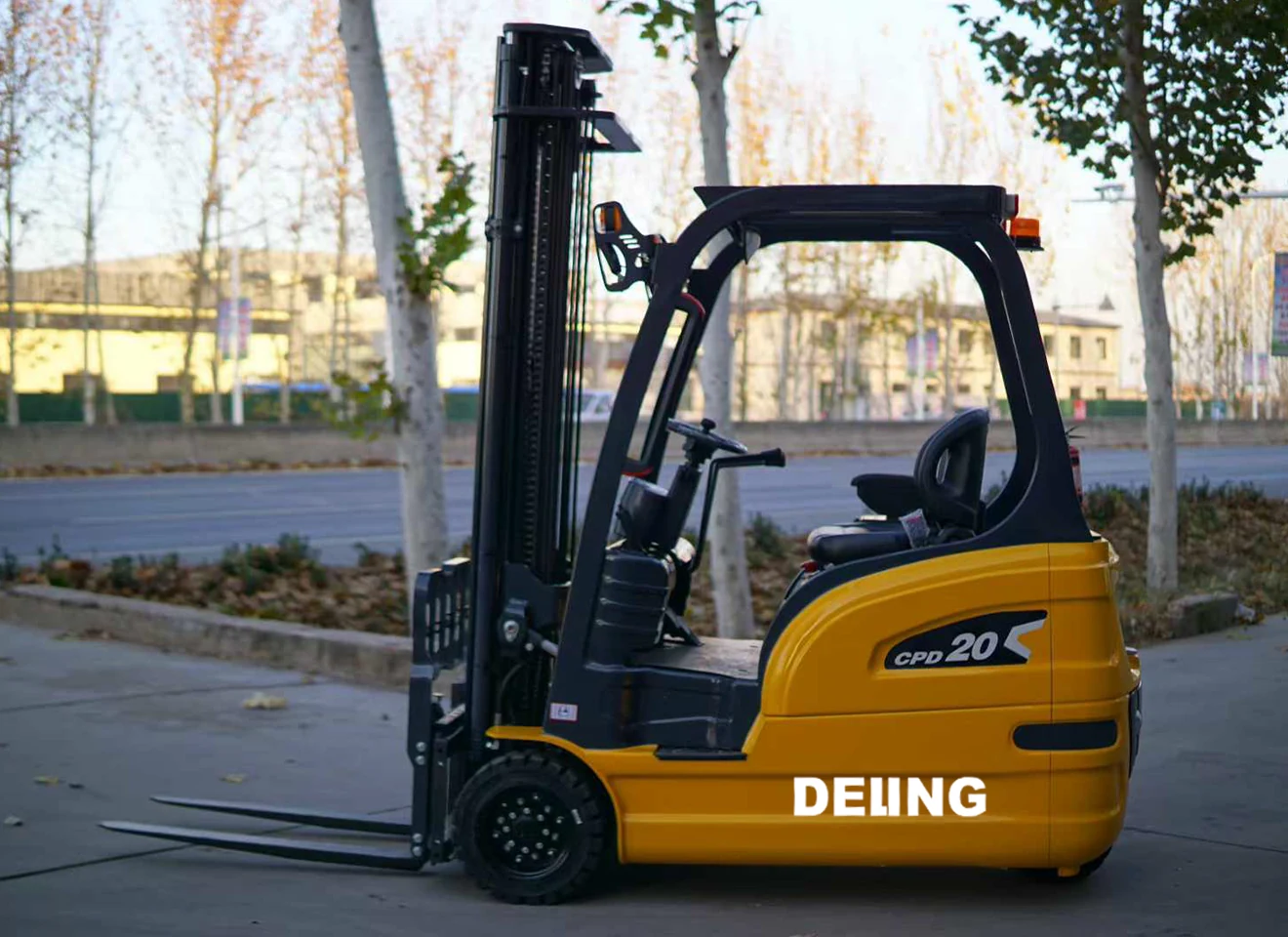

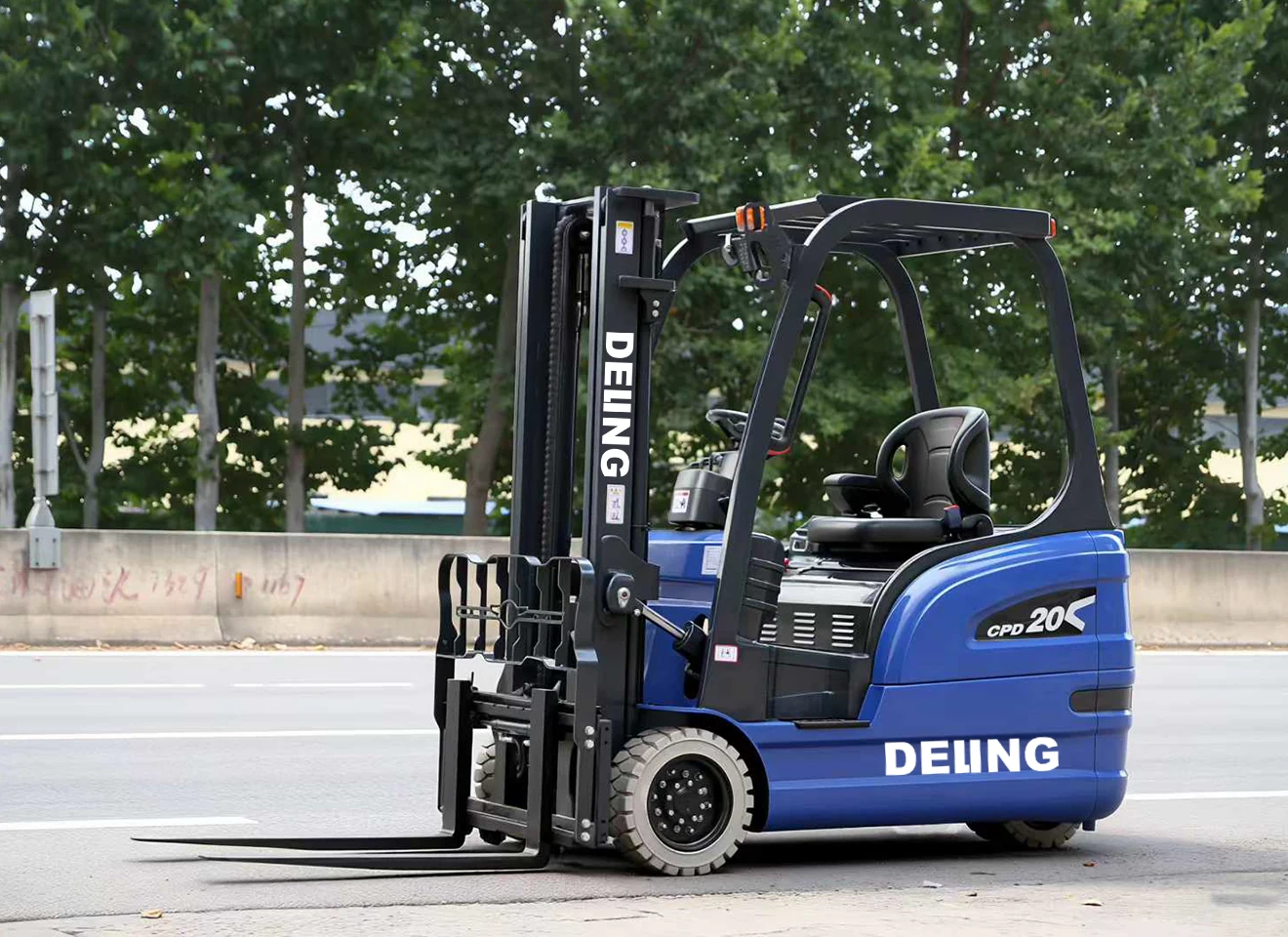

The Deling CPDS20 is a 2.0 ton three-wheel electric forklift for warehouses and factories requiring higher load capacity with compact maneuverability. It provides a 1793 mm turning radius, solid tires, AC control and a 3000 mm standard lift height.
Rated Capacity
2000 kg / 2.0 ton
Lift Height
3000 mm standard; optional mast heights available
Fork Length
1070 mm standard; custom fork lengths available
Mast Type
Duplex Mast, Triplex Mast, Full Free Mast
Tire Type
Solid Tire
Electric AC drive and lift control system. Battery voltage, capacity and charger specification are configured according to required working hours, charging conditions and local electrical standards.
Application Scenarios
| Specification | Value | Unit |
|---|---|---|
| Model | CPDS20 | |
| Power Type | Electric | |
| Operation Type | Seated | |
| Rated Capacity | 2000 | kg |
| Load Center | 500 | mm |
| Front Overhang | 340 | mm |
| Wheelbase | 1606 | mm |
| Service Weight Including Battery | 2900 +/- 100 | kg |
| Tire Type, Drive / Steering | Solid Tire | |
| Drive Wheel Size | 18X7-10 | |
| Steering Wheel Size | 15X4.5-8 | |
| Drive / Steering Wheel Quantity | 2X2 / 2 | |
| Drive Wheel Tread | 960 | mm |
| Steering Wheel Tread | 180 | mm |
| Mast / Fork Tilt, Forward / Backward | 5 / 9 | degree |
| Lowered Mast Height | 2150 | mm |
| Standard Lift Height | 3000 | mm |
| Mast Height at Full Lift | 3960 | mm |
| Overhead Guard Height | 2120 | mm |
| Seat Height | 1100 | mm |
| Tow Pin Center Height | 650 | mm |
| Overall Length | 3270 | mm |
| Length to Fork Face | 2160 | mm |
| Overall Width | 1100 | mm |
| Fork Dimensions | 40X100X1070 | mm |
| Fork Carriage Width | 1040 | mm |
| Ground Clearance Under Mast, Loaded | 110 | mm |
| Minimum Ground Clearance | 80 | mm |
| Aisle Width for 1200 x 1000 Pallet | 3460 | mm |
| Aisle Width for 800 x 1200 Pallet | 3660 | mm |
| Turning Radius | 1793 | mm |
| Travel Speed, Loaded / Unloaded | 9 / 11 | km/h |
| Lift Speed, Loaded / Unloaded | 0.24 / 0.30 | m/s |
| Lowering Speed, Loaded / Unloaded | 0.39 / 0.34 | m/s |
| Maximum Gradeability, Loaded / Unloaded | 15 | % |
| Service Brake Type | Hydraulic + Mechanical | |
| Parking Brake Type | Mechanical | |
| Drive Motor Rated Power, S2 60 min | 5.5 | kW |
| Lift Motor Rated Power, S3 15% | 5.5 | kW |
| Drive Control Type | AC |
* Specifications may vary. Contact us for customized configurations.
Handles heavier pallet loads while retaining the compact characteristics of a three-wheel forklift.
Designed for efficient turning in warehouse aisles and factory material routes.
Electric power supports stable travel and lifting performance for routine industrial handling.
Provides dependable operation on smooth warehouse and factory floors.
Suitable for common pallet stacking and loading work, with optional mast configurations available.
Battery, charger, warning equipment and attachments can be matched to destination requirements.
Customize this model to fit your specific working conditions and requirements.
Duplex, triplex and full-free mast options can be selected according to doorway height, rack height and free-lift requirements.
Hydraulic side shifting helps align pallets more precisely without repositioning the truck.
Custom fork length, fork width and fork-positioning configurations are available according to pallet and load dimensions.
Battery capacity, charger type and electrical standard are selected according to shift duration, charging window and destination-market requirements.
Optional work lights, warning beacon, reverse alarm, blue safety light and other site-specific safety devices.
Tell us your working conditions and quantity requirements. Our team will respond within 12 hours with a competitive price and full specification sheet.
Fast Response
We typically reply within 12 hours on business days.
No Obligation
Free quote with full specification and pricing details.
Direct Contact
sales@delingequipment.com · WhatsApp +86 186 3292 9428
Fill in your requirements and we'll get back to you promptly.
CPDS12

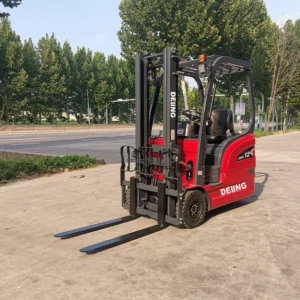

The Deling CPDS12 is a compact 1.2 ton three-wheel electric forklift for narrow warehouse aisles, production lines and indoor pallet handling. Its 1590 mm turning radius, solid tires and AC control system support precise, low-emission operation.
