Series: CPDS16

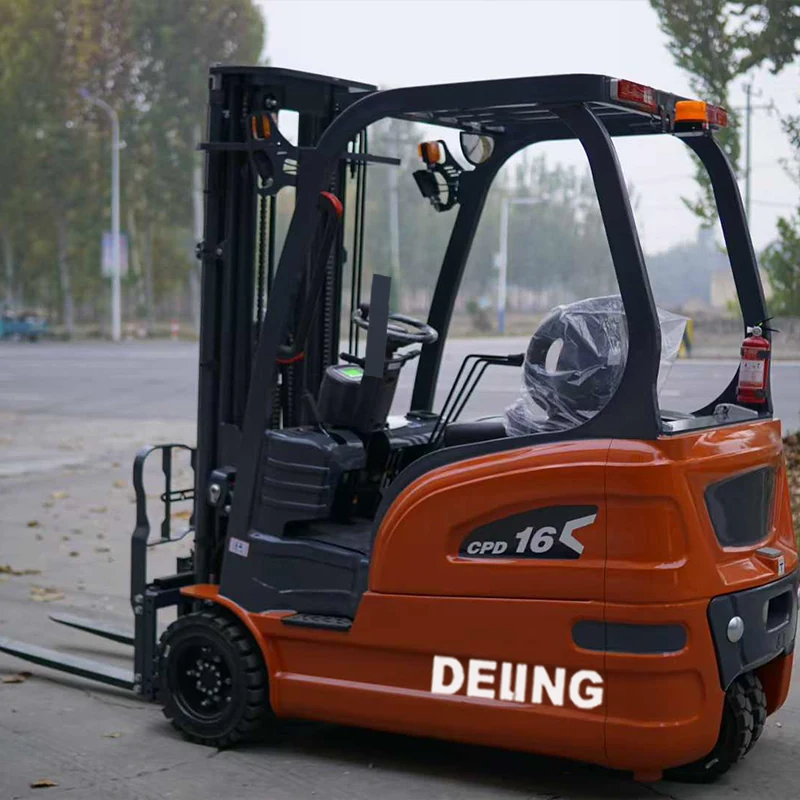

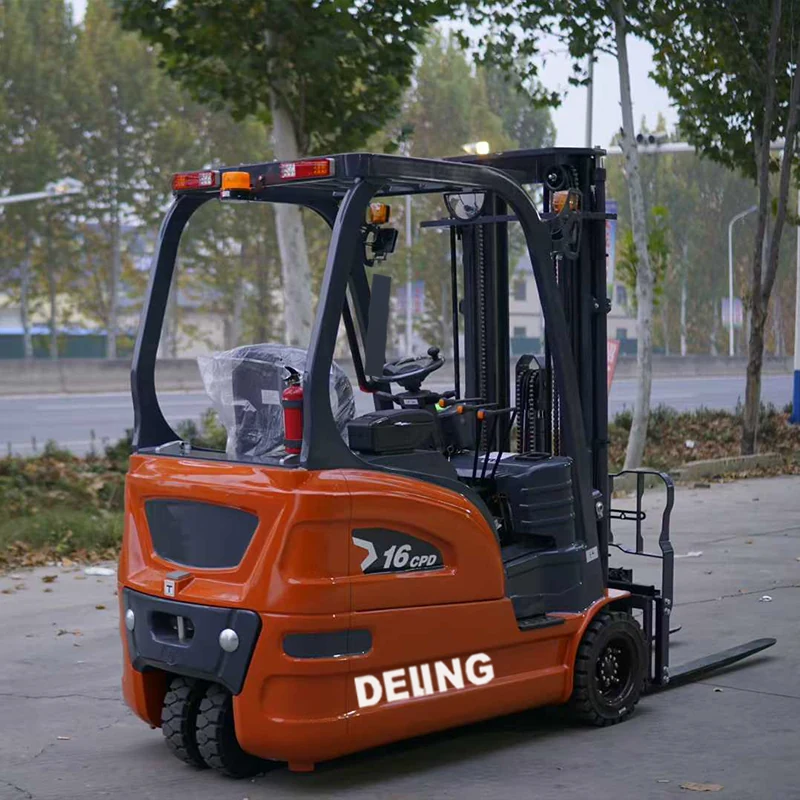

The Deling CPDS16 is a 1.6 ton three-wheel electric forklift combining compact warehouse maneuverability with increased load capacity. It features a 1690 mm turning radius, solid tires, AC drive control and a 3000 mm standard lift height.
Rated Capacity
1600 kg / 1.6 ton
Lift Height
3000 mm standard; optional mast heights available
Fork Length
1070 mm standard; custom fork lengths available
Mast Type
Duplex Mast, Triplex Mast, Full Free Mast
Tire Type
Solid Tire
Electric AC drive and lift control system. Battery voltage, capacity and charger specification are configured according to required working hours, charging conditions and local electrical standards.
Application Scenarios
| Specification | Value | Unit |
|---|---|---|
| Model | CPDS16 | |
| Power Type | Electric | |
| Operation Type | Seated | |
| Rated Capacity | 1600 | kg |
| Load Center | 500 | mm |
| Front Overhang | 340 | mm |
| Wheelbase | 1540 | mm |
| Service Weight Including Battery | 2500 +/- 100 | kg |
| Tire Type, Drive / Steering | Solid Tire | |
| Drive Wheel Size | 18X7-10 | |
| Steering Wheel Size | 15X4.5-8 | |
| Drive / Steering Wheel Quantity | 2X2 / 2 | |
| Drive Wheel Tread | 950 | mm |
| Steering Wheel Tread | 180 | mm |
| Mast / Fork Tilt, Forward / Backward | 5 / 9 | degree |
| Lowered Mast Height | 2150 | mm |
| Standard Lift Height | 3000 | mm |
| Mast Height at Full Lift | 3960 | mm |
| Overhead Guard Height | 2120 | mm |
| Seat Height | 1080 | mm |
| Tow Pin Center Height | 550 | mm |
| Overall Length | 3165 | mm |
| Length to Fork Face | 2060 | mm |
| Overall Width | 1100 | mm |
| Fork Dimensions | 35X100X1070 | mm |
| Fork Carriage Width | 1040 | mm |
| Ground Clearance Under Mast, Loaded | 110 | mm |
| Minimum Ground Clearance | 100 | mm |
| Aisle Width for 1200 x 1000 Pallet | 3360 | mm |
| Aisle Width for 800 x 1200 Pallet | 3560 | mm |
| Turning Radius | 1690 | mm |
| Travel Speed, Loaded / Unloaded | 9 / 11 | km/h |
| Lift Speed, Loaded / Unloaded | 0.24 / 0.30 | m/s |
| Lowering Speed, Loaded / Unloaded | 0.39 / 0.34 | m/s |
| Maximum Gradeability, Loaded / Unloaded | 15 | % |
| Service Brake Type | Hydraulic + Mechanical | |
| Parking Brake Type | Mechanical | |
| Drive Motor Rated Power, S2 60 min | 5 | kW |
| Lift Motor Rated Power, S3 15% | 5 | kW |
| Drive Control Type | AC |
* Specifications may vary. Contact us for customized configurations.
Supports efficient maneuvering in warehouses and production areas with restricted turning space.
Provides additional load capability while retaining a compact three-wheel layout.
Smooth electric control supports accurate travel and load handling.
Suitable for stable industrial floors and routine indoor material movement.

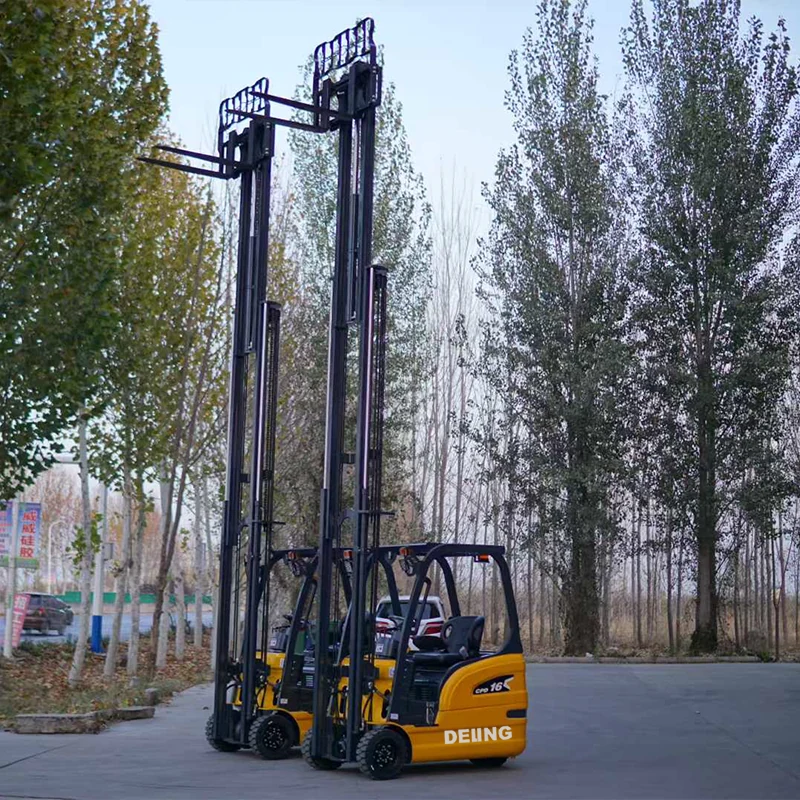

Duplex, triplex and full-free mast options can be selected for doorways and racking systems.
Practical maintenance access and configurable equipment support dealers, rental fleets and end users.
Customize this model to fit your specific working conditions and requirements.

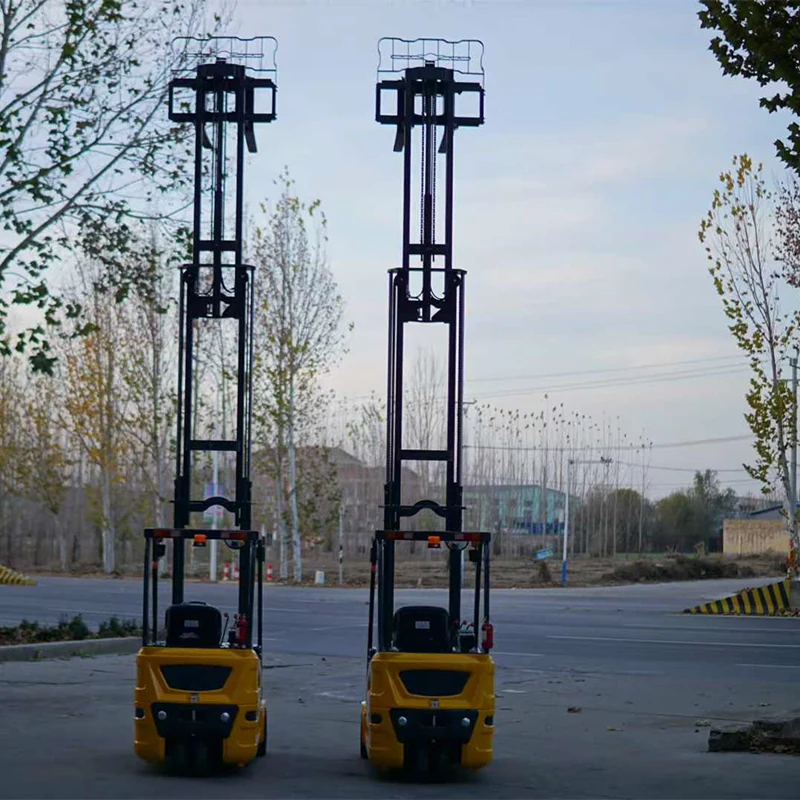

Duplex, triplex and full-free mast options can be selected according to doorway height, rack height and free-lift requirements.
Hydraulic side shifting helps align pallets more precisely without repositioning the truck.
Custom fork length, fork width and fork-positioning configurations are available according to pallet and load dimensions.
Battery capacity, charger type and electrical standard are selected according to shift duration, charging window and destination-market requirements.
Optional work lights, warning beacon, reverse alarm, blue safety light and other site-specific safety devices.
