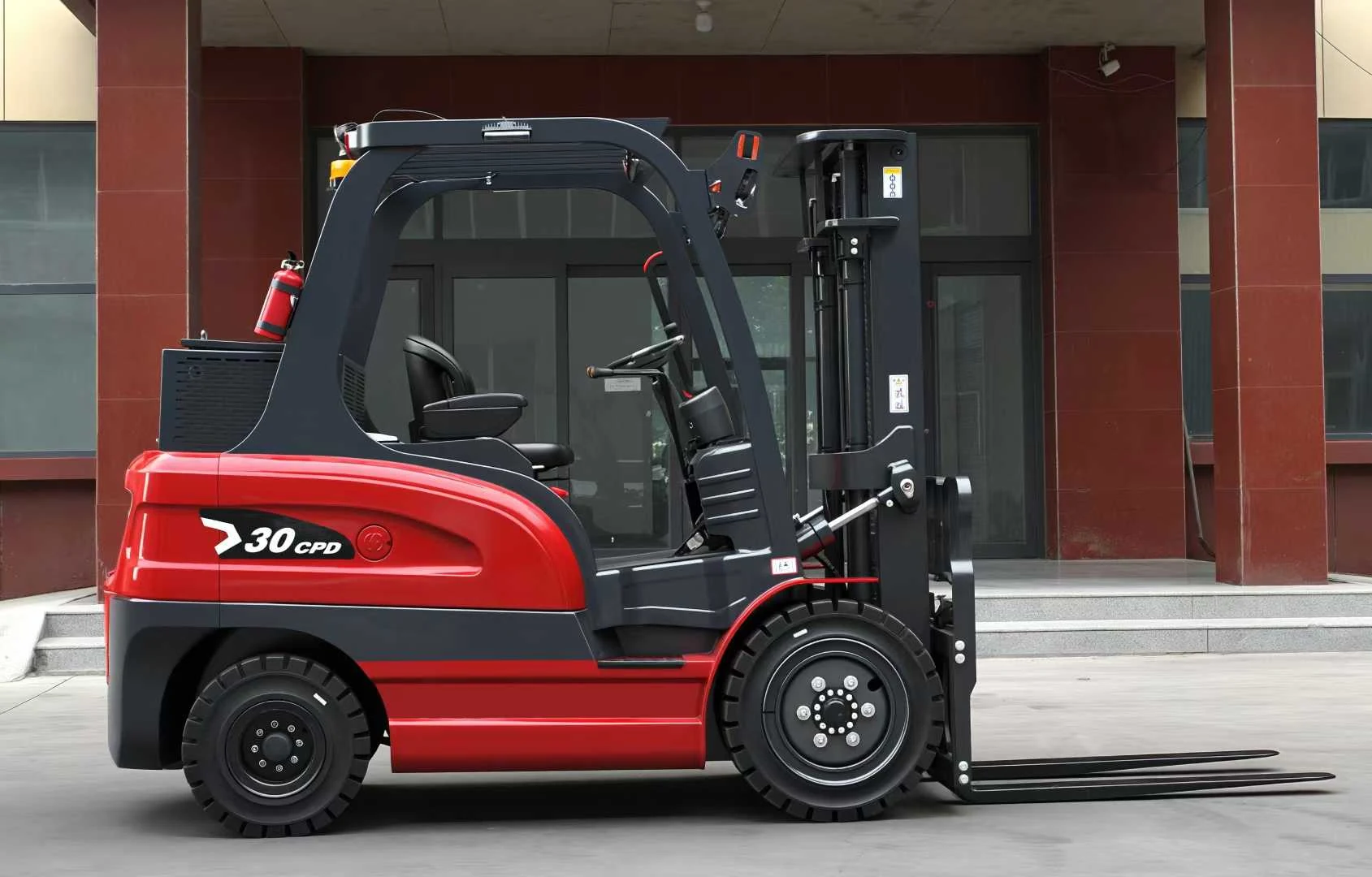

Deling CPD-30 3 ton electric forklift side view

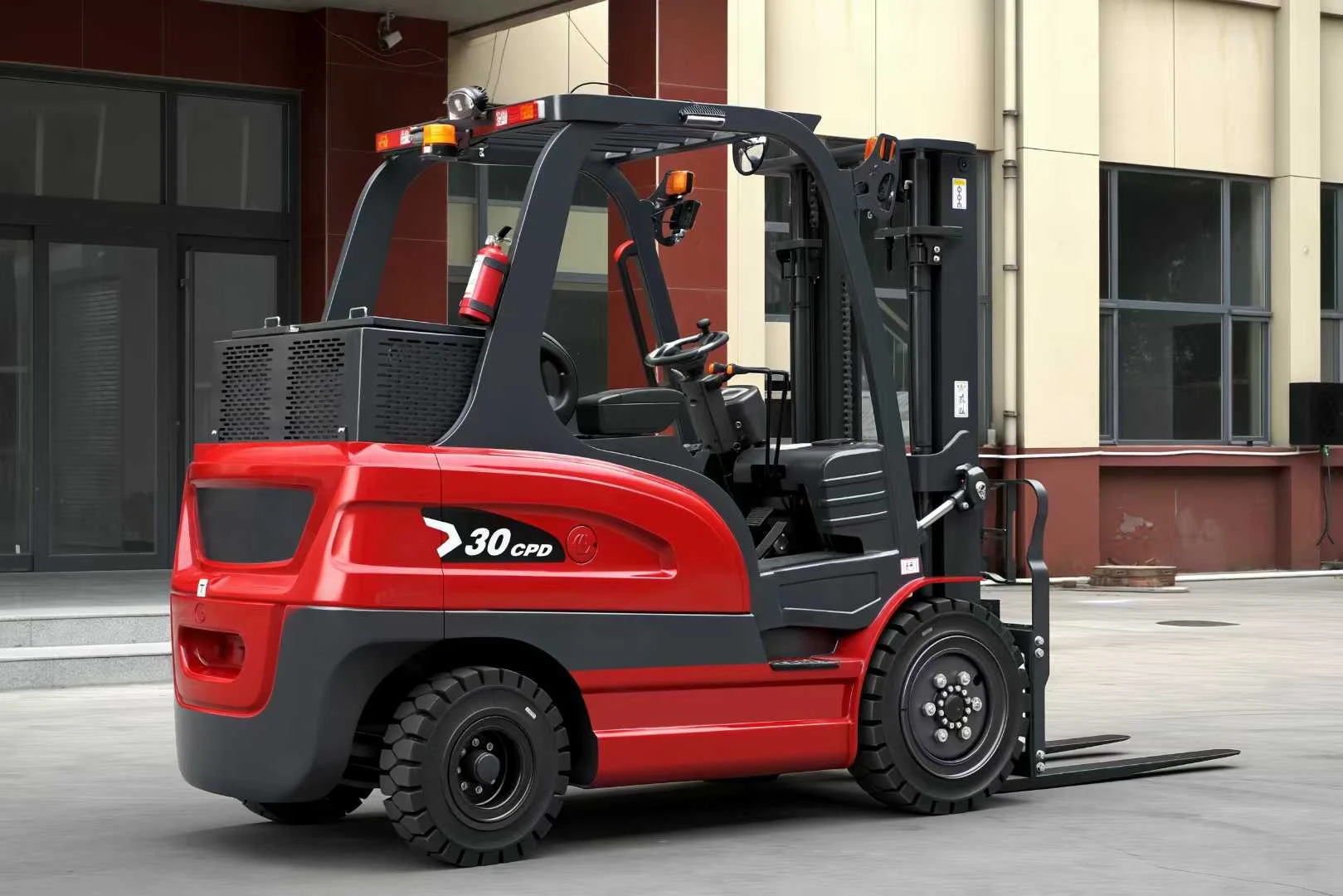

Deling CPD-30 electric forklift rear three-quarter view

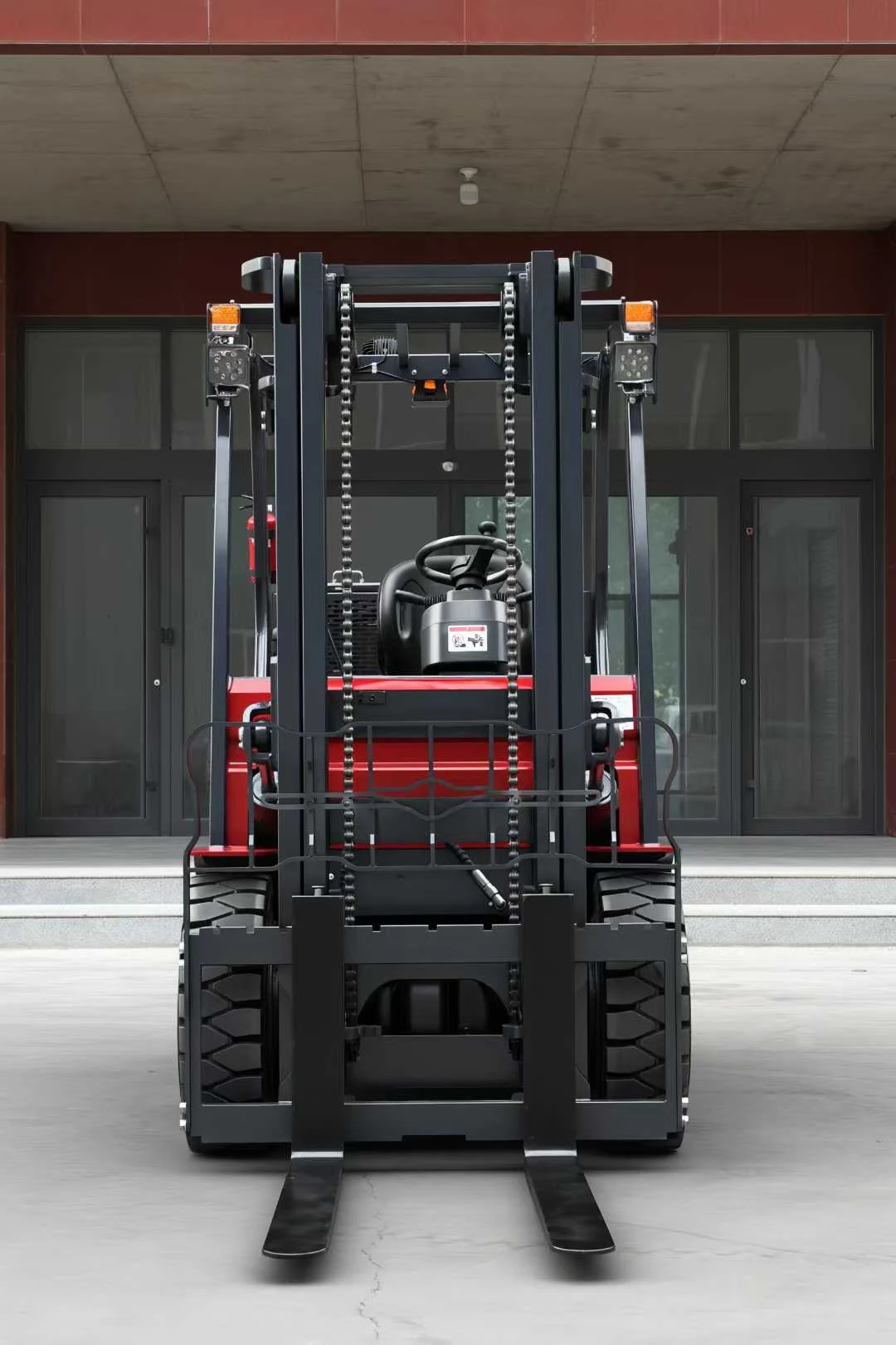

Deling CPD-30 electric forklift front mast view

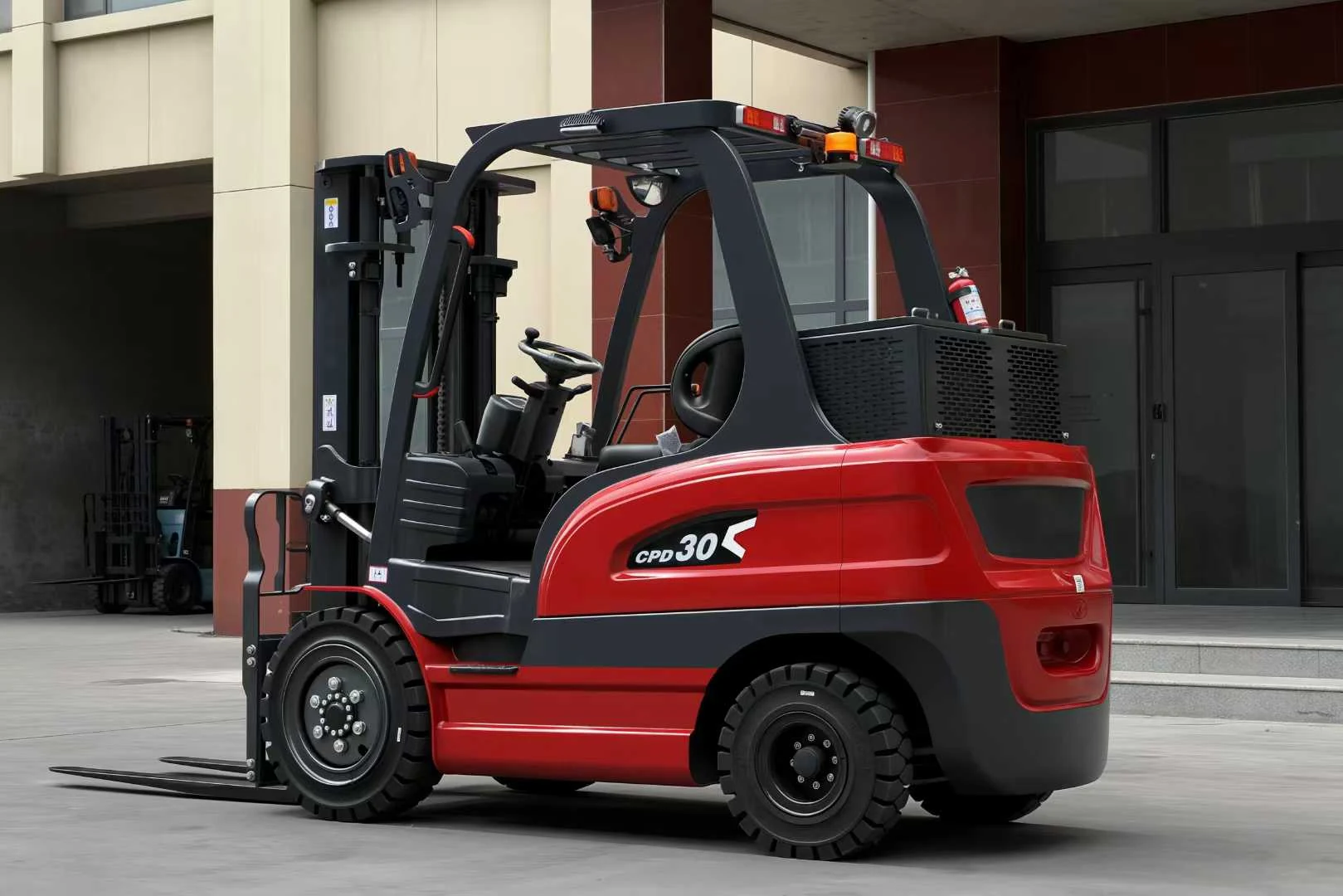

Deling CPD-30 electric forklift rear side view
Deling CPD-30 3 ton electric forklift side view
Deling CPD-30 electric forklift rear three-quarter view
Deling CPD-30 electric forklift front mast view
Deling CPD-30 electric forklift rear side view
Electric Forklifts Forklifts Electric

CPD-30 3 Ton Electric Forklift

Series: CPD30

The Deling CPD-30 is a 3 ton seated electric counterbalance forklift with a 3000 mm standard lift, 2480 mm turning radius, solid tires and AC drive control. It is designed for warehouses, factories, distribution centers and general pallet-handling operations.

Rated Capacity

3000 kg / 3 ton

Lift Height

3000 mm standard; optional mast heights available

Fork Length

1070 mm standard; custom fork lengths available

Mast Type

Duplex Mast, Triplex Mast, Full Free Mast

Tire Type

Solid Tire

AC electric drive control with 11 / 10 (permanent magnet) kW drive motor and 15 / 16 (permanent magnet) kW lift motor. Battery voltage, capacity and charger are configured according to required working hours and destination electrical standards.

Application Scenarios

Container Loading & Unloading Factory Material Transfer Warehouse Pallet Handling
Factory Direct
Export Support
Spare Parts Support
Reply Within 12h

Product Overview

CPD-30 3 Ton Electric Forklift

CPD-30 3 Ton Electric Forklift

The CPD-30 is designed for reliable pallet handling with a rated capacity of 3000 kg at a 500 mm load center. Its seated counterbalance layout, solid tires and AC drive control support stable operation in warehouses, factories and logistics facilities.

Performance and Maneuverability

The standard mast provides a 3000 mm lift height. The truck has a 2480 mm turning radius, an overall width of 1220 mm and travel speeds of 12/13 km/h loaded/unloaded. Maximum gradeability is 14/15% according to the source configuration.

Electric Power System

The electric power system uses a 11 / 10 (permanent magnet) kW drive motor and a 15 / 16 (permanent magnet) kW lift motor. Battery voltage, capacity and charger are configured according to required working hours, charging conditions and destination-market standards.

Recommended Applications

  • Warehouse pallet handling and rack replenishment
  • Factory raw-material and finished-goods transfer
  • Distribution centers, loading bays and logistics operations
  • Dealer, importer and rental fleet applications

Available Configurations

Duplex, triplex and full-free mast options, side shifter, custom forks, enclosed cab, warning equipment and market-specific battery packages are available. Images may show optional colors, cab styles or mast configurations.

Quick Info

Model Series
CPD30
Rated Capacity
3000 kg / 3 ton
Lift Height
3000 mm standard; optional mast heights available
Fork Length
1070 mm standard; custom fork lengths available
Mast Type
Duplex Mast, Triplex Mast, Full Free Mast
Tire Type
Solid Tire

Technical Data

Technical Specifications

Specification Value Unit
Model CPD30
Power Type Electric
Operation Type Seated
Rated Capacity 3000 kg
Load Center 500 mm
Front Overhang 420 mm
Wheelbase 1860 mm
Service Weight Including Battery 4000ยฑ200 kg
Tire Type, Drive / Steering Solid Tire
Drive Wheel Size 28x9-15 mm
Steering Wheel Size 650-10 mm
Drive / Steering Wheel Quantity 2X/2 mm
Drive Wheel Tread 1000 mm
Steering Wheel Tread 990 mm
Mast / Fork Tilt, Forward / Backward 5/9
Lowered Mast Height 2200 mm
Standard Lift Height 3000 mm
Mast Height at Full Lift 4100 mm
Overhead Guard / Cab Height 2180 mm
Seat Height 1200 mm
Tow Pin Center Height 550 mm
Overall Length 3865 mm
Length to Fork Face 2750 mm
Overall Width 1220 mm
Fork Dimensions 45X122X1070 mm
Fork Carriage Width 1240 mm
Ground Clearance Under Mast, Loaded 160 mm
Minimum Ground Clearance 150 mm
Aisle Width for 1200 x 1000 Pallet 4100 mm
Aisle Width for 800 x 1200 Pallet 4300 mm
Turning Radius 2480 mm
Travel Speed, Loaded / Unloaded 12/13 km/h
Lift Speed, Loaded / Unloaded 0.35/0.45 m/s
Lowering Speed, Loaded / Unloaded 0.4/ 0.36 m/s
Maximum Gradeability, Loaded / Unloaded 14/15 %
Service Brake Type Hydraulic + Mechanical
Parking Brake Type Mechanical
Drive Motor Rated Power, S2 60 min 11 / 10 (permanent magnet) kW
Lift Motor Rated Power, S3 15% 15 / 16 (permanent magnet) kW
Battery Voltage / Rated Capacity Configured to order Ah
Drive Control Type AC

* Specifications may vary. Contact us for customized configurations.

Why Choose This Model

Key Features

01

3 Ton Rated Capacity

Rated for 3000 kg at a 500 mm load center for routine industrial pallet handling.

02

3000 mm Standard Lift

Standard mast height covers common stacking and loading work, with optional mast configurations available.

03

2480 mm Turning Radius

Supports predictable maneuvering in warehouse aisles, factory routes and loading areas.

04

AC Electric Drive Control

AC control supports smooth acceleration, responsive travel and reduced routine maintenance.

05

Solid Tire Chassis

Solid drive and steering tires provide stable operation on prepared industrial floors.

06

Configurable Export Package

Battery, charger, mast, cab, forks and safety equipment can be matched to the destination market and application.

Customization

Optional Configurations

Customize this model to fit your specific working conditions and requirements.

Mast Configuration

Duplex, triplex and full-free mast options can be selected according to doorway height, rack height and free-lift requirements.

Enclosed Cab

Optional enclosed cab configurations are available for weather protection and outdoor or cold-storage operating conditions.

Side Shifter

Hydraulic side shifting improves pallet alignment without repositioning the forklift.

Fork and Carriage Options

Custom fork length, fork width and fork-positioning options can be matched to pallet and load dimensions.

Battery and Charger Package

Battery voltage, capacity, charger type and plug standard are configured according to shift duration and local electrical requirements.

Safety and Warning Equipment

Optional work lights, warning beacon, reverse alarm, blue safety light and other site-specific safety devices.

Common Questions

Frequently Asked Questions

Can the machines be customized for different markets?

Yes. Capacity, mast height, fork length, battery type, engine configuration, tire type, color, logo stickers and safety accessories can be configured according to the customer’s working condition and destination market.

What information is needed for a quotation?

Please provide the required capacity, lift height, power type, working environment, pallet size, quantity, destination country and any optional configuration requirements. Photos or videos of the worksite are also helpful.

How are the products packed for export?

Machines can be prepared with export packing, protective wrapping, loading support and basic documentation. Packaging and loading methods can be adjusted according to container shipment or project delivery requirements.

Do you support spare parts and after-sales guidance?

Yes. Spare parts packages, operation guidance and remote technical support can be provided for overseas buyers, dealers and project customers.

How should I choose between electric and diesel machines?

Electric forklifts and warehouse trucks are suitable for indoor handling, warehouses, workshops and low-noise operating environments. Diesel or engine-powered machines are better for outdoor yards, construction sites, rough terrain, long continuous operation and heavy-duty use. Tell us your load weight, floor condition, working hours and local service requirements, and we can recommend a suitable configuration.

Can you supply lithium battery or lead-acid battery configurations?

Yes. Electric forklifts, pallet trucks and stackers can be matched with lithium battery or lead-acid battery options according to the target market, budget, charging habit and working time. Lithium batteries are usually easier for opportunity charging and daily maintenance, while lead-acid batteries can be suitable for cost-sensitive projects.

Can the mast and lift height be configured?

Yes. We can discuss duplex mast, triplex mast and full free mast options according to the required lifting height, container entry height, warehouse door height and pallet racking layout. Fork length, side shifter, solid tire and cabin options can also be discussed before quotation.

What export documents can you provide?

For normal export orders, we can provide commercial invoice, packing list, machine photos, loading photos and basic product information. Other documents such as certificate documents, special marking, dealer documents or market-specific files should be confirmed before order placement.

What is the normal production and delivery time?

Lead time depends on model, quantity, battery or engine configuration, mast height, optional attachments and current production schedule. Standard models are usually easier to arrange, while customized configurations need additional confirmation. We recommend confirming the target delivery date before quotation.

How do I choose a concrete delivery pump model?

Please provide the pumping distance, vertical height, aggregate size, concrete mix condition, local power supply, jobsite space and whether you prefer motor or diesel power. These details help us recommend a suitable delivery value, pipe diameter and power configuration.

Can products be adjusted for different market requirements?

For distributors and importers, we can discuss market-oriented configurations such as voltage, charger type, tire type, warning lights, color, labels, spare parts package and documentation requirements. Final configuration should be confirmed according to the target country and application environment.

Can you support distributor branding or private label?

Distributor branding, color preference, logo labels and market-specific nameplate requirements can be discussed before production. Private label details depend on order quantity, product type and artwork confirmation.

Get a Fast Quote for
CPD-30 3 Ton Electric Forklift

Tell us your working conditions and quantity requirements. Our team will respond within 12 hours with a competitive price and full specification sheet.

Fast Response

We typically reply within 12 hours on business days.

No Obligation

Free quote with full specification and pricing details.

Direct Contact

sales@delingequipment.com ยท WhatsApp +86 186 3292 9428

Request a Quote

Fill in your requirements and we'll get back to you promptly.

Sending your inquiry...

Your information is kept private. We respond within 12 hours.

You May Also Like

Related Products

CPD25

CPD-25 2.5 Ton Electric Forklift

The Deling CPD-25 is a 2.5 ton seated electric counterbalance forklift with a 3000 mm standard lift, 2320 mm turning radius, solid tires and AC drive control. It is designed for warehouses, factories, distribution centers and general pallet-handling operations.

Capacity: 2500 kg / 2.5 ton

View Details

CPD35

CPD-35 3.5 Ton Electric Forklift

The Deling CPD-35 is a 3.5 ton seated electric counterbalance forklift with a 3000 mm standard lift, 2480 mm turning radius, solid tires and AC drive control. It is designed for warehouses, factories, distribution centers and general pallet-handling operations.

Capacity: 3500 kg / 3.5 ton

View Details

CPD20

CPD-20 2 Ton Electric Forklift

The Deling CPD-20 is a 2 ton seated electric counterbalance forklift with a 3000 mm standard lift, 2230 mm turning radius, solid tires and AC drive control. It is designed for warehouses, production lines and indoor logistics areas where compact dimensions and precise maneuvering are important.

Capacity: 2000 kg / 2 ton

View Details

CPD40

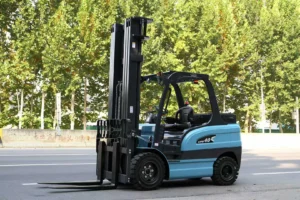

CPD-40 4 Ton Electric Forklift
