Series: CPD20

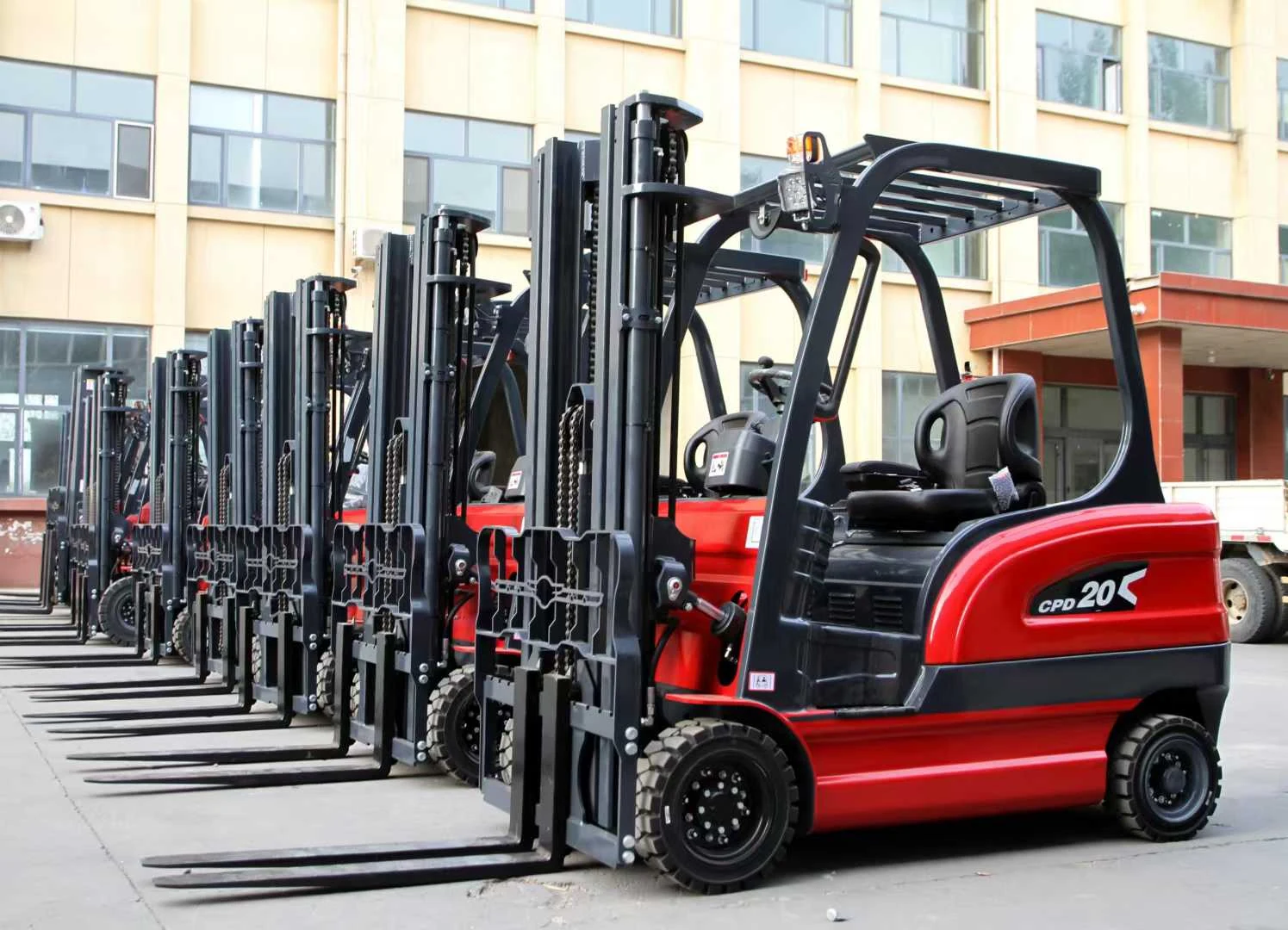

The Deling CPD-20 is a 2 ton seated electric counterbalance forklift with a 3000 mm standard lift, 2230 mm turning radius, solid tires and AC drive control. It is designed for warehouses, production lines and indoor logistics areas where compact dimensions and precise maneuvering are important.
Rated Capacity
2000 kg / 2 ton
Lift Height
3000 mm standard; optional mast heights available
Fork Length
1070 mm standard; custom fork lengths available
Mast Type
Duplex Mast, Triplex Mast, Full Free Mast
Tire Type
Solid Tire
AC electric drive control with 5.5 kW drive motor and 5.5 kW lift motor. Battery voltage, capacity and charger are configured according to required working hours and destination electrical standards.
Application Scenarios
The CPD-20 is designed for reliable pallet handling with a rated capacity of 2000 kg at a 500 mm load center. Its seated counterbalance layout, solid tires and AC drive control support stable operation in warehouses, factories and logistics facilities.
The standard mast provides a 3000 mm lift height. The truck has a 2230 mm turning radius, an overall width of 1100 mm and travel speeds of 10/12 km/h loaded/unloaded. Maximum gradeability is 14/15% according to the source configuration.
The electric power system uses a 5.5 kW drive motor and a 5.5 kW lift motor. Battery voltage, capacity and charger are configured according to required working hours, charging conditions and destination-market standards.
Duplex, triplex and full-free mast options, side shifter, custom forks, enclosed cab, warning equipment and market-specific battery packages are available. Images may show optional colors, cab styles or mast configurations.
| Specification | Value | Unit |
|---|---|---|
| Model | CPD20 | |
| Power Type | Electric | |
| Operation Type | Seated | |
| Rated Capacity | 2000 | kg |
| Load Center | 500 | mm |
| Front Overhang | 300 | mm |
| Wheelbase | 1600 | mm |
| Service Weight Including Battery | 2800±100 | kg |
| Tire Type, Drive / Steering | Solid Tire | |
| Drive Wheel Size | 18X7-10 | mm |
| Steering Wheel Size | 16*6-8 | mm |
| Drive / Steering Wheel Quantity | 2X/2 | mm |
| Drive Wheel Tread | 950 | mm |
| Steering Wheel Tread | 950 | mm |
| Mast / Fork Tilt, Forward / Backward | 5/9 | |
| Lowered Mast Height | 2160 | mm |
| Standard Lift Height | 3000 | mm |
| Mast Height at Full Lift | 4000 | mm |
| Overhead Guard / Cab Height | 2120 | mm |
| Seat Height | 1050 | mm |
| Tow Pin Center Height | 510 | mm |
| Overall Length | 3410 | mm |
| Length to Fork Face | 2300 | mm |
| Overall Width | 1100 | mm |
| Fork Dimensions | 40X122X1070 | mm |
| Fork Carriage Width | 1040 | mm |
| Ground Clearance Under Mast, Loaded | 110 | mm |
| Minimum Ground Clearance | 80 | mm |
| Aisle Width for 1200 x 1000 Pallet | 3800 | mm |
| Aisle Width for 800 x 1200 Pallet | 4000 | mm |
| Turning Radius | 2230 | mm |
| Travel Speed, Loaded / Unloaded | 10/12 | km/h |
| Lift Speed, Loaded / Unloaded | 0.24/0.3 | m/s |
| Lowering Speed, Loaded / Unloaded | 0.4/ 0.36 | m/s |
| Maximum Gradeability, Loaded / Unloaded | 14/15 | % |
| Service Brake Type | Hydraulic + Mechanical | |
| Parking Brake Type | Mechanical | |
| Drive Motor Rated Power, S2 60 min | 5.5 | kW |
| Lift Motor Rated Power, S3 15% | 5.5 | kW |
| Battery Voltage / Rated Capacity | Configured to order | Ah |
| Drive Control Type | AC |
* Specifications may vary. Contact us for customized configurations.
Rated for 2000 kg at a 500 mm load center for routine industrial pallet handling.
Standard mast height covers common stacking and loading work, with optional mast configurations available.
Supports predictable maneuvering in warehouse aisles, factory routes and loading areas.
AC control supports smooth acceleration, responsive travel and reduced routine maintenance.
Solid drive and steering tires provide stable operation on prepared industrial floors.
Battery, charger, mast, cab, forks and safety equipment can be matched to the destination market and application.
Customize this model to fit your specific working conditions and requirements.
Duplex, triplex and full-free mast options can be selected according to doorway height, rack height and free-lift requirements.
Optional enclosed cab configurations are available for weather protection and outdoor or cold-storage operating conditions.
Hydraulic side shifting improves pallet alignment without repositioning the forklift.
Custom fork length, fork width and fork-positioning options can be matched to pallet and load dimensions.
Battery voltage, capacity, charger type and plug standard are configured according to shift duration and local electrical requirements.
Optional work lights, warning beacon, reverse alarm, blue safety light and other site-specific safety devices.
