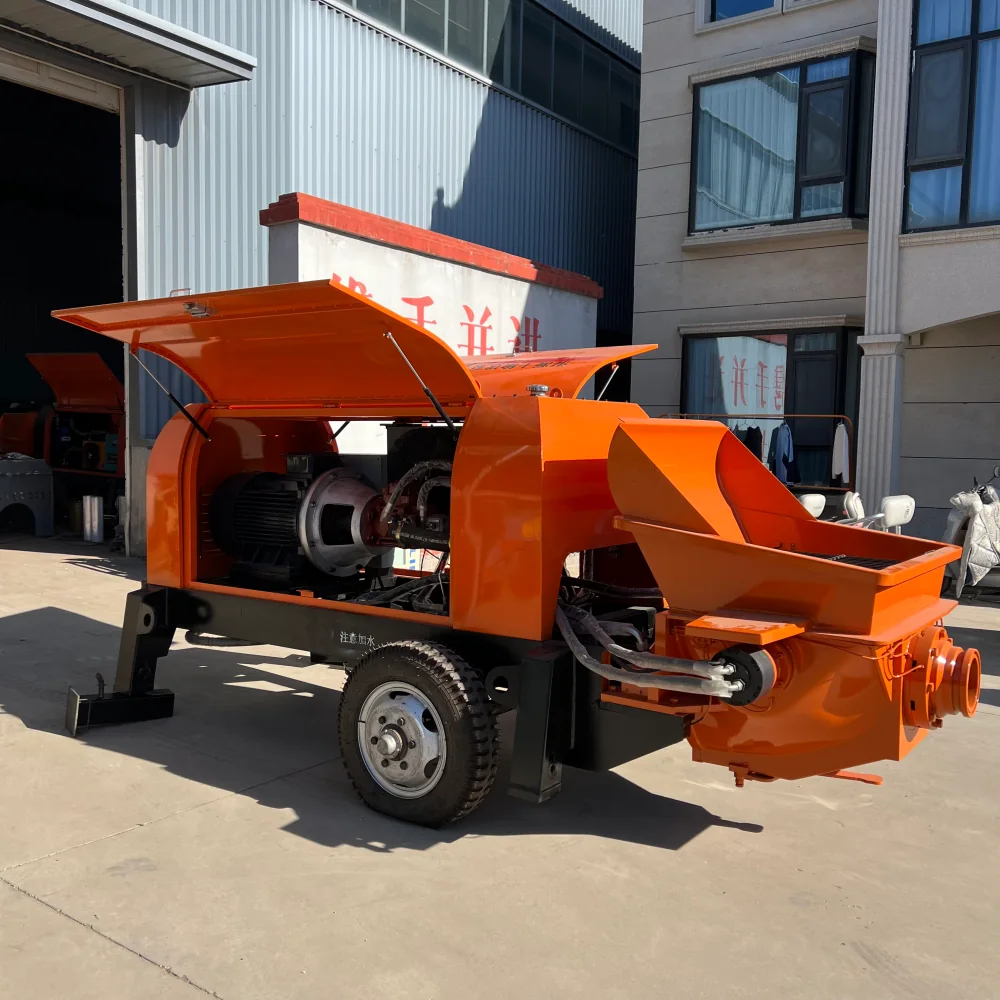

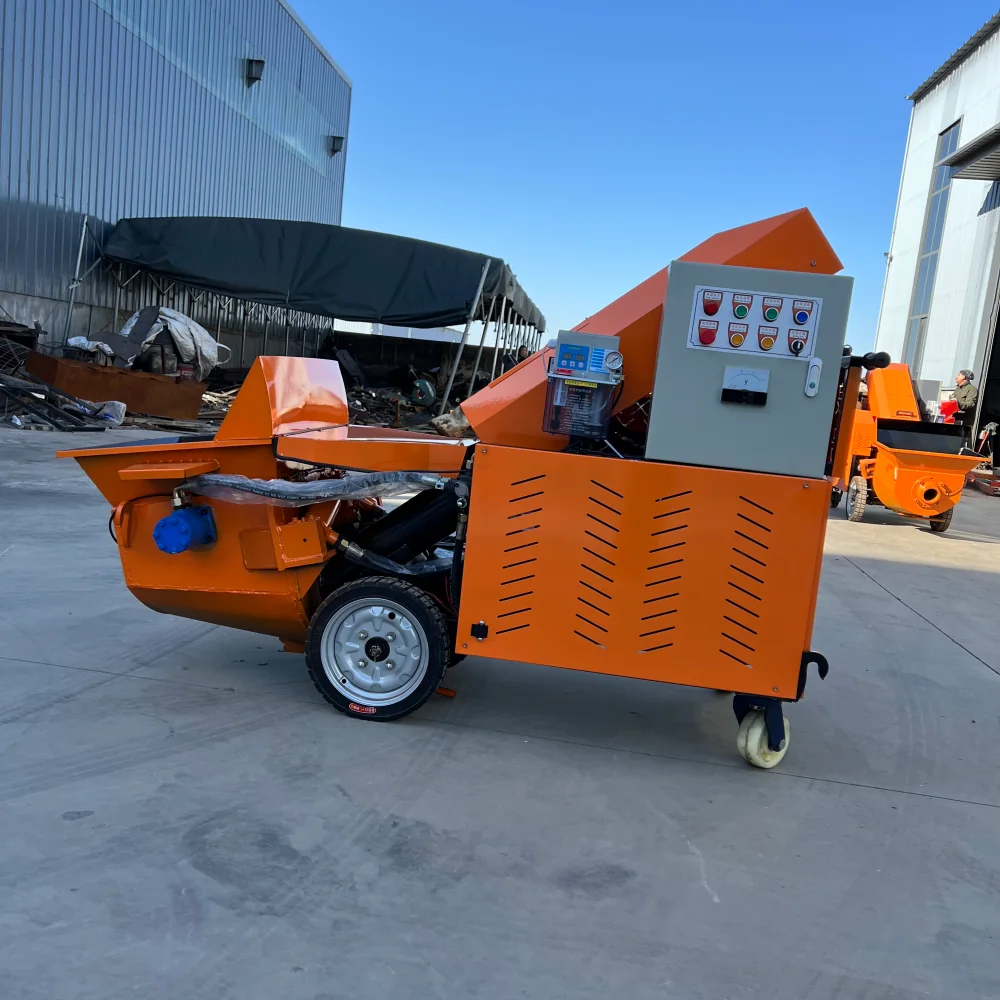

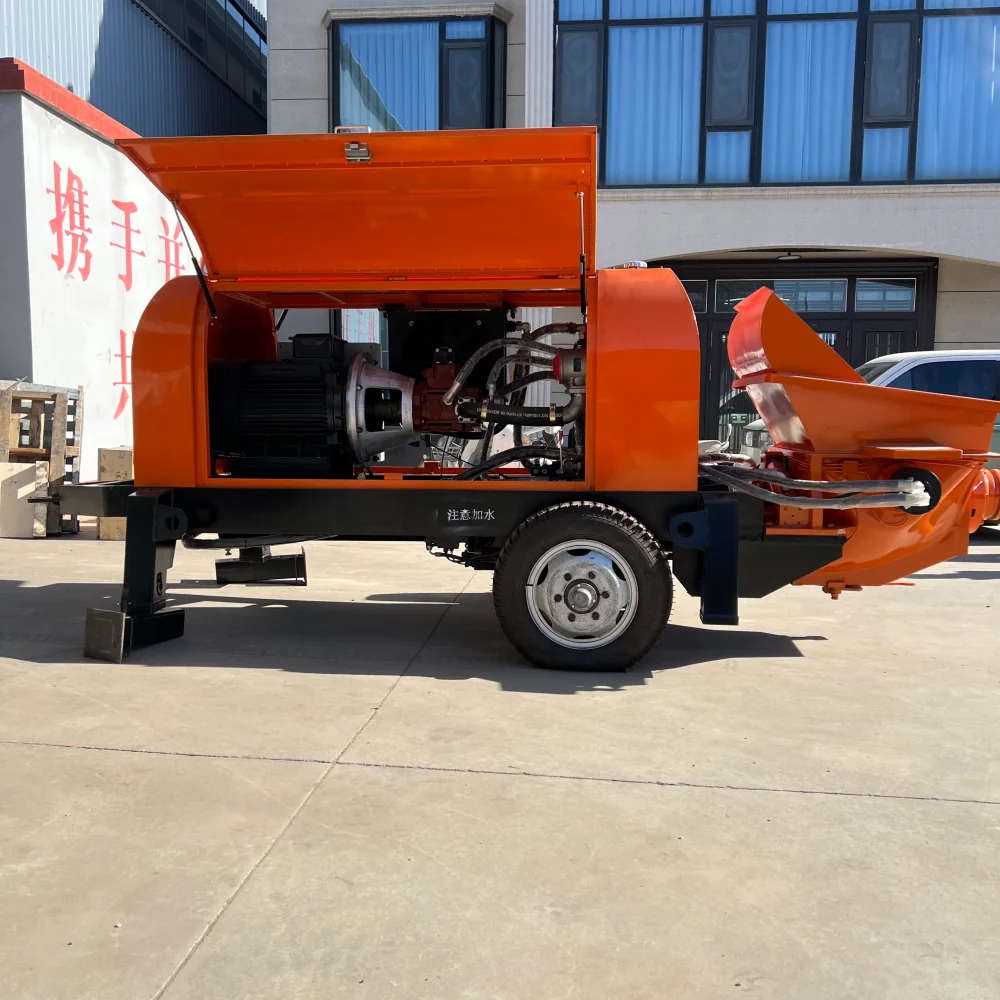

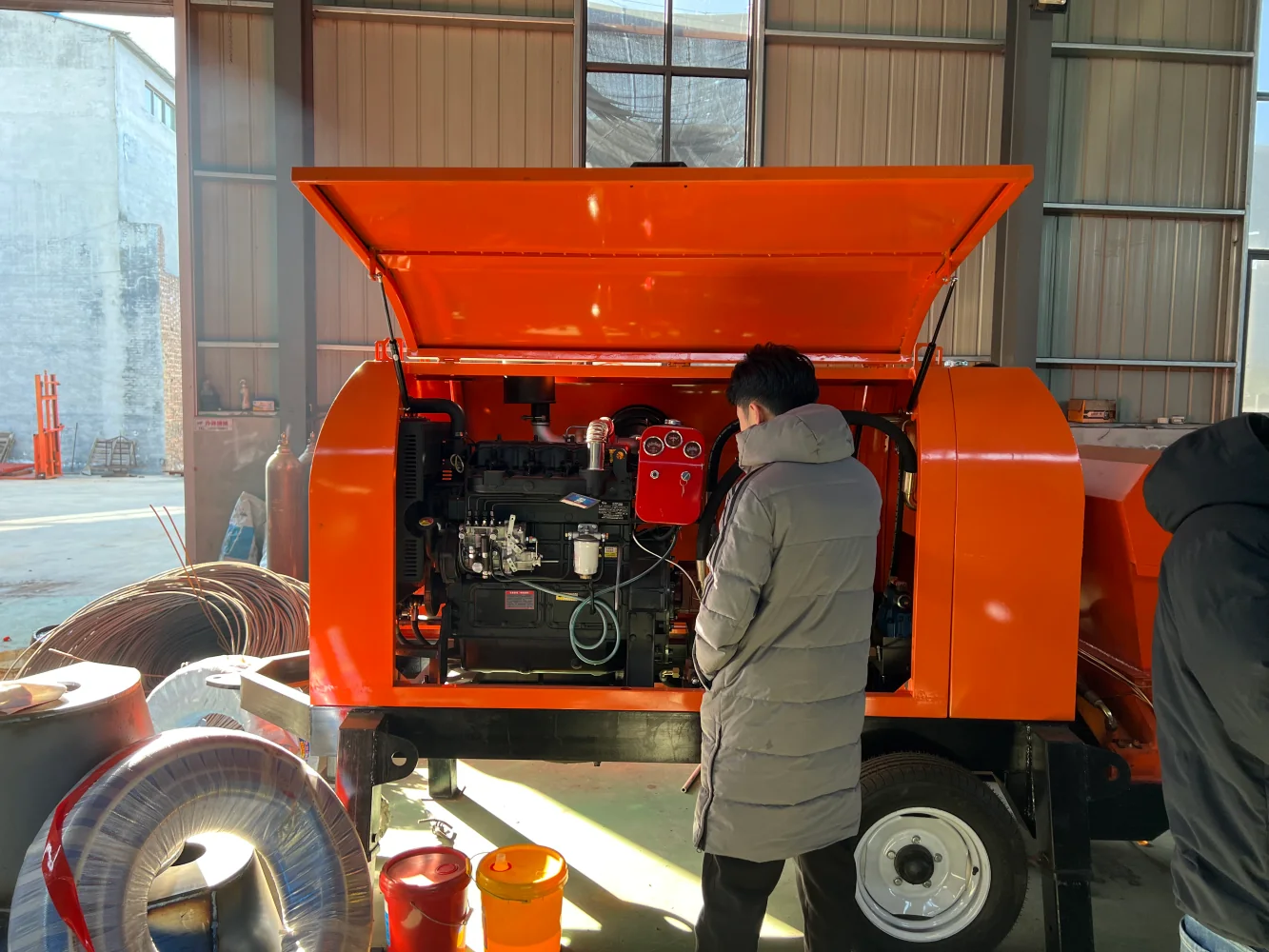

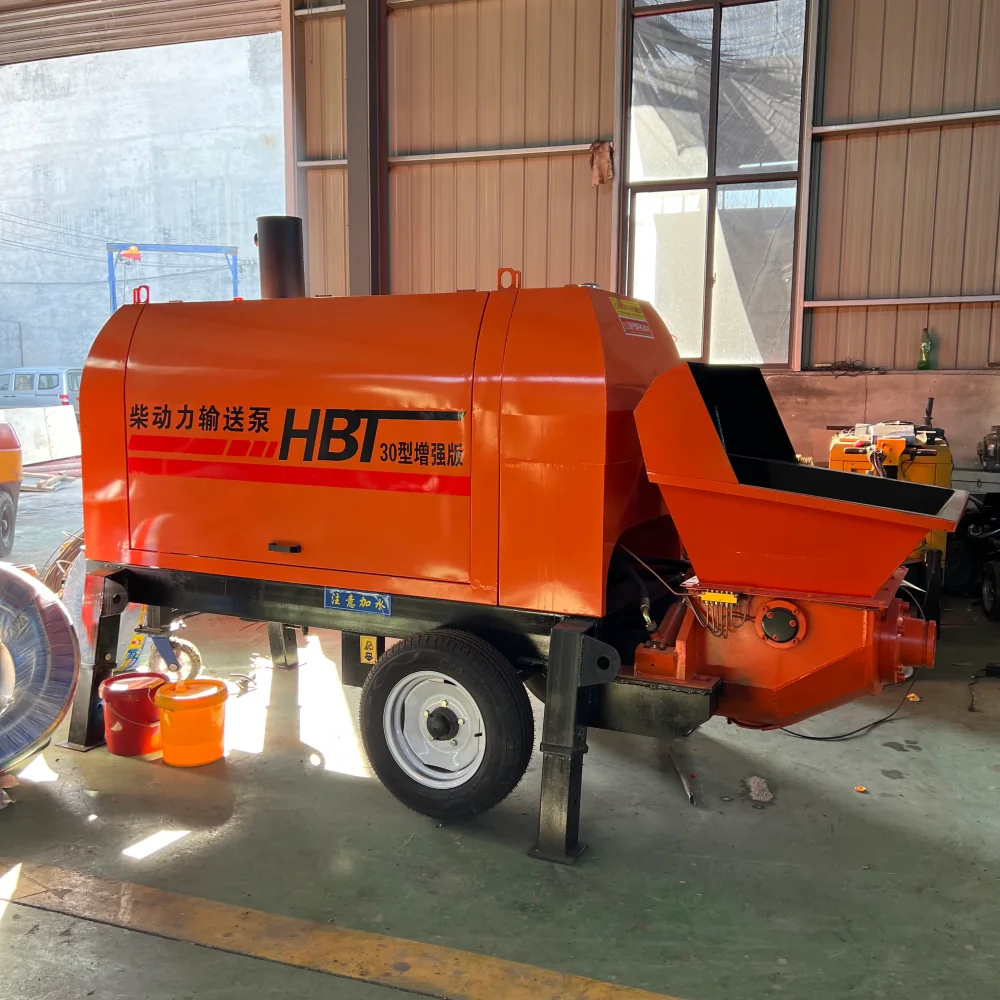

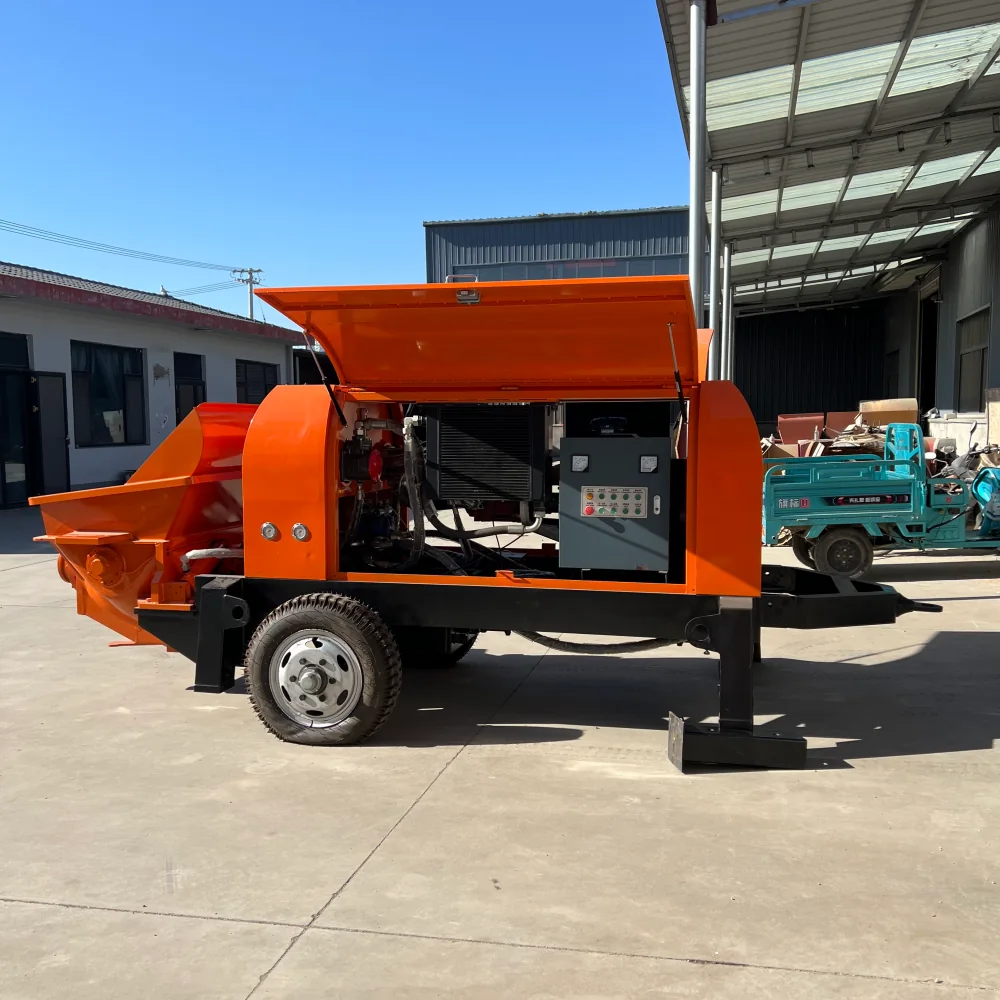

Trailer Concrete Mixer Pump product image 1
Trailer Concrete Mixer Pump product image 2
Trailer Concrete Mixer Pump product image 3
Trailer Concrete Mixer Pump product image 4
Trailer Concrete Mixer Pump product image 5
Trailer Concrete Mixer Pump product image 6
Trailer Concrete Mixer Pump product image 1
Trailer Concrete Mixer Pump product image 2
Trailer Concrete Mixer Pump product image 3
Trailer Concrete Mixer Pump product image 4
Trailer Concrete Mixer Pump product image 5
Trailer Concrete Mixer Pump product image 6
Concrete Pumps Diesel Electric

Trailer Concrete Delivery Pump

Series: Model 20-80 Motor / Diesel Series

A trailer concrete delivery pump series covering electric motor and diesel models, with 12-60 m³/h delivery value, 20-240 m vertical delivery distance and 60-450 m horizontal delivery distance.

Rated Capacity

12-60 m³/h delivery output

Lift Height

Vertical delivery distance 20-240 m

Fork Length

Not applicable

Tire Type

Pneumatic Tire

Electric motor models use 380V power with 15-110 kW motor options. Diesel models use 4102, 4105, 4108, 6105 or 6108 diesel engine references according to output model.

Application Scenarios

Concrete Pumping for Building Projects Construction Site Material Handling
Factory Direct
Export Support
Spare Parts Support
Reply Within 12h

Product Overview

Trailer Concrete Delivery Pump

Trailer Concrete Delivery Pump Overview

The trailer concrete delivery pump is used for concrete conveying on building, housing and small to medium construction projects. Electric and diesel versions can be selected according to site power supply and required delivery distance.

Typical Applications

  • Building construction concrete placement
  • Rural housing and small commercial projects
  • Foundation and floor pouring
  • Remote or flexible pumping jobs

Main Technical Parameters

  • Series: Delivery Pump Motor / Delivery Pump Diesel
  • Reference Models: Model 20 / 30 / 40 / 50 / 60 / 80
  • Delivery Value: 12-60 m³/h
  • Electric Motor Power Range: 15-110 kW
  • Diesel Engine Reference: 4102 / 4105 / 4108 / 6105 / 6108
  • Vertical Delivery Distance: 20-240 m
  • Horizontal Delivery Distance: 60-450 m
  • Iron Pipe Diameter: 80 / 100 / 125 mm
  • Aggregate Size: 0.5-2 / 0.5-3 / 0.5-4 cm
  • Supply Voltage for Electric Models: 380 V
The above parameters are organized according to the supplier brochures provided for website import. Final order specifications should be confirmed according to the selected configuration, working condition and quotation sheet.

Quick Info

Model Series
Model 20-80 Motor / Diesel Series
Rated Capacity
12-60 m³/h delivery output
Lift Height
Vertical delivery distance 20-240 m
Fork Length
Not applicable
Tire Type
Pneumatic Tire

Technical Data

Technical Specifications

Specification Value Unit
Series Delivery Pump Motor / Delivery Pump Diesel
Reference Models Model 20 / 30 / 40 / 50 / 60 / 80
Delivery Value 12-60 m³/h
Electric Motor Power Range 15-110 kW
Diesel Engine Reference 4102 / 4105 / 4108 / 6105 / 6108
Vertical Delivery Distance 20-240 m
Horizontal Delivery Distance 60-450 m
Iron Pipe Diameter 80 / 100 / 125 mm
Aggregate Size 0.5-2 / 0.5-3 / 0.5-4 cm
Supply Voltage for Electric Models 380 V
Total Weight Range 450-6500 kg
Overall Size Range 2000 x 800 x 1230 to 6800 x 2600 x 2400 mm

* Specifications may vary. Contact us for customized configurations.

Why Choose This Model

Key Features

01

Integrated Mixing and Pumping

Combines mixer and pump functions to reduce equipment matching work on site.

02

Trailer-Mounted Mobility

Easy to move between construction sites with a compact chassis.

03

Diesel or Electric Option

Power system can be selected according to local electricity and project needs.

04

Stable Pumping Performance

Suitable for small and medium concrete placement applications.

05

Export Packing Support

Pipe set, spare parts and operation guidance can be prepared for overseas buyers.

Customization

Optional Configurations

Customize this model to fit your specific working conditions and requirements.

Diesel or Electric Power

Choose diesel engine or electric motor according to site conditions.

Concrete Pipe Set

Delivery pipe length and accessories can be supplied together.

Remote Control

Optional control system for easier site operation.

Spare Parts Package

Wear parts and maintenance parts can be prepared for export orders.

Custom Paint and Branding

Color and brand stickers can be customized for distributors.

Common Questions

Frequently Asked Questions

Can the machines be customized for different markets?

Yes. Capacity, mast height, fork length, battery type, engine configuration, tire type, color, logo stickers and safety accessories can be configured according to the customer’s working condition and destination market.

What information is needed for a quotation?

Please provide the required capacity, lift height, power type, working environment, pallet size, quantity, destination country and any optional configuration requirements. Photos or videos of the worksite are also helpful.

How are the products packed for export?

Machines can be prepared with export packing, protective wrapping, loading support and basic documentation. Packaging and loading methods can be adjusted according to container shipment or project delivery requirements.

Do you support spare parts and after-sales guidance?

Yes. Spare parts packages, operation guidance and remote technical support can be provided for overseas buyers, dealers and project customers.

How should I choose between electric and diesel machines?

Electric forklifts and warehouse trucks are suitable for indoor handling, warehouses, workshops and low-noise operating environments. Diesel or engine-powered machines are better for outdoor yards, construction sites, rough terrain, long continuous operation and heavy-duty use. Tell us your load weight, floor condition, working hours and local service requirements, and we can recommend a suitable configuration.

Can you supply lithium battery or lead-acid battery configurations?

Yes. Electric forklifts, pallet trucks and stackers can be matched with lithium battery or lead-acid battery options according to the target market, budget, charging habit and working time. Lithium batteries are usually easier for opportunity charging and daily maintenance, while lead-acid batteries can be suitable for cost-sensitive projects.

Can the mast and lift height be configured?

Yes. We can discuss duplex mast, triplex mast and full free mast options according to the required lifting height, container entry height, warehouse door height and pallet racking layout. Fork length, side shifter, solid tire and cabin options can also be discussed before quotation.

What export documents can you provide?

For normal export orders, we can provide commercial invoice, packing list, machine photos, loading photos and basic product information. Other documents such as certificate documents, special marking, dealer documents or market-specific files should be confirmed before order placement.

What is the normal production and delivery time?

Lead time depends on model, quantity, battery or engine configuration, mast height, optional attachments and current production schedule. Standard models are usually easier to arrange, while customized configurations need additional confirmation. We recommend confirming the target delivery date before quotation.

How do I choose a concrete delivery pump model?

Please provide the pumping distance, vertical height, aggregate size, concrete mix condition, local power supply, jobsite space and whether you prefer motor or diesel power. These details help us recommend a suitable delivery value, pipe diameter and power configuration.

Can products be adjusted for different market requirements?

For distributors and importers, we can discuss market-oriented configurations such as voltage, charger type, tire type, warning lights, color, labels, spare parts package and documentation requirements. Final configuration should be confirmed according to the target country and application environment.

Can you support distributor branding or private label?

Distributor branding, color preference, logo labels and market-specific nameplate requirements can be discussed before production. Private label details depend on order quantity, product type and artwork confirmation.

Get a Fast Quote for
Trailer Concrete Delivery Pump

Tell us your working conditions and quantity requirements. Our team will respond within 12 hours with a competitive price and full specification sheet.

Fast Response

We typically reply within 12 hours on business days.

No Obligation

Free quote with full specification and pricing details.

Direct Contact

sales@delingequipment.com · WhatsApp +86 186 3292 9428

Request a Quote

Fill in your requirements and we'll get back to you promptly.

Sending your inquiry...

Your information is kept private. We respond within 12 hours.

You May Also Like

Related Products

CPD25

CPD-25 2.5 Ton Electric Forklift

The Deling CPD-25 is a 2.5 ton seated electric counterbalance forklift with a 3000 mm standard lift, 2320 mm turning radius, solid tires and AC drive control. It is designed for warehouses, factories, distribution centers and general pallet-handling operations.

Capacity: 2500 kg / 2.5 ton

View Details

CPD30

CPD-30 3 Ton Electric Forklift

The Deling CPD-30 is a 3 ton seated electric counterbalance forklift with a 3000 mm standard lift, 2480 mm turning radius, solid tires and AC drive control. It is designed for warehouses, factories, distribution centers and general pallet-handling operations.

Capacity: 3000 kg / 3 ton

View Details

CPD35

CPD-35 3.5 Ton Electric Forklift

The Deling CPD-35 is a 3.5 ton seated electric counterbalance forklift with a 3000 mm standard lift, 2480 mm turning radius, solid tires and AC drive control. It is designed for warehouses, factories, distribution centers and general pallet-handling operations.

Capacity: 3500 kg / 3.5 ton

View Details

KT-3.0T / KT-3.5T / KT-4.0T / KT-5.0T / KT-6.0T

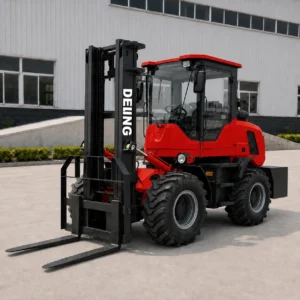

KT Series Rough Terrain Forklift
