Electric Pallet Stackers Warehouse Equipment Electric

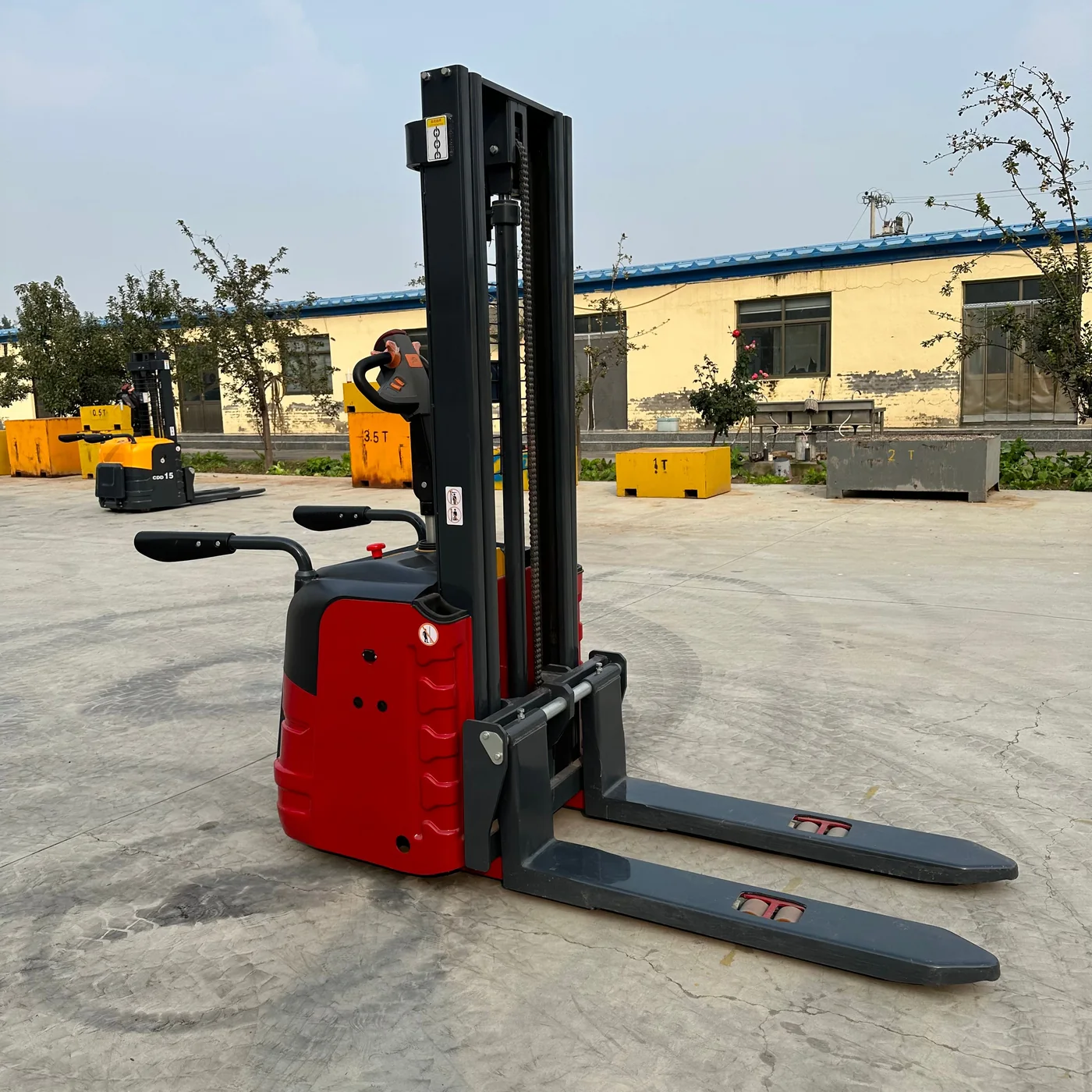

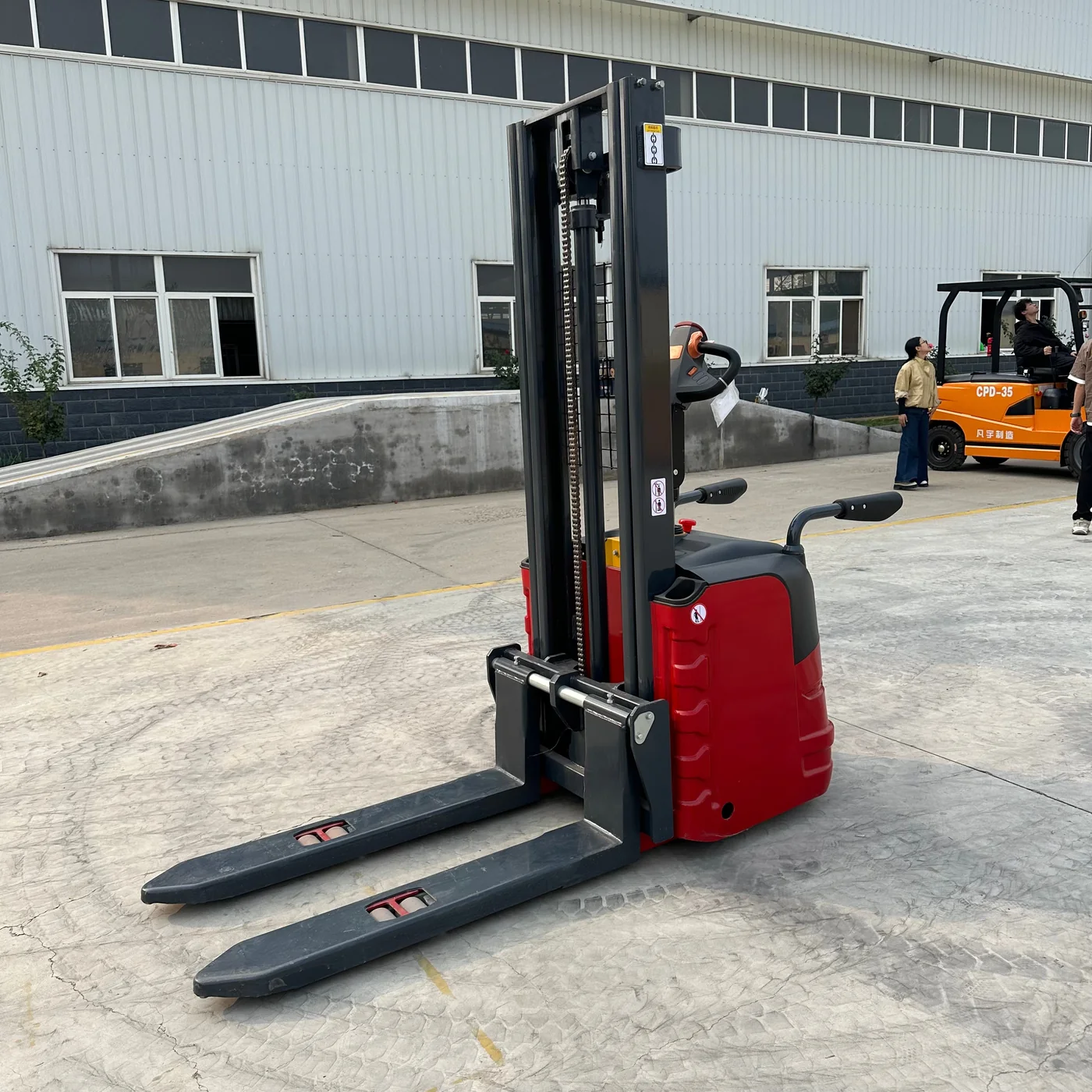

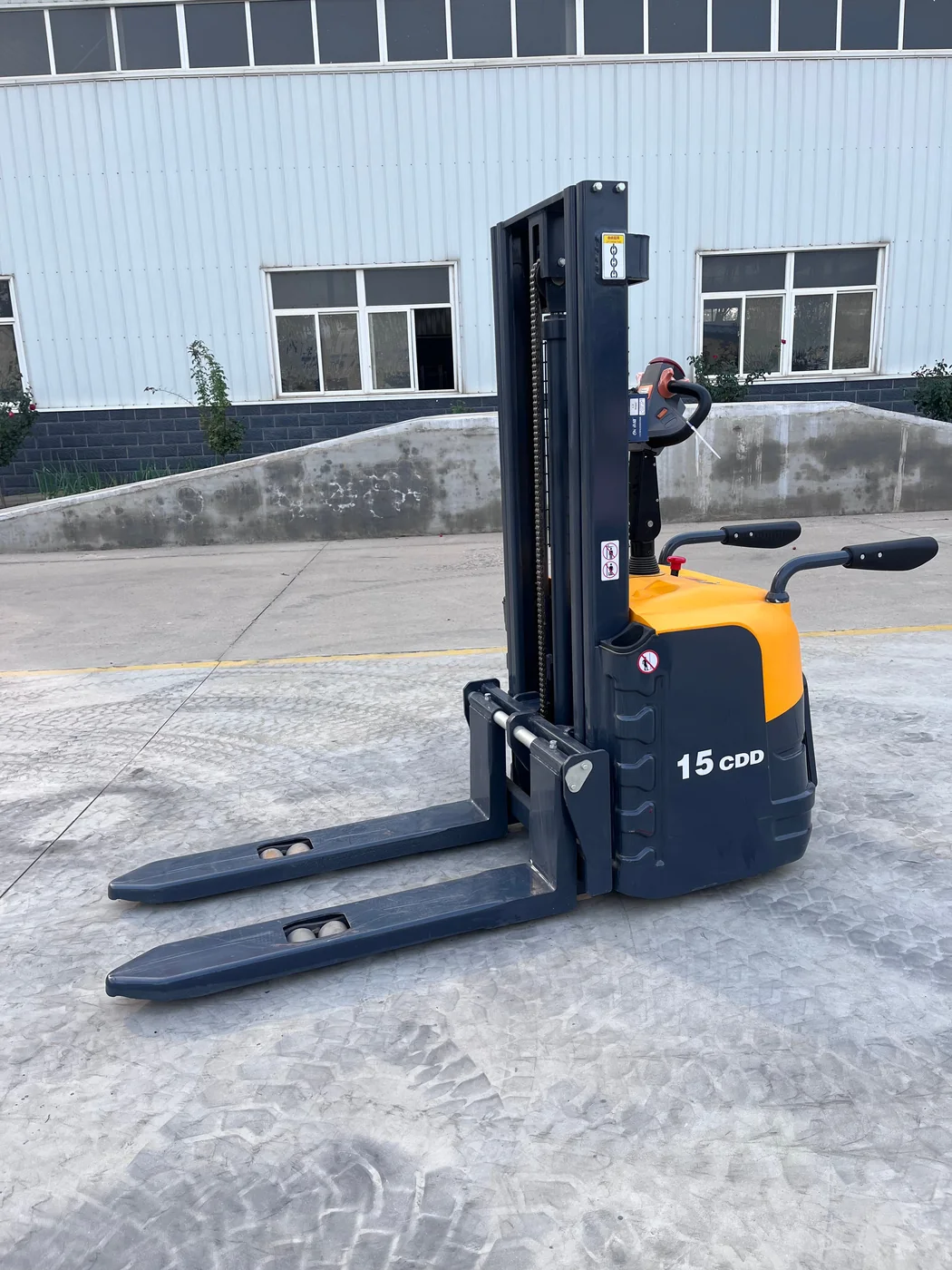

CDD-15 Electric Pallet Stacker

Series: CDD-15

A CDD-15 electric pallet stacker with 1500 kg rated load, 2500 mm standard raise height, 48V / 32Ah battery, 0.8 kW travel motor and 2.2 kW lift motor.

Rated Capacity

1.5 ton / 1500 kg

Lift Height

2500 mm standard, customizable

Fork Length

1130 mm reference

Mast Type

Duplex Mast, Triplex Mast

Tire Type

PU Wheel

48V / 32Ah battery system with 0.8 kW travel motor and 2.2 kW lift motor. Lifting height can be customized according to warehouse racking requirements.

Application Scenarios

Container Loading & Unloading Factory Material Transfer Warehouse Pallet Handling
Factory Direct
Export Support
Spare Parts Support
Reply Within 12h

Product Overview

CDD-15 Electric Pallet Stacker

CDD-15 Electric Pallet Stacker Overview

The CDD-15 electric pallet stacker helps warehouse operators lift and stack pallets in narrow spaces. It is suitable for indoor racking, storage handling and light to medium duty pallet stacking.

Typical Applications

  • Indoor pallet stacking
  • Warehouse rack loading
  • Factory storage handling
  • Small logistics warehouse operations

Main Technical Parameters

  • Model: CDD-15
  • Rated Load: 1500 kg
  • Raise Height: 2500 mm standard, customizable
  • Overall Size: 2050 x 820 x 1850 mm
  • Body Weight: 600 kg
  • Fork Size / Length Reference: 60 x 180 x 1130 mm
  • Battery: 48V / 32Ah
  • Turning Space: 1600 mm
  • Travel Motor: 0.8 kW
  • Lift Motor: 2.2 kW
The above parameters are organized according to the supplier brochures provided for website import. Final order specifications should be confirmed according to the selected configuration, working condition and quotation sheet.

Quick Info

Model Series
CDD-15
Rated Capacity
1.5 ton / 1500 kg
Lift Height
2500 mm standard, customizable
Fork Length
1130 mm reference
Mast Type
Duplex Mast, Triplex Mast
Tire Type
PU Wheel

Technical Data

Technical Specifications

Specification Value Unit
Model CDD-15
Rated Load 1500 kg
Raise Height 2500 mm standard, customizable
Overall Size 2050 x 820 x 1850 mm
Body Weight 600 kg
Fork Size / Length Reference 60 x 180 x 1130 mm
Battery 48V / 32Ah
Turning Space 1600 mm
Travel Motor 0.8 kW
Lift Motor 2.2 kW

* Specifications may vary. Contact us for customized configurations.

Why Choose This Model

Key Features

01

Space-Saving Stacking

Compact body is suitable for narrow warehouses and small storage areas.

02

Electric Lift and Travel

Improves efficiency compared with manual stackers.

03

Custom Lift Height

Mast height can be configured for different racking levels.

04

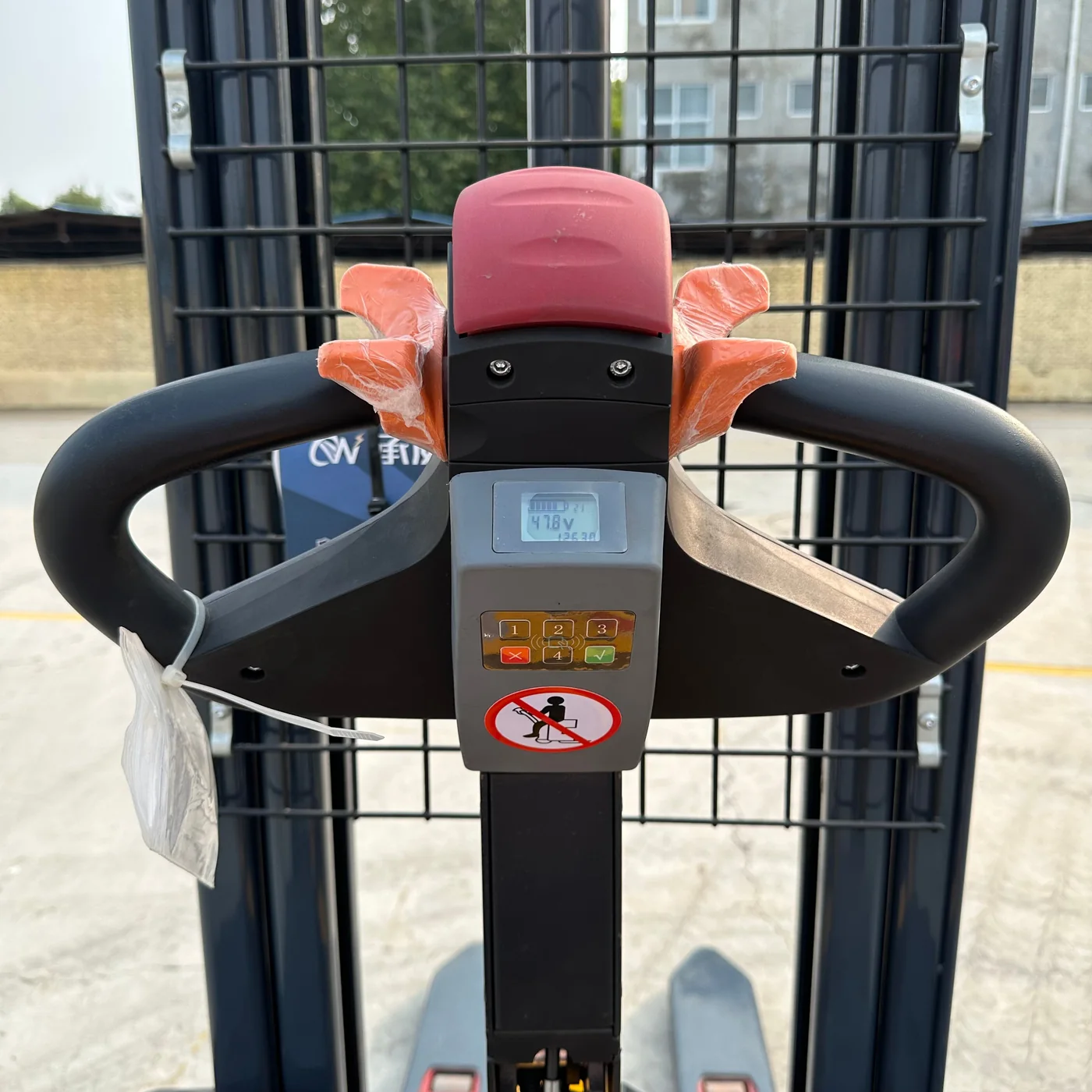

Simple Operator Controls

Clear tiller control layout supports easy operation.

05

Warehouse-Friendly Wheels

PU wheels reduce noise and protect indoor floor surfaces.

Customization

Optional Configurations

Customize this model to fit your specific working conditions and requirements.

Lift Height Option

1600 mm, 2500 mm, 3000 mm and other heights can be configured.

Lithium Battery Option

Fast charging and easier maintenance for frequent use.

Straddle Leg Width

Can be customized for pallet and aisle requirements.

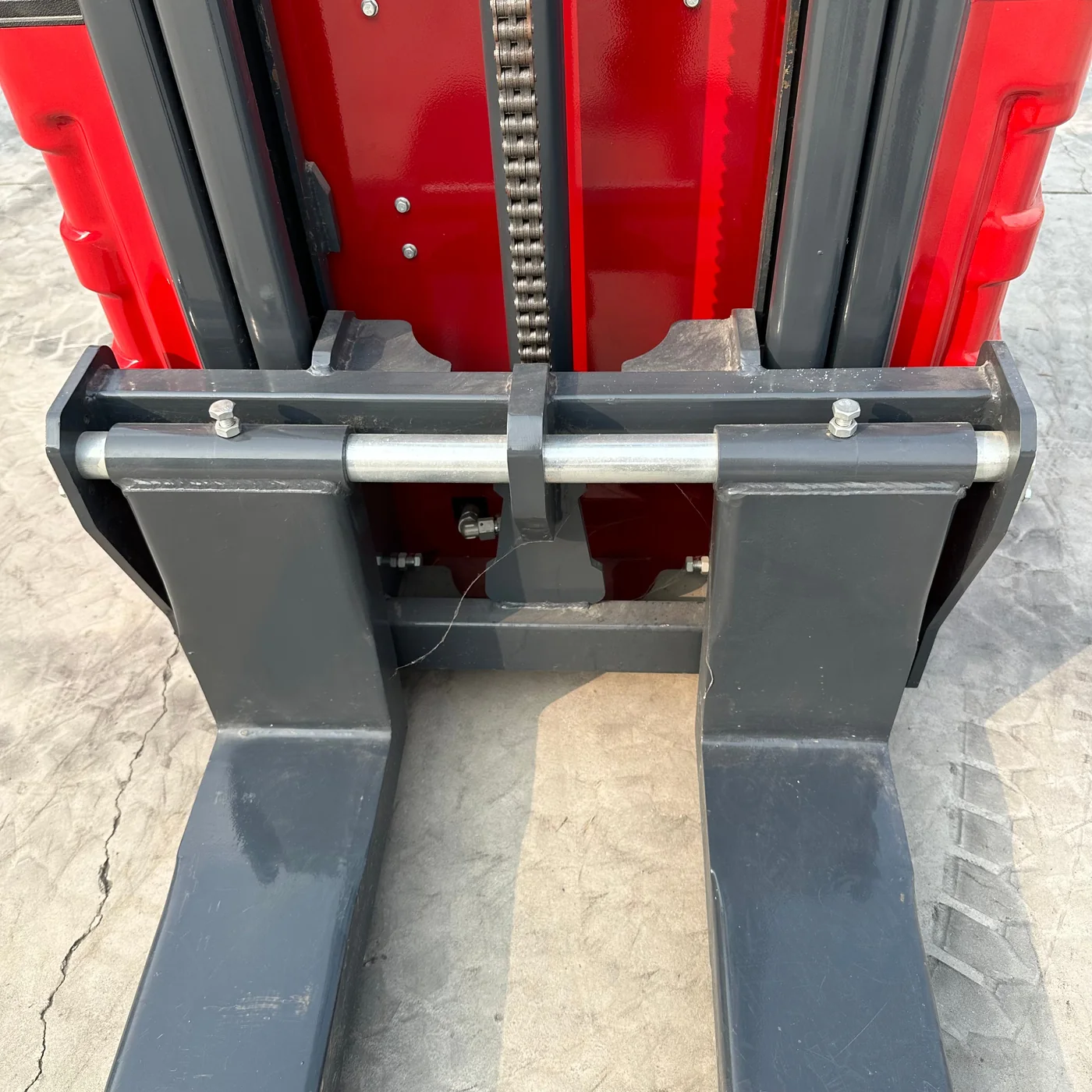

Custom Fork Size

Fork length and width can be adjusted.

Safety Lighting

Optional warning light and horn for busy warehouse operation.

Common Questions

Frequently Asked Questions

Can the machines be customized for different markets?

Yes. Capacity, mast height, fork length, battery type, engine configuration, tire type, color, logo stickers and safety accessories can be configured according to the customer’s working condition and destination market.

What information is needed for a quotation?

Please provide the required capacity, lift height, power type, working environment, pallet size, quantity, destination country and any optional configuration requirements. Photos or videos of the worksite are also helpful.

How are the products packed for export?

Machines can be prepared with export packing, protective wrapping, loading support and basic documentation. Packaging and loading methods can be adjusted according to container shipment or project delivery requirements.

Do you support spare parts and after-sales guidance?

Yes. Spare parts packages, operation guidance and remote technical support can be provided for overseas buyers, dealers and project customers.

How should I choose between electric and diesel machines?

Electric forklifts and warehouse trucks are suitable for indoor handling, warehouses, workshops and low-noise operating environments. Diesel or engine-powered machines are better for outdoor yards, construction sites, rough terrain, long continuous operation and heavy-duty use. Tell us your load weight, floor condition, working hours and local service requirements, and we can recommend a suitable configuration.

Can you supply lithium battery or lead-acid battery configurations?

Yes. Electric forklifts, pallet trucks and stackers can be matched with lithium battery or lead-acid battery options according to the target market, budget, charging habit and working time. Lithium batteries are usually easier for opportunity charging and daily maintenance, while lead-acid batteries can be suitable for cost-sensitive projects.

Can the mast and lift height be configured?

Yes. We can discuss duplex mast, triplex mast and full free mast options according to the required lifting height, container entry height, warehouse door height and pallet racking layout. Fork length, side shifter, solid tire and cabin options can also be discussed before quotation.

What export documents can you provide?

For normal export orders, we can provide commercial invoice, packing list, machine photos, loading photos and basic product information. Other documents such as certificate documents, special marking, dealer documents or market-specific files should be confirmed before order placement.

What is the normal production and delivery time?

Lead time depends on model, quantity, battery or engine configuration, mast height, optional attachments and current production schedule. Standard models are usually easier to arrange, while customized configurations need additional confirmation. We recommend confirming the target delivery date before quotation.

How do I choose a concrete delivery pump model?

Please provide the pumping distance, vertical height, aggregate size, concrete mix condition, local power supply, jobsite space and whether you prefer motor or diesel power. These details help us recommend a suitable delivery value, pipe diameter and power configuration.

Can products be adjusted for different market requirements?

For distributors and importers, we can discuss market-oriented configurations such as voltage, charger type, tire type, warning lights, color, labels, spare parts package and documentation requirements. Final configuration should be confirmed according to the target country and application environment.

Can you support distributor branding or private label?

Distributor branding, color preference, logo labels and market-specific nameplate requirements can be discussed before production. Private label details depend on order quantity, product type and artwork confirmation.

Get a Fast Quote for
CDD-15 Electric Pallet Stacker

Tell us your working conditions and quantity requirements. Our team will respond within 12 hours with a competitive price and full specification sheet.

Fast Response

We typically reply within 12 hours on business days.

No Obligation

Free quote with full specification and pricing details.

Direct Contact

sales@delingequipment.com ยท WhatsApp +86 186 3292 9428

Request a Quote

Fill in your requirements and we'll get back to you promptly.

Sending your inquiry...

Your information is kept private. We respond within 12 hours.

You May Also Like

Related Products

CPD25

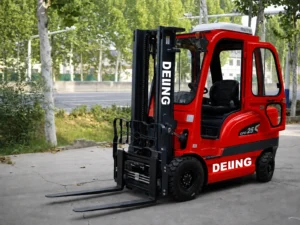

CPD-25 2.5 Ton Electric Forklift

The Deling CPD-25 is a 2.5 ton seated electric counterbalance forklift with a 3000 mm standard lift, 2320 mm turning radius, solid tires and AC drive control. It is designed for warehouses, factories, distribution centers and general pallet-handling operations.

Capacity: 2500 kg / 2.5 ton

View Details

CPD30

CPD-30 3 Ton Electric Forklift

The Deling CPD-30 is a 3 ton seated electric counterbalance forklift with a 3000 mm standard lift, 2480 mm turning radius, solid tires and AC drive control. It is designed for warehouses, factories, distribution centers and general pallet-handling operations.

Capacity: 3000 kg / 3 ton

View Details

CPD35

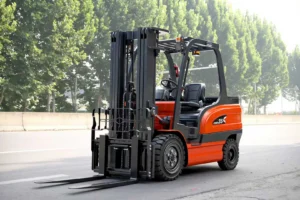

CPD-35 3.5 Ton Electric Forklift
